0-600Hz Three Axis Li-ion Battery Electromagnetic Vibration Tester Testing Machine
Introduction
Sine wave 0~600Hz three axis [vertical, Y axis, up and down] + [horizontal, X axis, left and right or (90 degrees) Z axis, front and rear] (split)
This testing machine is designed according to related battery testing standards, simulating the battery to be tested under certain vibration frequency conditions, and fixing the battery or battery pack to the vibration table.
Under the specified battery frequency mode, vibrate along the 3 directions perpendicular to each other of the battery sample, and the tested battery will not leak, deflate, rupture, fire, or explode.
It is a qualified product. This machine is easy to install, simple to operate, low noise, easy to maintain, no resonance structure, well-designed, and the airbag cushion can effectively isolate vibration.
Key Specifications
|
Function
|
Sine wave (half wave/full wave), frequency modulation, frequency sweep, programmable, frequency multiplication, logarithm, amplitude, maximum acceleration, time control, 485 communication interface, simple acceleration, simple fixed amplitude
|
|
Vibration table size
|
L500×W500×H10mm; L500×W500×H200mm
|
|
Vibration direction
|
vertical (Y) axis, horizontal (X) axis
|
|
Maximum test load
|
within the range of 0～100Kg/maximum excitation force 2000Kgf
|
|
Frequency modulation function
|
Arbitrarily adjust 1～600Hz, any frequency within the frequency range cannot exceed one of the 2 items (maximum acceleration <20G and maximum amplitude <5mm)
|
|
Sweep frequency function
|
Arbitrarily adjust 1～600Hz, (upper frequency band/lower frequency band/time range) can set the true standard frequency sweep back
and forth arbitrarily
|
|
Vibration machine power
|
2.2kw
|
|
Amplitude
|
Arbitrarily adjust the amplitude 0～5mm
|
|
Maximum acceleration
|
Arbitrarily adjust the maximum acceleration 0～20G (200m/s2)
|
|
Vibration waveform
|
Sine wave (half wave/full wave)/maximum sine wave excitation force 2000kgf
|
|
Time control
|
Any time can be set (unit: second)
|
|
Precision
|
The frequency can be displayed to 0.01Hz, and the precision is 0.1Hz
|
|
Cooling method
|
Natural air cooling
|
|
Temperature
|
-10℃～＋60℃
|
|
Humidity
|
10%～90%
|
|
Noise
|
≤60 decibels
|
|
Power supply
|
220V, 50/60Hz
|

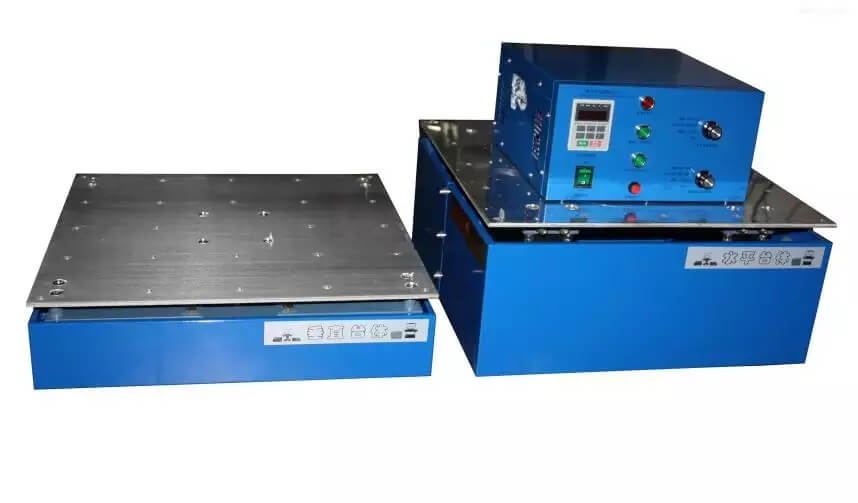

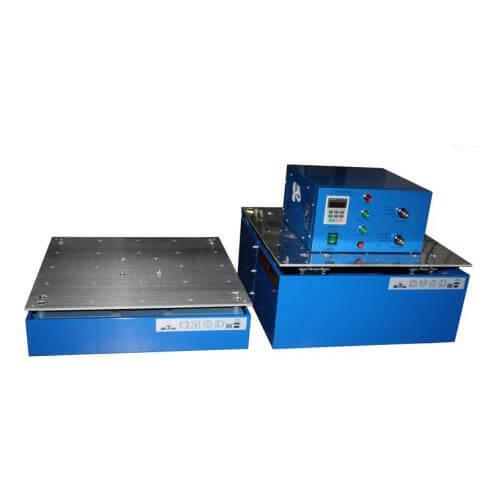

Picture for Reference
