Large Lab Ring Powder Pellet Press Die

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PMO
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

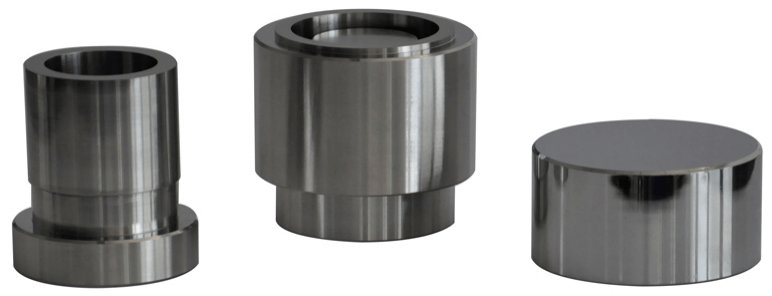

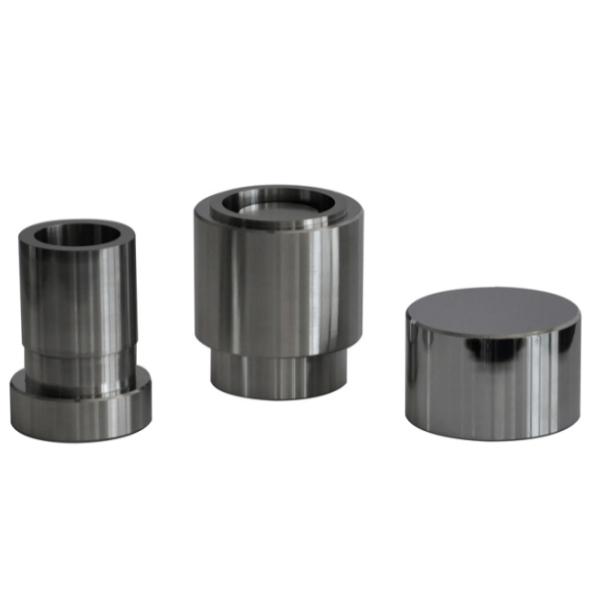

Large Lab Ring Powder Pellet Press Die



Ring Pellet Press Die



 Parameter

Model

LITH-PMO



Compressed sample shape



Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ30-10, Φ50-20mm(d)

Cavity depth

45mm(d)

Dimensions

Φ72*100mm, Φ88*120mm(D*L)

Mold weight

3.5kg, 5kg





Dimension diagram

Powder Pellet Press Die

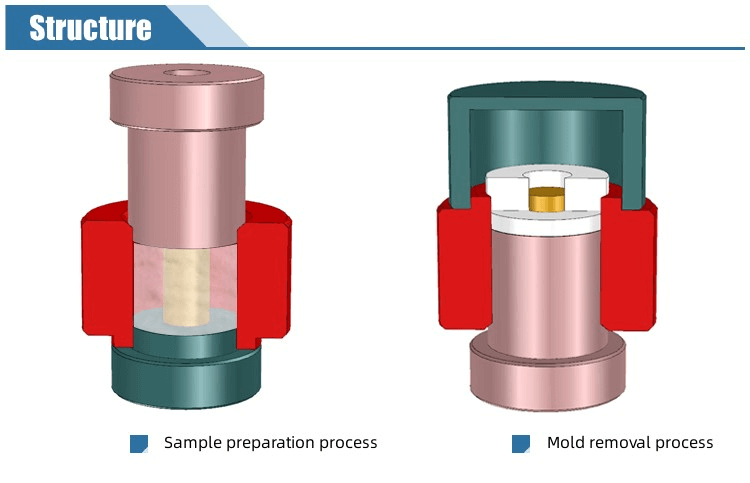

Schematic Diagram of Mold Operation

Powder Pellet Press Die

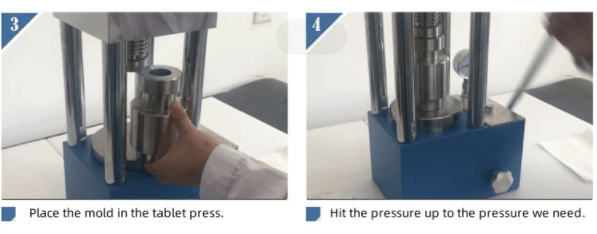

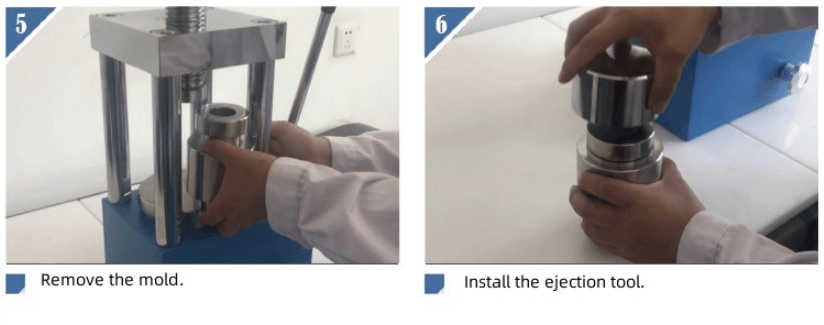

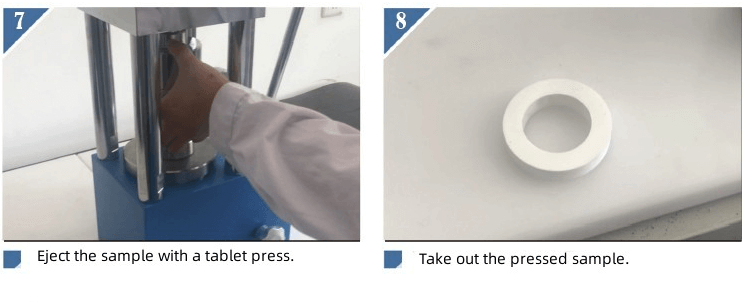

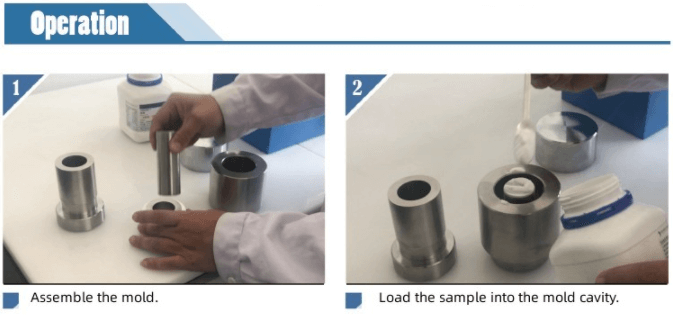

Mold sample preparation operation steps

Ring Pellet Press Die

Ring Pellet Press Die

Ring Pellet Press Die

Ring Pellet Press Die



Mold use and maintenance
