Lab Coating Machine /Electric Furnace
menu
banner
Products
Home Laboratory Press

Mold/Die

 Lab Spherical Powder Pellet Press Die

Spherical Press Die
Spherical Press Die

Lab Spherical Powder Pellet Press Die

Contact Person：Gilia Ding


Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna



  • Item no.:

    LITH-PMQ

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Lead Time:

    7 days

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited standard warranty
  • Product Detail

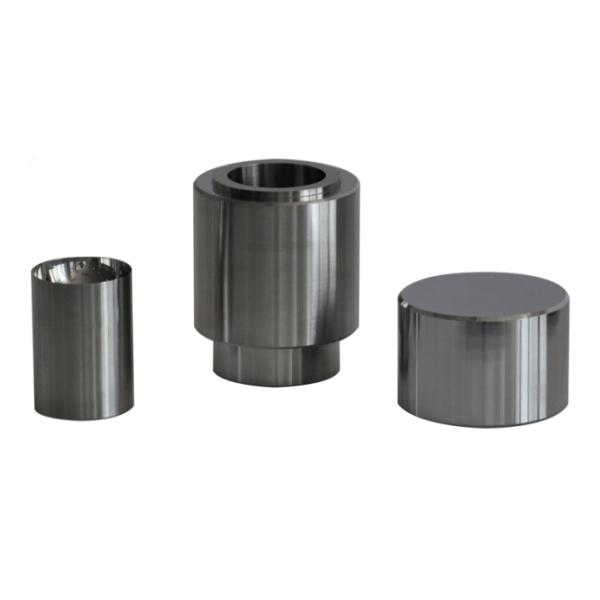

Lab Spherical Powder Pellet Press Die


Spherical Press Die



 Parameter

Model

LITH-PMQ



Compressed sample shape



Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ30、Φ40、Φ50mm(M)

Cavity depth

60mm(N)

Dimensions

Φ88*150mm(L*H)

Mold weight

5.8kg







Dimension diagram

Spherical Press Die

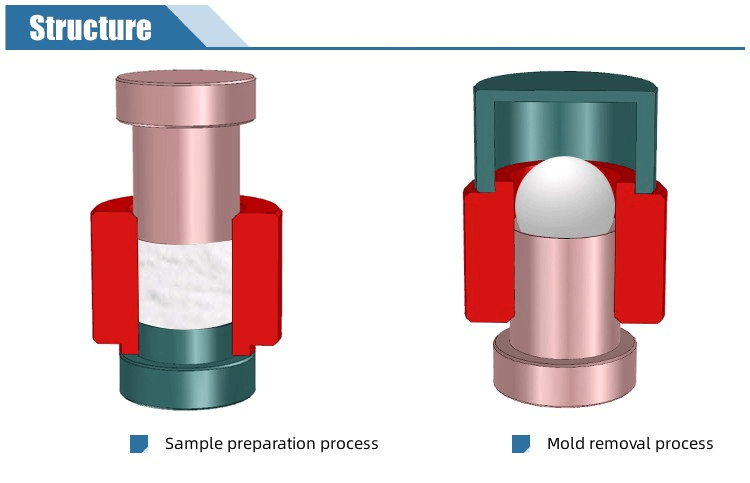

Schematic Diagram of Mold Operation

Powder Pellet Press Die

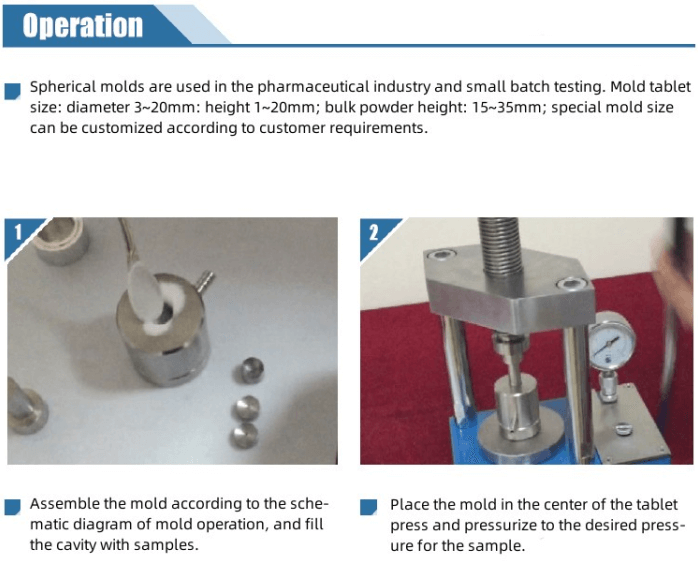

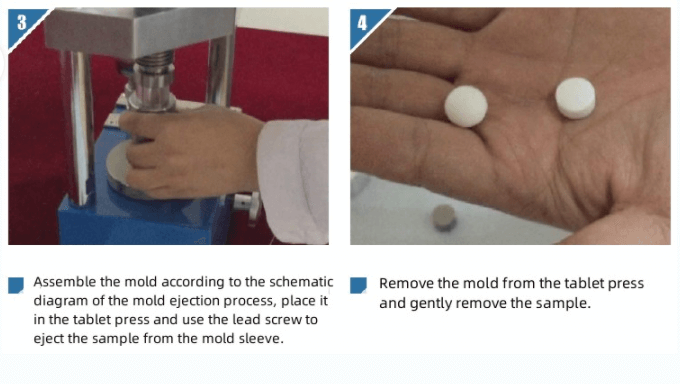

Mold sample preparation operation steps

Powder Pellet Press Die

Lab Spherical Press Die





Mold use and maintenance
