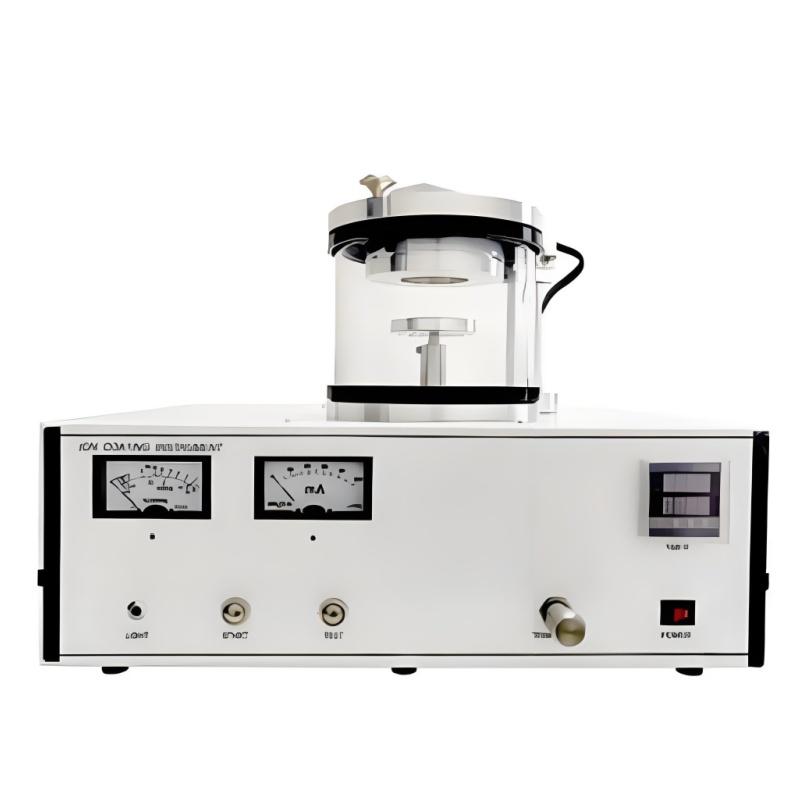

Lab Mini Auto PVD Ion Sputtering Coater For Carbon Coating

Model: Lith-JY-JS01-SEM Preparation

Overview

The Lith-JY-JS01  compact magnetron ion sputtering coater is designed for high-quality conductive coating (e.g., gold film) onSEM samples or material surfaces. Featuring stable performance and user-friendly operation, it employs cold magnetron sputtering technology, minimizing heat generation to protect sensitive samples.

---

Key Features

· Durable Metal Bellows – Corrosion-resistant and aesthetically refined vacuum pump tubing.

· Precision Adjustment – Sensitive micro-valve control with clear scale markings.

· High-Efficiency Vacuum Pump – Fast pumping speed (8 m³/h) with low noise, ideal for lab environments.

· Reliable Circuitry – Stable control board for consistent operation.

· Cold Sputtering – Near-zero temperature rise preserves sample integrity.

---

Technical Specifications

Parameter	Specification
Vacuum Chamber	Ø150 mm × 110 mm (H)
Sample Stage	Ø60 mm
Gold Target Size	Ø50 mm
Vacuum System	Pumping speed: 8 m³/h
Vacuum Monitoring	Custom Pirani gauge + analog dial
Exhaust Mode	Automatic
Sputtering Time	0–1000 sec (programmable)
Process Gas	Air or argon (dedicated inlet)
Compatible Target Materials	Au, Au/Pd, Pt, Pt/Pd, Cu, Ag, etc.
Dimensions	~450 × 330 × 235 mm (L×W×H)

---

Applications & Advantages

· SEM Sample Prep: Uniform conductive coatings enhance imaging accuracy.

· Material Science: Versatile metal deposition for thin-film research.

· User-Centric Design: Fast target switching, low maintenance, and lab-friendly noise levels.

Ideal for: Academic labs, quality control, and R&D requiring precision coating with minimal thermal impact.
