 Lab Vacuum Thermal Evaporating Carbon Coating Coater with

Max Evaporation Current of 100A





Thermal Evaporating Coater


Introduction

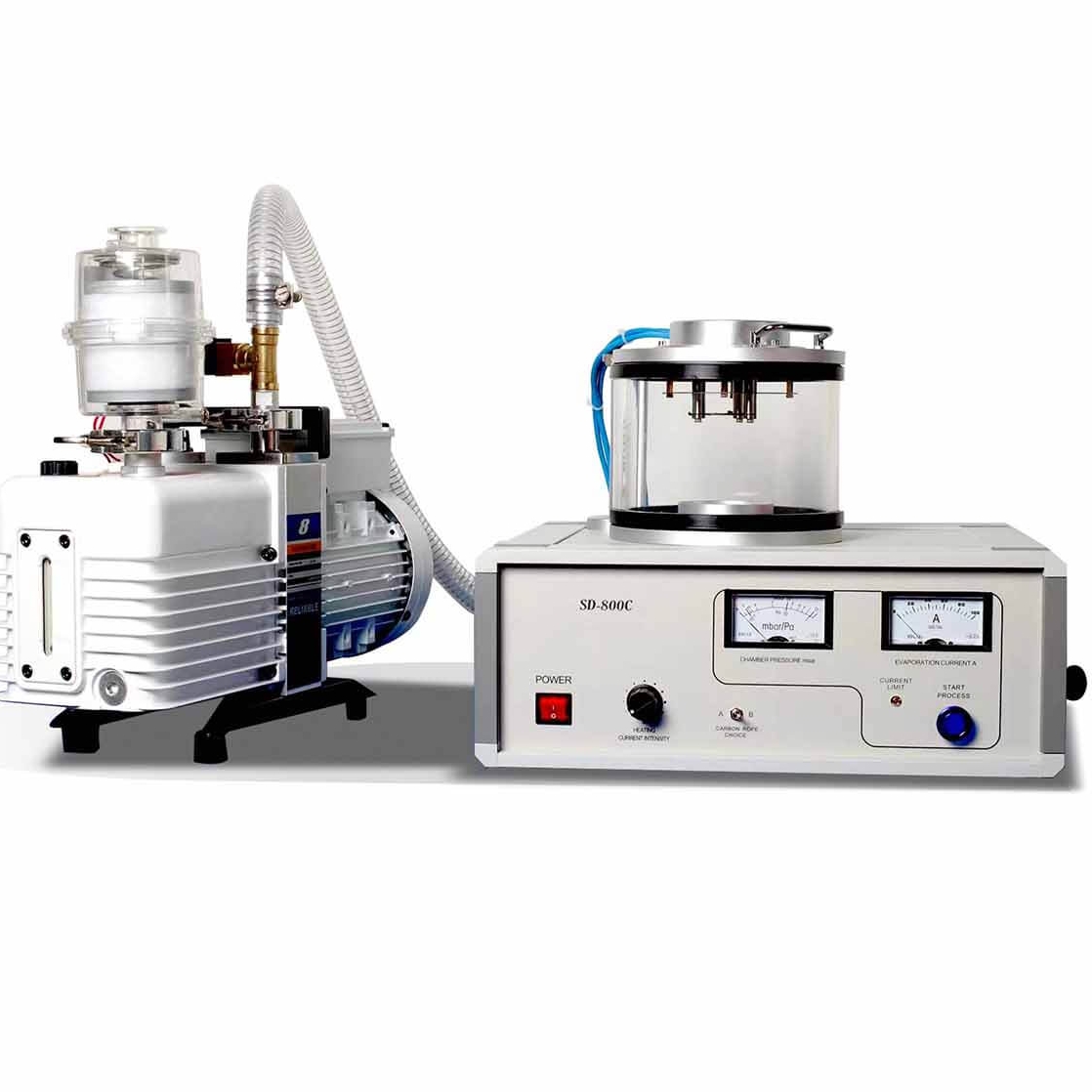

Thermal Evaporation Carbon Coater (SD800C Model) is ideal and designed for lab SEM sample preparation. SD800C Model carbon coater applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM.

Working vacuum pressure can be achieved quickly when using proper vacuum pump within 5 minutes. It is user friendly and easy to operate.

    Vacuum pump is included.



Parameter

Vacuum pump set

(Oil required) rotary vacuum pump

Rotary pumping speed

50 Hz : 8 /h (2.2 L/s)/ 60 Hz : 9.6/h 2.6 L/s)

Vacuum limit

2Pa

Max evaporation current

100A

Working pressure

6Pa -4 Pa

Vacuuming time

< 5 Min( 2Pa)

Vacuum measure

Measuring range from atmosphere to 2*10-2mbar

Chamber size

Φ150*120mm (height) scratch resistant quartz glass

Evaporation target source

Target material :carbon rope/target source:carbon rope

Operation method

Instruction Manual

Weight/size

45kg/340mm length x 390mm wide 300mm high

Power supply

AC 110V 60Hz or AC 220V 50Hz

Power consumption

<2000W

Warranty

One year limited warranty with lifetime product support
