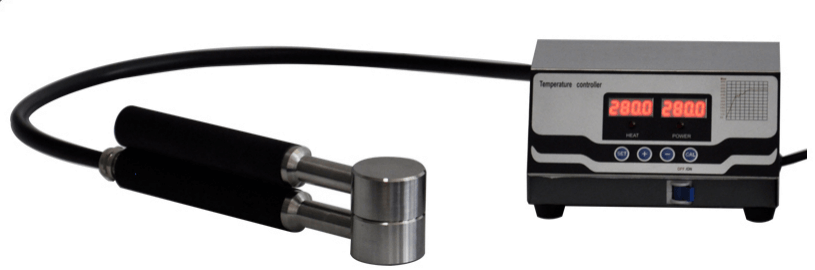

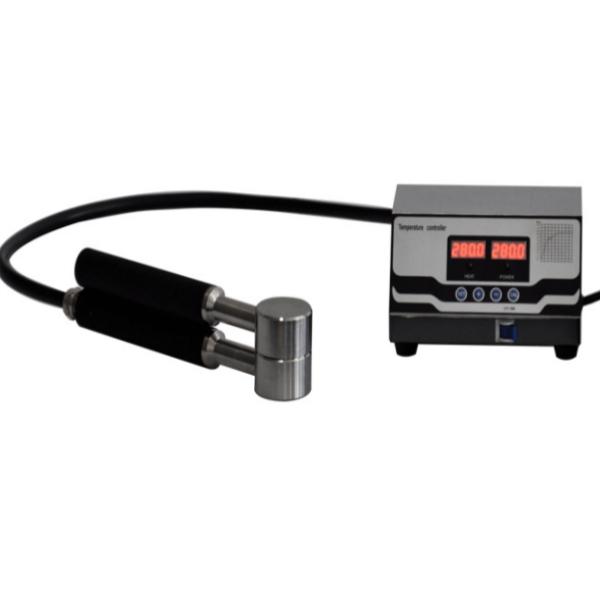

Lab Infrared Heating Plate Pressing Die
Parameter
|
Model |
LITH-PMH-600A |
|
Compressed sample shape |
|
|
Mold material |
alloy tool steel |
|
Sample size |
Φ50mm(d) |
|
Sample thickness |
15-100um (no quantitative loop) |
|
Dimensions |
200*60mm(D*H) |
|
Power supply |
200V/300W |
|

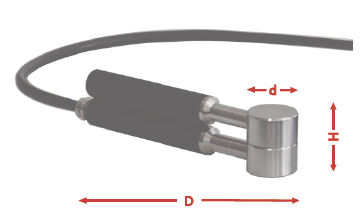

Dimension diagram |
|

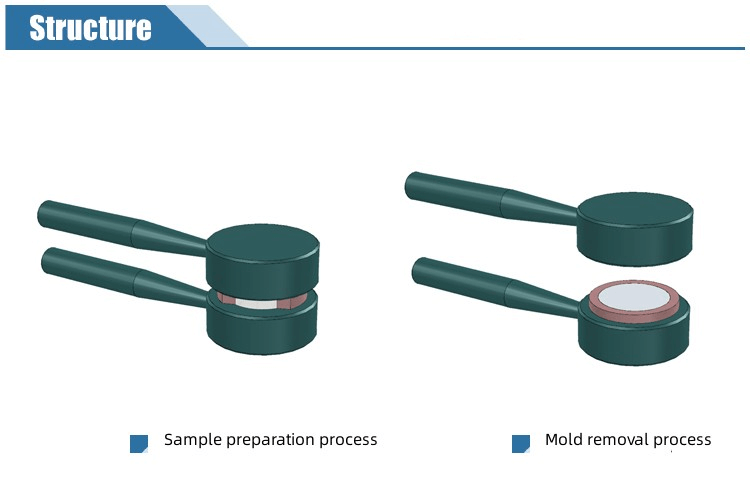

Schematic Diagram of Mold Operation

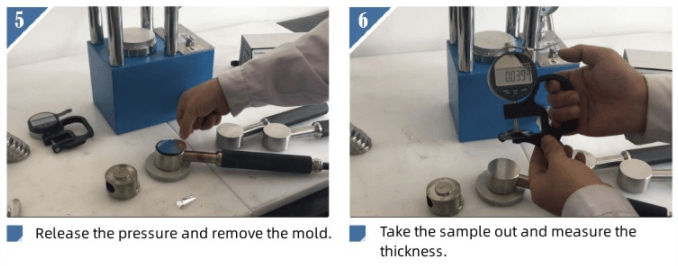

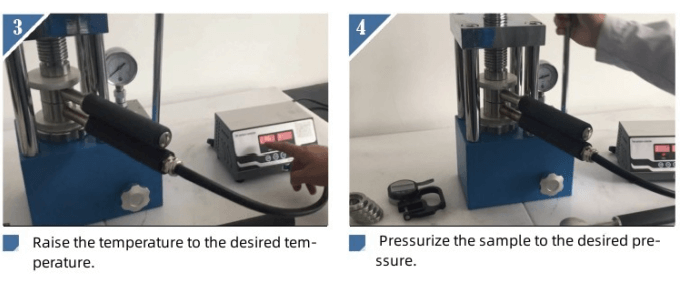

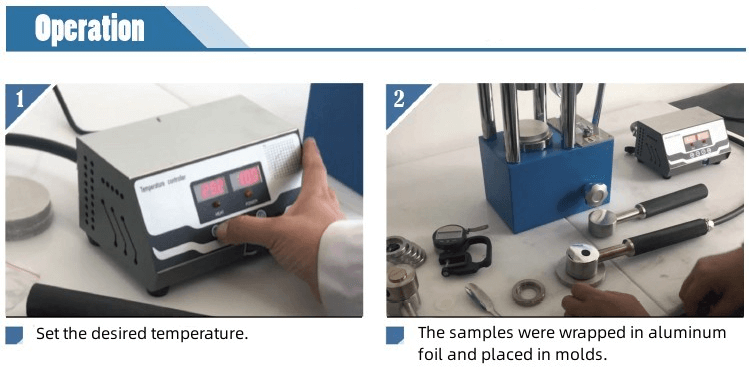

Mold sample preparation operation steps
Mold use and maintenance
