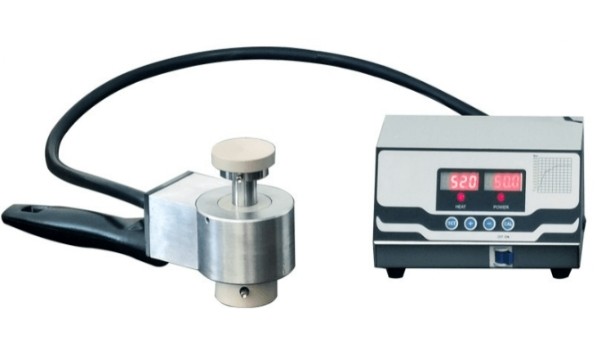

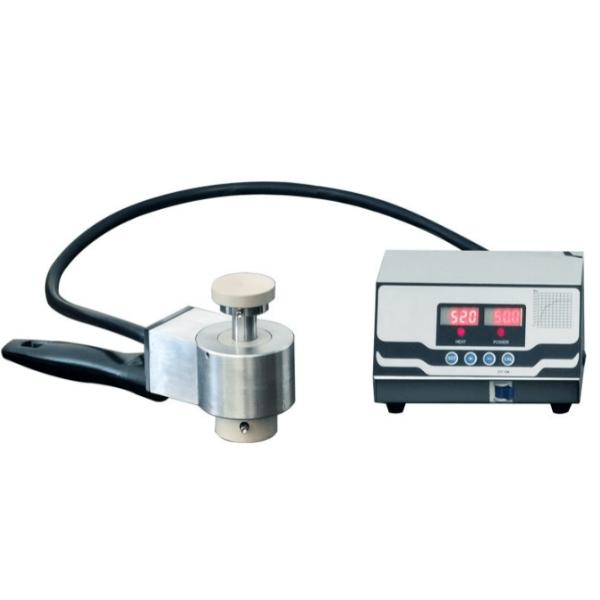

Lab Heated Battery Stress Test Mold
Parameter
Model
LITH-PCH-DJ
Compressed sample shape
Heating temperature
Room temperature -200℃
Mold material
PEEK insulating material, can be used for battery testing
Indenter hardness
HRC60-HRC62
Sample size
Φ10, Φ13, Φ15, Φ20, Φ30, Φ40mm(M)
Cavity depth
45mm(N)
Dimensions
Φ78*138mm, Φ90*138mm(L*H)
Power supply
220V/500W
Mold weight
2.7kg
Dimension diagram

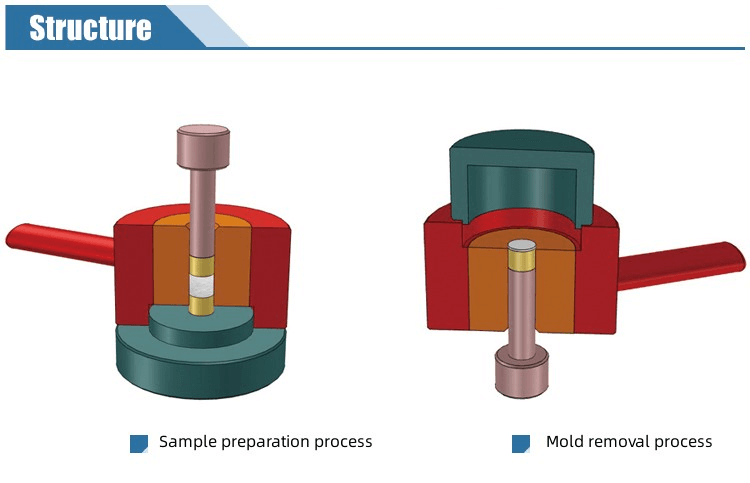

Schematic Diagram of Mold Operation

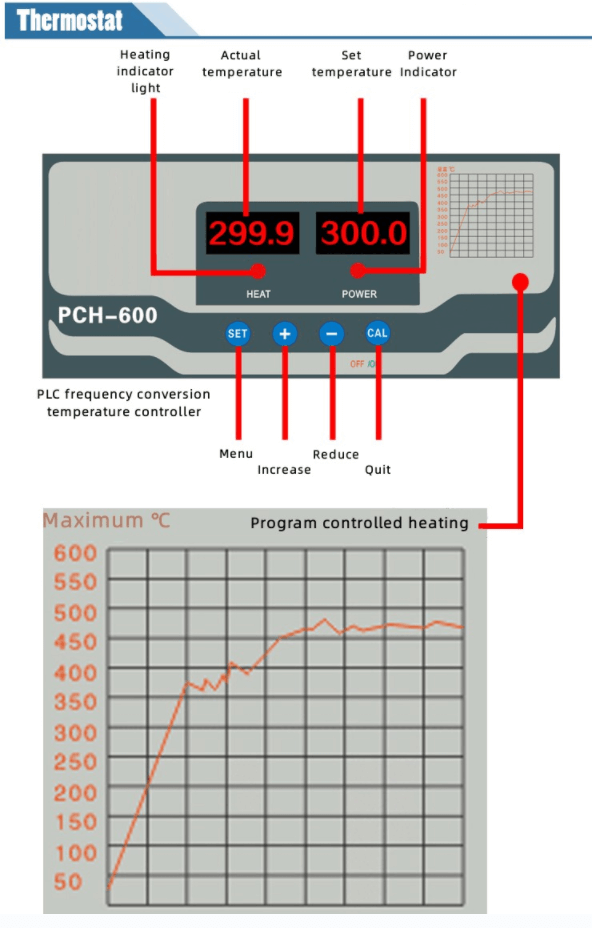

Temperature Controller

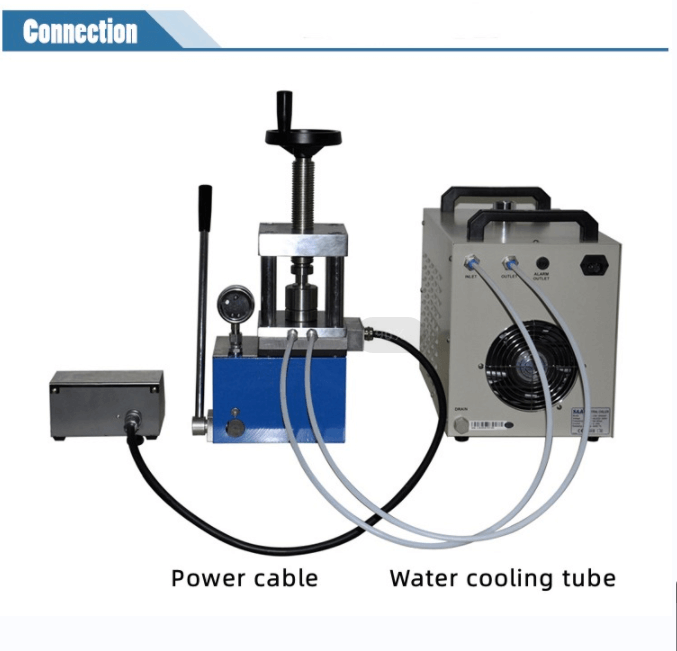

Diagram of pipeline connection

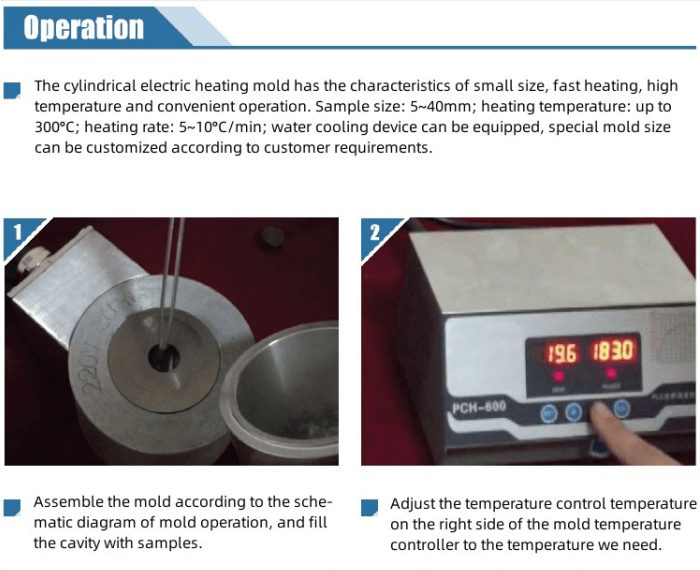

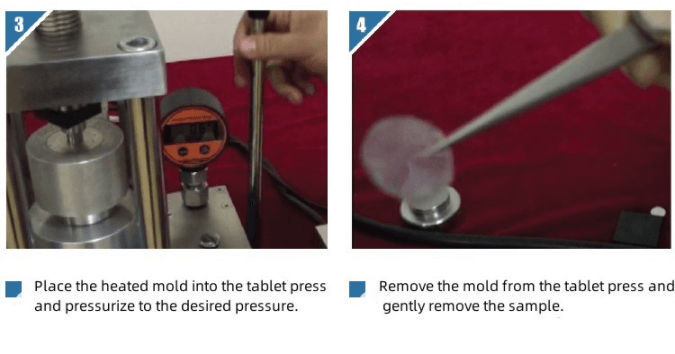

Mold sample preparation operation steps
Mold use and maintenance
