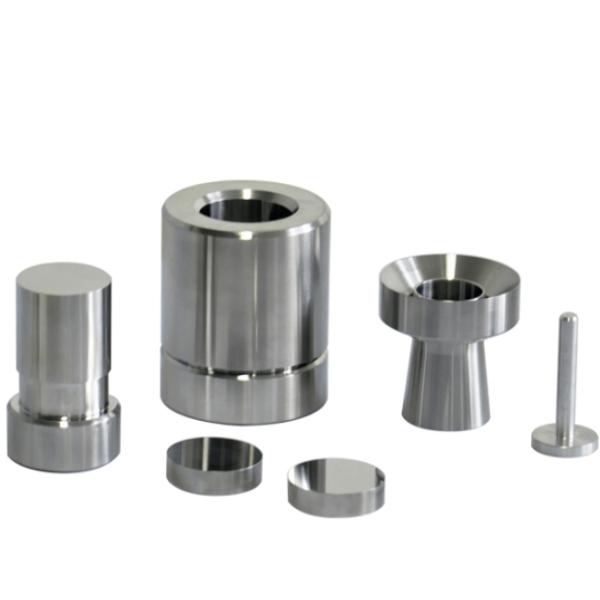

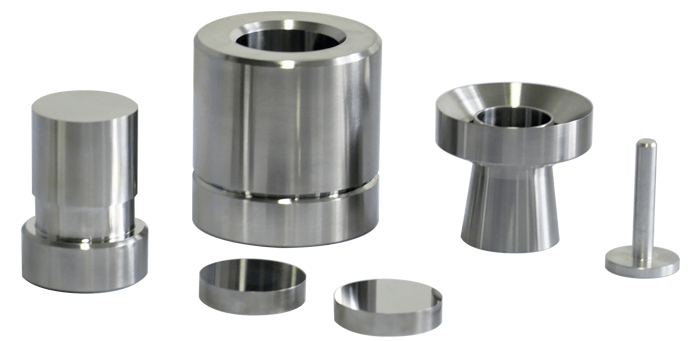

Lab Fluorescent Special Boric Acid Pellet Pressing Mold



Lab Boric Acid Press Mold


Parameter

Model

LITH-PMP




Compressed sample shape




Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ32, Φ40mm(M)

Cavity depth

45mm(N)

Dimensions

Φ73*133mm(L*H)

Mold weight

3.2kg










Dimension diagram

Lab Boric Acid Press Mold

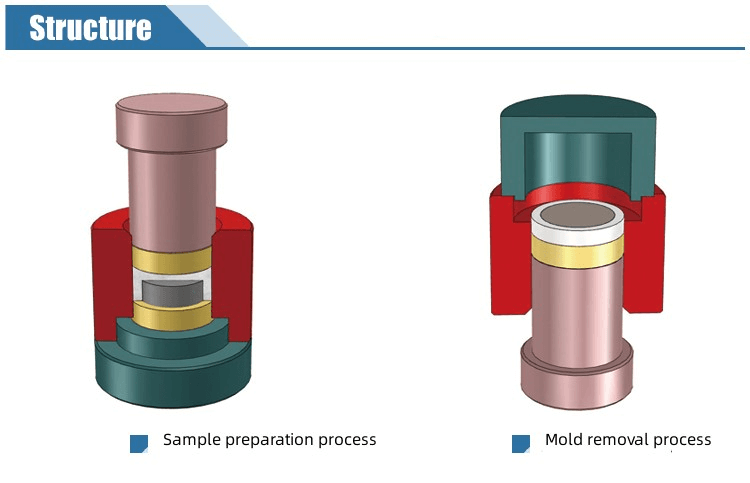

Schematic Diagram of Mold Operation

Pellet Pressing Mold





Mold sample preparation operation steps

Boric Acid Pellet Press Mold

Fluorescent Pellet Pressing Mold






Mold use and maintenance
