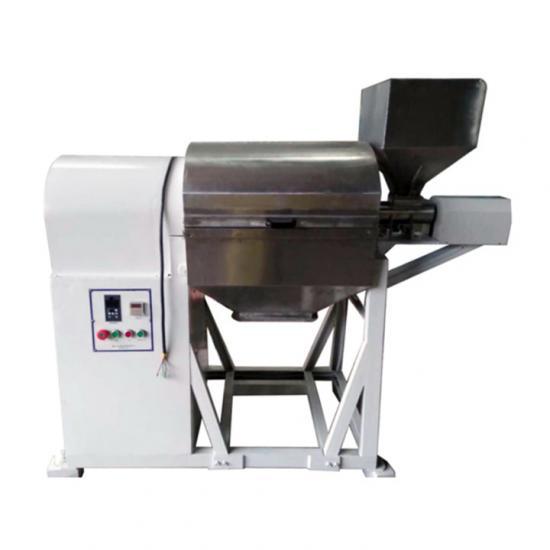

Lab 60L Stainless or Carbon Steel Screening and Grinder Machine

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-MS-60
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab 60L Stainless or Carbon Steel Screening and Grinder Machine




1. Product introduction:

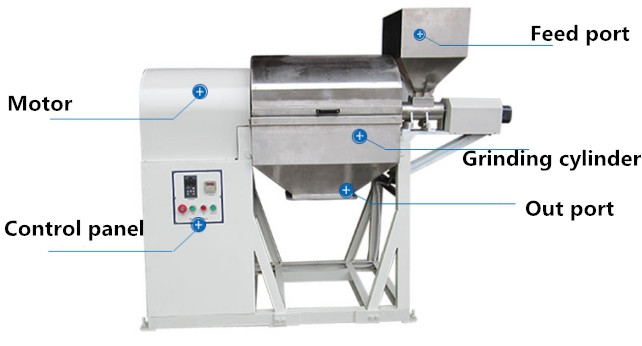

The sieving machine is composed of a ball mill roller, a screen system, a feeding system, and a receiving system. The material can be sieved while being smashed by the ball mill. When the material reaches the particle size, it is sieved through the sieve system, and the sieved material is collected by the material collected system, and the material is continuously fed through the feeding system. The screen mill is particularly suitable for materials that need to be crushed to a specific particle size. For example, if you want to obtain a specific range, such as 200-300 mesh materials, this equipment is very suitable. In addition, it greatly improves the grinding efficiency and reduces unnecessary repeated ball milling. It can be widely used in electronic materials, magnetic materials, biomedicine, non-metallic minerals, new materials and other industries.



2. Principle of Grinding and Screening Machine:

When the grinder is working, the grinding medium and the material in the cylinder are raised to a certain height with the rotation of the cylinder. Due to the effect of gravity, they are separated from the cylinder wall and fall along the parabola. The impact of the material on the grinding medium and the rolling and sliding of the grinding medium are caused It is crushed by friction and shearing.



3.Equipment technical parameters:

Model

MS-60

Ball mill jar volume

60L

Material of jar

Stainless steel or carbon steel

Speed of jar

10-58r/min

Maximum load per jar

The material and grinding balls shall not exceed two thirds of the volume

Feed granularity

Soil material≤10mm, and other materials≤3mm

Mode of material pouring

Continuous production

Discharging granularity

60-300mesh

Height of discharge outlet from ground

580mm

Feeding way

Set timing feeding according to grinding speed

Rotation speed

20-70rpm

Speed adjustment mode

Frequency control

Drive mode

Reduction gears

Working voltage

380V50HZ(three-phase)

Motor power and frequency conversion power

Main motor 2.2KW (Motor brand is Dedong, frequency converter brand is Delixi)

Feed motor 120W

Maximum continuous working time

72 hours (timer 0-9999h)

Programming controller

Inverter control, you can set the total time, forward time, reverse time, pause time

External reference size

1700 (L) *650 (W) *1400 (H)

Reference weight of machine (KG)

About 350

Note: other special requirements can be customized



4.. Equipment configuration list and details of main accessories


1. Device configuration list

Name

Model

Qty

Grinding and screening machine

MS-60

1

Manual

MS-60

1



2.Details of main accessories

Number

Name

Brand

1

Motor

DEDONG

2

Frequency converter

DELIXI

3

Reducer

Ou Yuda

4

Bearing

HRB

5

Electrical parts

Chint Brand

6

Sieve

FORRJASS





5. Product features:

1. The machine runs smoothly, with high efficiency and energy saving, and low noise;

2. It can be used for dry and wet grinding, can process materials of various hardness, and can be used for coarse and fine grinding or mixing of materials;

3. With automatic unloading model, the material and ball can be separated automatically, and the discharge is convenient;

4. The protective jacket is adopted, with high purity of materials and low pollution;

5. Anti-wear, high grinding efficiency;

6. Different materials such as alloy steel, stainless steel and carbon steel can be selected, and the model can be selected from 5 to 500L according to the user's output;

7. The equipment has a low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, and low loss;

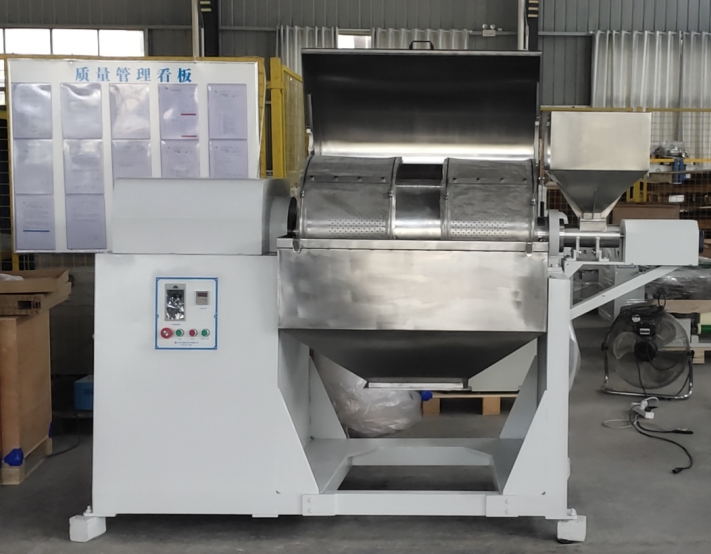

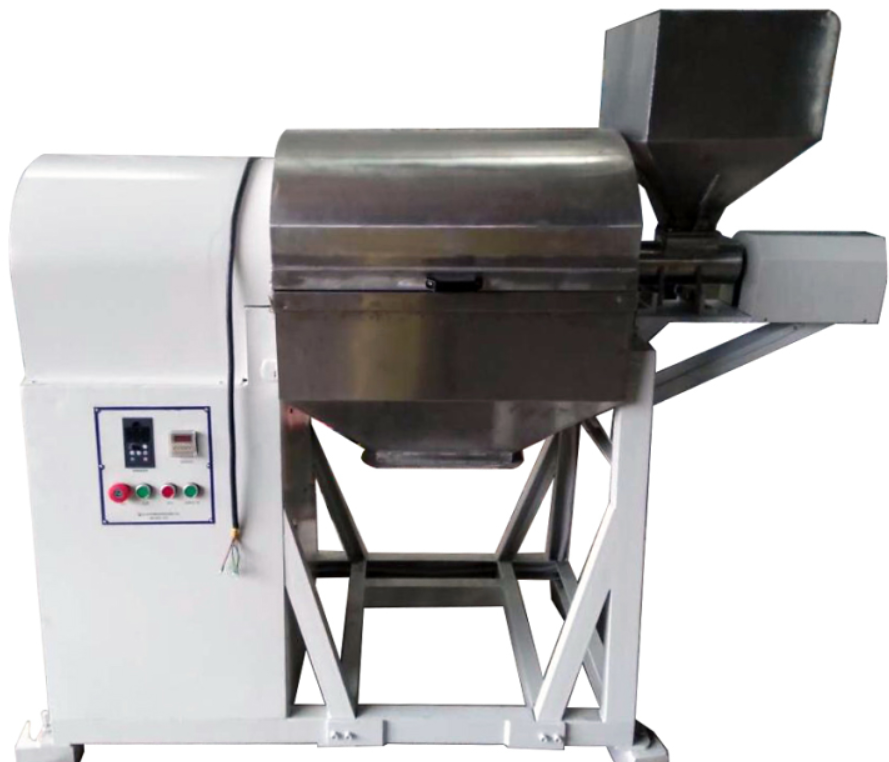

6. Equipment reference pictures;
