Hybrid PVD CVD Coater for Multi Layer Film Deposition
VTC-16--PW is a compact powder PVD coater, which consists of 2" water cold magnetron sputtering head and vibration stage. The particles will jump on the vibration stage during the coating and form a core-shell structure. The DC magnetron sputter is suitable for coating for metallic materials. RF power source is optional for non-conductive material or carbon. The coater will be useful for preparing special powder for 3D printing and solid-state electrolyte powders.
SPECIFICATIONS
|
Power
|
-
208 - 240VAC, 50/60Hz, single phase
-
3000 W
|
Furnace
|
-

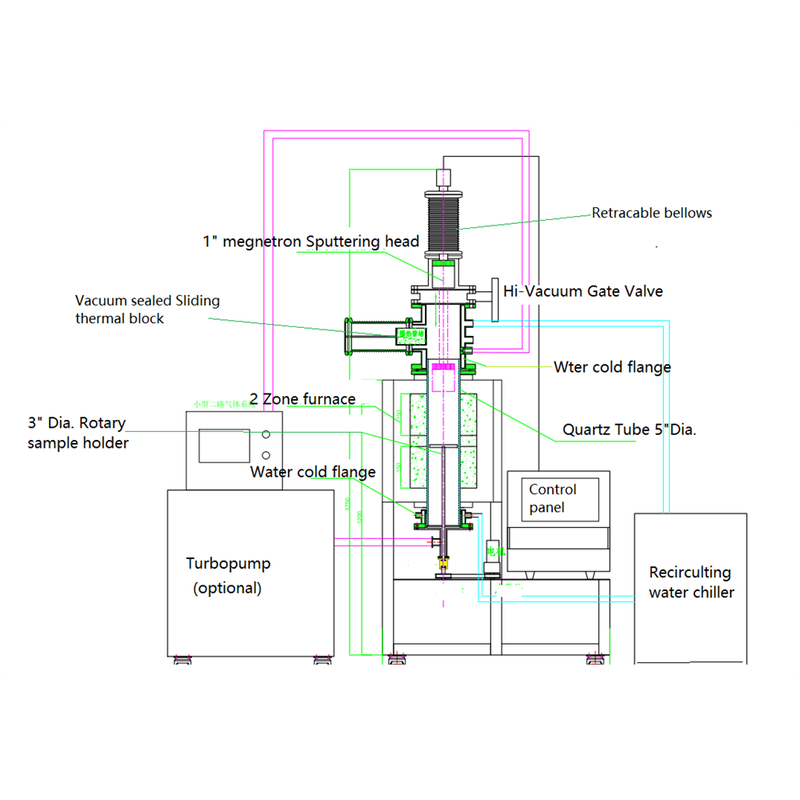

The Whole PCV/CVD system is integrated into the compact 1100°C Single Zone 5" Verticle Tube Furnace (click Pic. left for detail specs)
|
Sputtering Head
|
-
Click Picture left for detail specs
-
1" flexible magnetron sputtering head with water cooling jacket is included
-
The distance between the sputtering head and the sample stage is adjustable from 60 - 100 mm
-
One Water Cold Recirculating Water Chiller 16 L/min Flow is included for cooling sputtering head
. . .  .
|
Rotary Sample Stage
|
-
One 3" Dia. the rotary sample holder is in installed on the bottom flange of the vertical tube furnace
-
Rotation speed is adjustable: 1 - 10 rpm for uniform coating
|
|
Control Panel
|
-
6" color touch-screen control panel with PLC integration for easy operation
-
One panel for all parameters monitor and control: vacuum, current
|
|
Ultimate Vacuum Pressure
|
-
Built-in KF25 vacuum port
-
The system requires an Ar gas tank with a pressure regulator (not included)
-
< 1.0E-2 Torr by Vane vacuum pump (not included) for Au, Ag, Pt, Cu, Mo targets (not sensitive to air)
-
< 1.0E-5 Torr by Turbomolecular pump (not included) for Al, Mg, Li, Lr, Ti, Zn targets (sensitive to air)
-
The lowest vacuum may reach < 4.0E-6 Torr by pumping overnight and baking

|
|
Gas Atmosphere
|
-
One needle valve installed to allow Ar gas inlet to achieve better plasma coating
-
The system requires an Ar gas tank with the pressure regulator (not included)
|
|
Target
|
-
One 1" Copper target is included for testing, target size: 1" Dia. x 2.5mm
-
It also can coat Ag, Al, Cr, Ni, Pt, Ti, Sn, Li, Mg, etc. almost every kind of metallic material
-
Warning: Aluminum, Chromium or Nickel can be coated by this machine, but please view the Recommend Coating Method in the below target link
-
Please using RF Plasma Magnetron Sputtering coater for coating non-conductive materials and carbon
|
|
Net Weight
|
|
Compliance
|
-
CE approval
-
NRTL (UL 6100) certification is available upon request at an extra cost, please contact our sales representative for a quote
|
