Benchtop Ultrasonic Spray Coating Machine Equipment for Thin Film

Product Overview

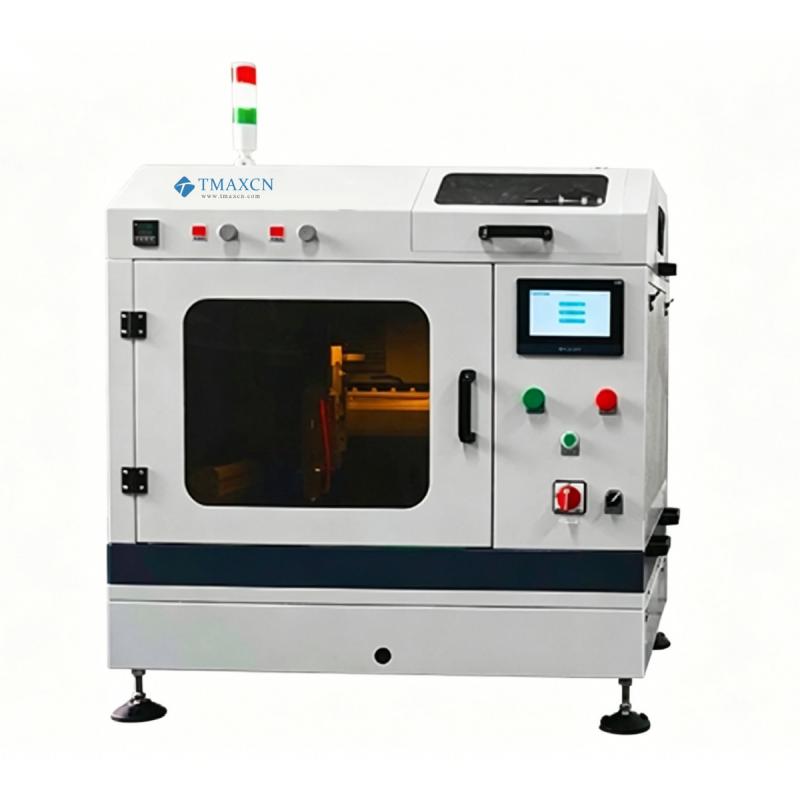

The CF03 Ultrasonic Spray Coating System is a compact, benchtop coater compatible with spin-coating units, delivering thinner, more uniform, and highly controllable thin-film coatings.

Key Features

· Integrated systems: ultrasonic spray, carrier gas, heated stage, vacuum adsorption, exhaust, and laser alignment.

· Compatible with full-range ultrasonic nozzles.

· Ideal for small to medium-area thin-film preparation and spray pyrolysis applications.

· Widely used in precision coating industries.

Primary Applications

Advantages

✔ R&D and small-batch production compatible
✔ Compact benchtop design (easy to relocate)
✔ High material utilization (up to 95%)
✔ Uniform & stable coatings (±5% thickness variation)
✔ Effective coating area: 150mm × 150mm

Technical Specifications

Performance Characteristics

· Ultra-thin films (as low as tens of nanometers)

· Precise flow control (spraying at ultra-low rates)

· High thickness accuracy

· >95% liquid utilization rate

· Clog-resistant nozzles

· Lab-to-production scalability

· Repeatable, reliable results

Basic Parameters
