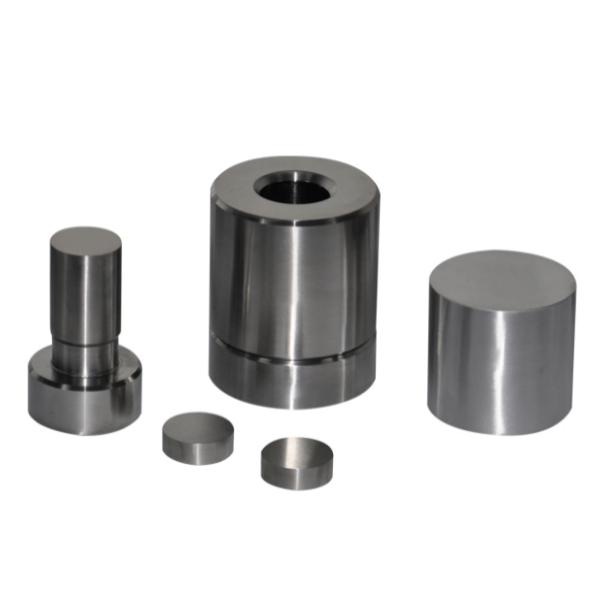

Φ71-100mm Lab Ordinary Cylindrical Punch Press Die

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PMY-F
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

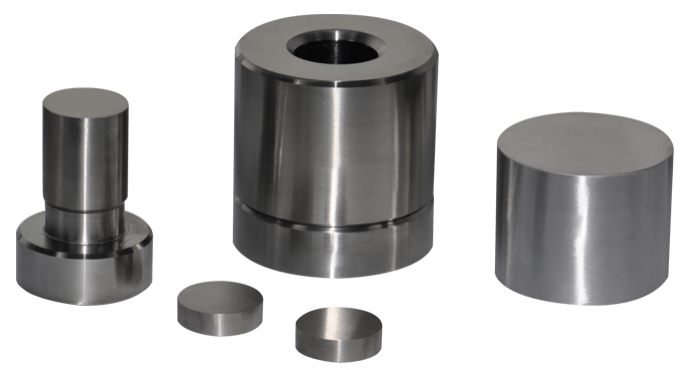

Φ71-100mm Lab Ordinary Cylindrical Punch Press Die


Punch Press Die


Parameter

Model

LITH-PMY-F



Compressed sample shape



Mold material

Alloy tool steel:Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ80Φ90Φ100mm(M)

Cavity depth

65mm(N)

Dimensions

Φ118*150、Φ128*180、Φ138*180mm(L*H)

Mold weight

11.5kg、14kg、20kg






Dimension diagram

Cylindrical Press Die




Schematic Diagram of Mold Operation

Cylindrical Press Die




Mold sample preparation operation steps

Lab Cylindrical Press DieLab Cylindrical Press Die




Mold use and maintenance
