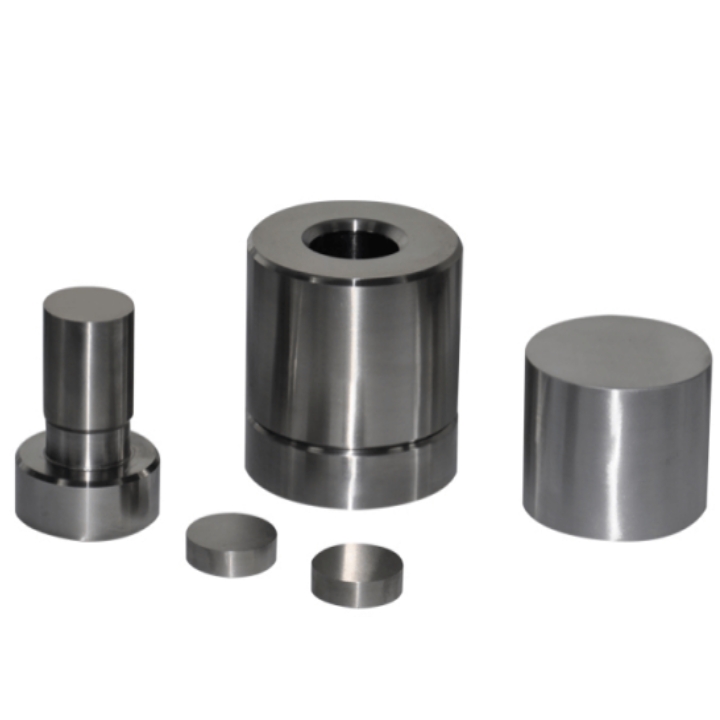

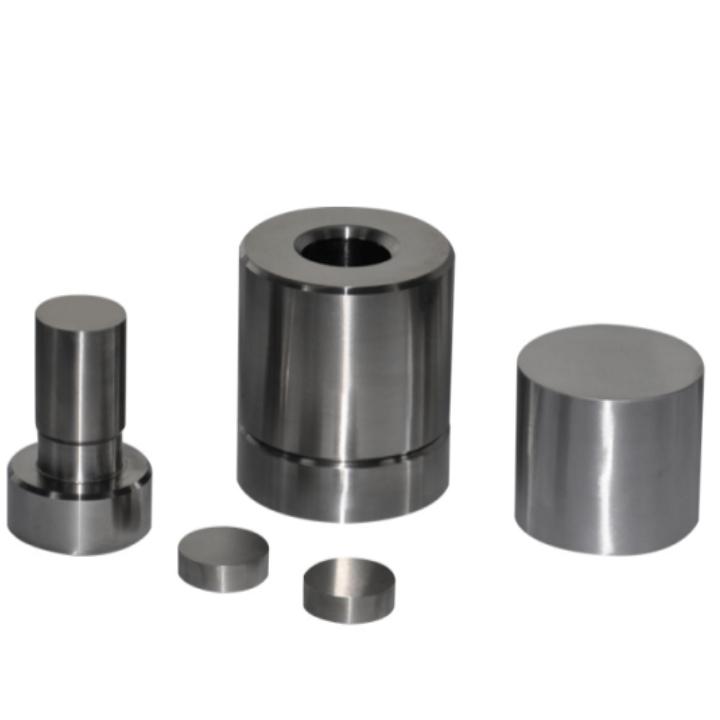

Φ41-100mm Ordinary Cylindrical Pressing Mold


Cylindrical Press Die


Parameter

Model

LITH-PMY-E



Compressed sample shape



Mold material

Alloy tool steel:Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ50、Φ60、Φ70mm(M)

Cavity depth

55、60、65mm(N)

Dimensions

Φ88*150、Φ98*180、Φ108*180mm(L*H)

Mold weight

5.1kg、7.3kg、9kg






Dimension diagram

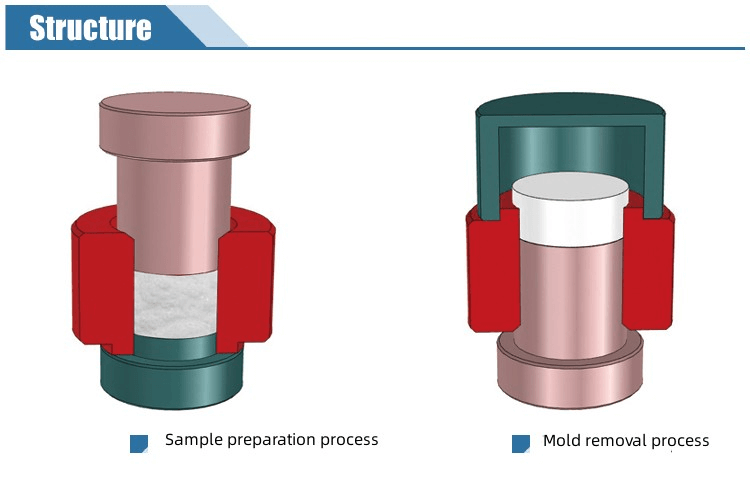

Schematic Diagram of Mold Operation

Pressing Mold

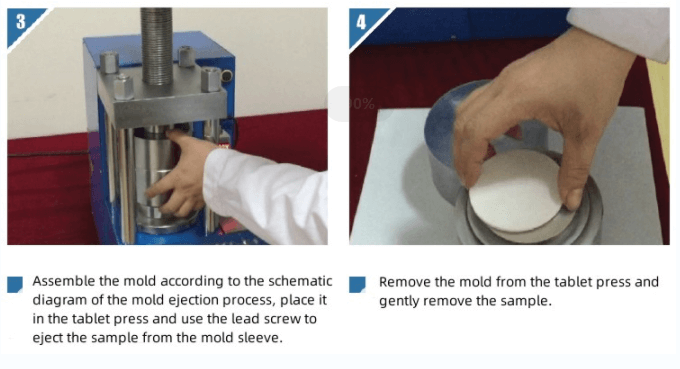

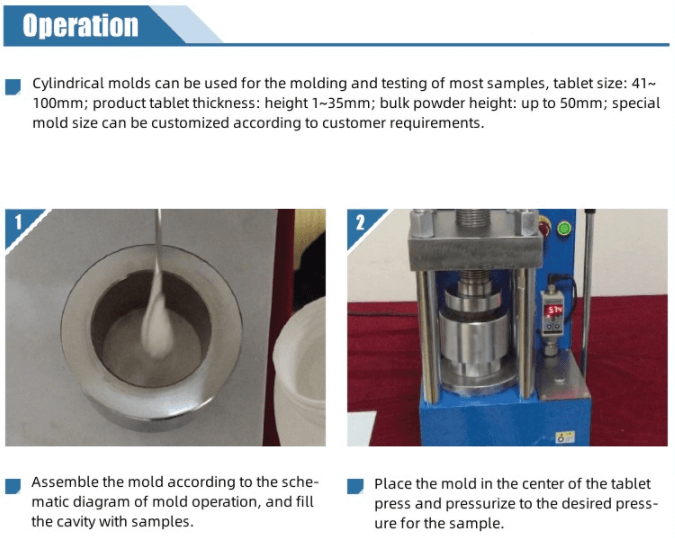

Mold sample preparation operation steps

Φ41-100mm Cylindrical Press MoldΦ41-100mm Cylindrical Press Mold

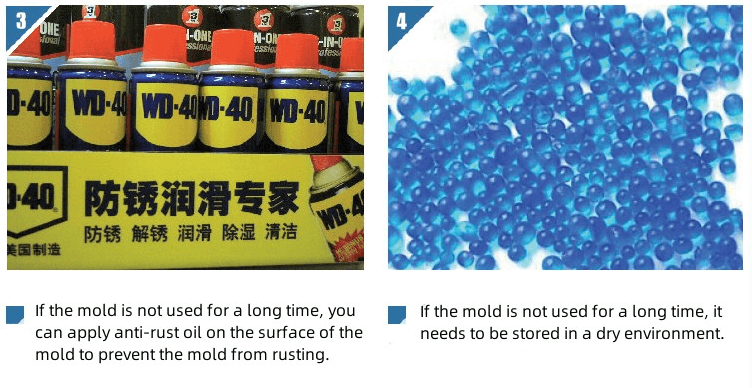

Mold use and maintenance
