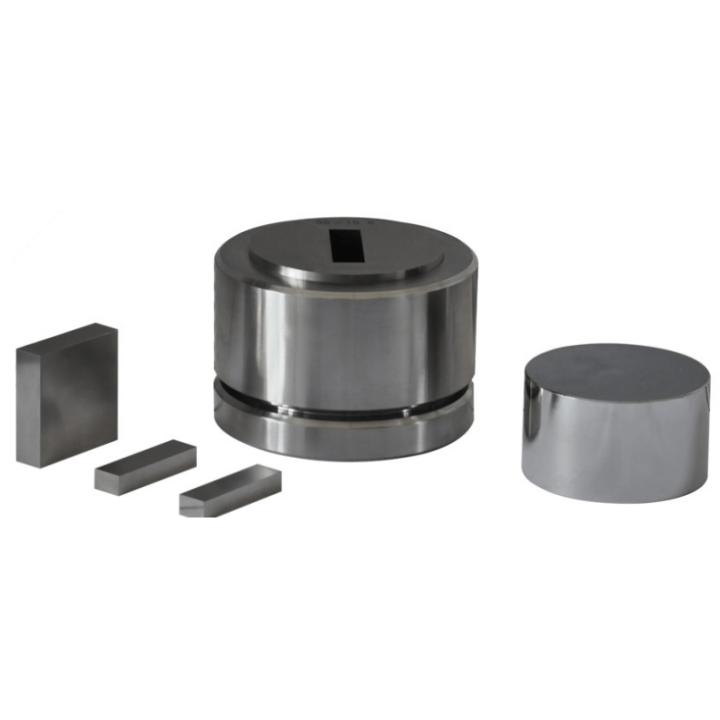

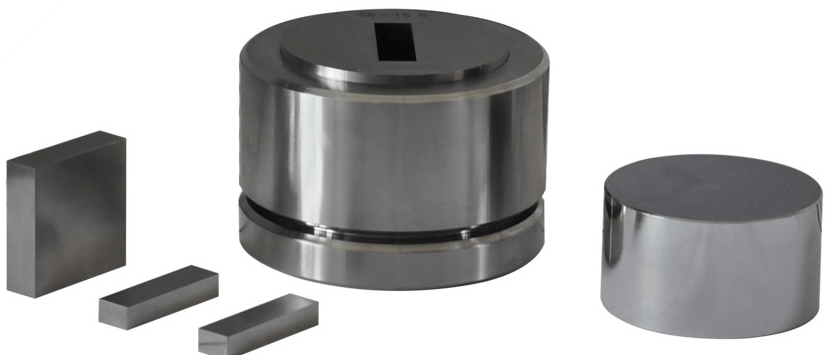

3-60mm Lab Square Open-flap Hydraulic Press Die
Parameter
|
Model |
LITH-PMK-FD |
|

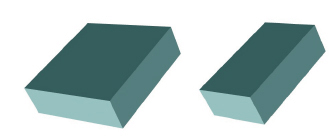

Compressed sample shape |
|
|
Mold material |
Alloy tool steel：Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
50*50, 60*60mm(M) |
|
Cavity depth |
55mm(N) |
|
Dimensions |
Φ127*150mm, Φ153*150mm (L*H) |
|
Mold weight |
20kg、30kg |
|
Dimension diagram |
|

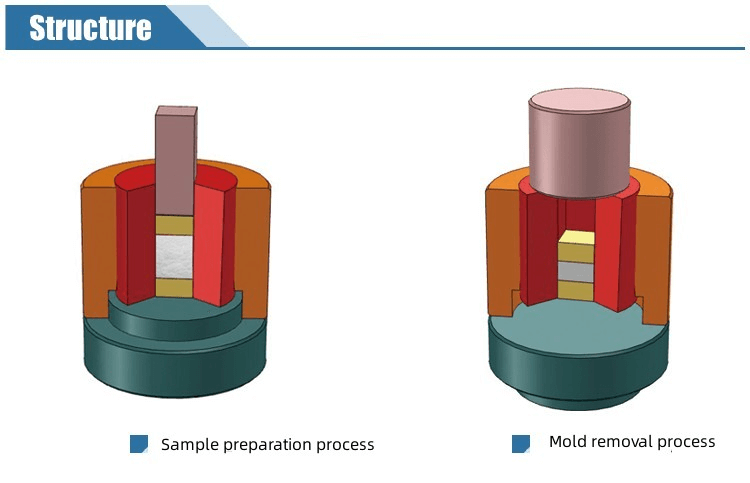

Schematic Diagram of Mold Operation

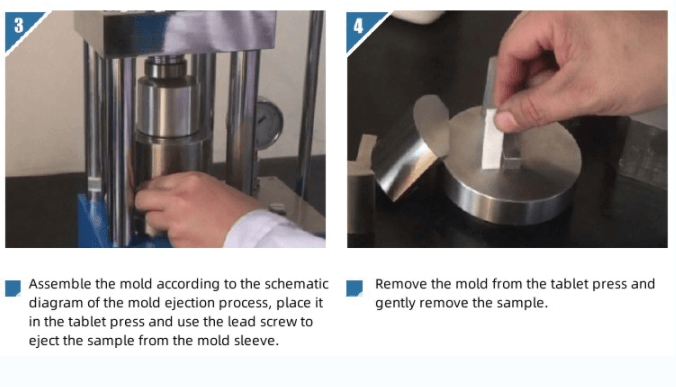

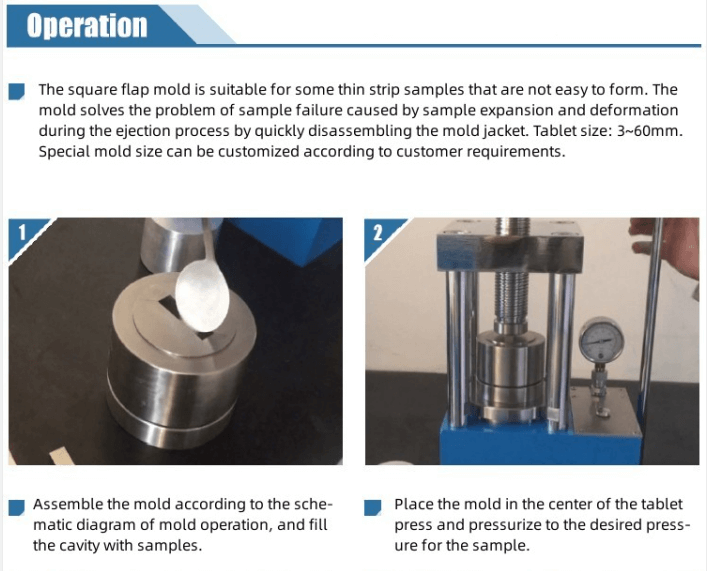

Mold sample preparation operation steps
Mold use and maintenance
