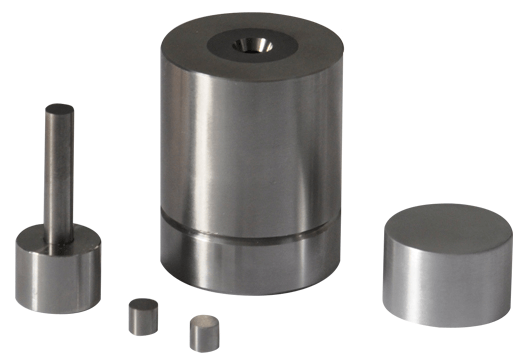

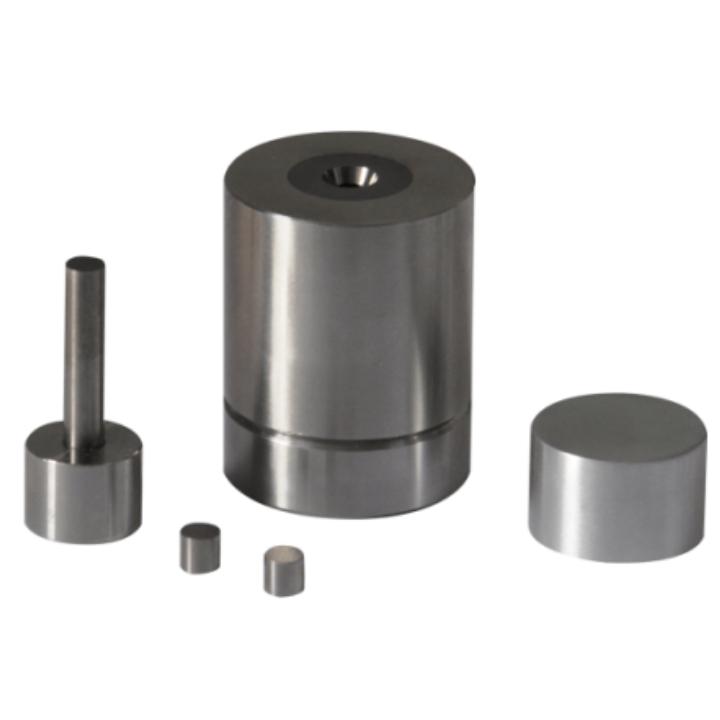

Φ3-10mm Lab Tablet Press Carbide Cylindrical Mold
Parameter
|
Model |
LITH-PMW-A |
|
Compressed sample shape |
|
|
Mold material |
Carbide YT15 |
|
Indenter hardness |
HRC85-HRC90 |
|
Sample size |
Φ3, Φ4, Φ5, Φ6, Φ8, Φ10mm(M) |
|
Cavity depth |
30mm(N) |
|
Dimensions |
Φ43*93mm(L*H) |
|
Mold weight |
0.78kg |
|
Dimension diagram |
|

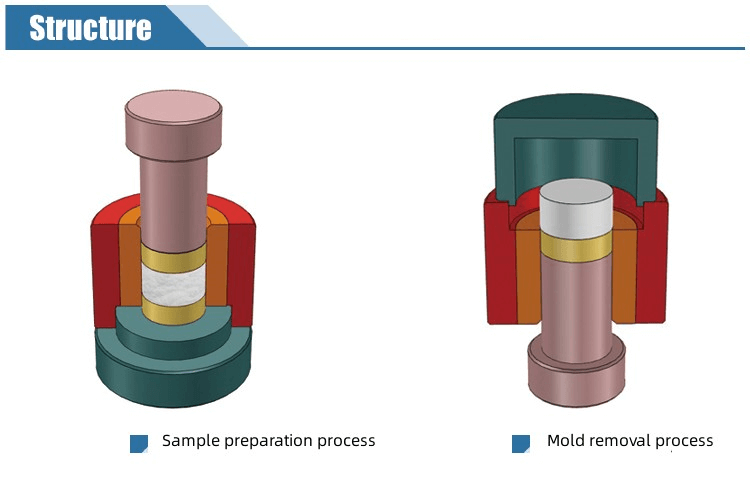

Schematic Diagram of Mold Operation
Mold sample preparation operation steps
Mold use and maintenance
