 Φ21-40mm Round Open-flap Hydraulic Press Mold

Round Open-flap Mold
Round Open-flap Mold

Φ21-40mm Round Open-flap Hydraulic Press Mold

Contact Person：Gilia Ding


Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna



  • Item no.:

    LITH-PMK-YC

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Lead Time:

    7 days

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited standard warranty
  • Product Detail

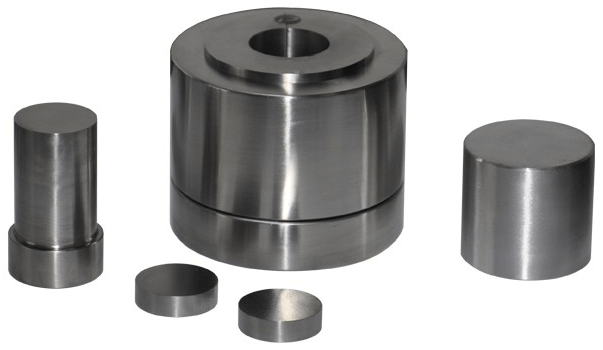

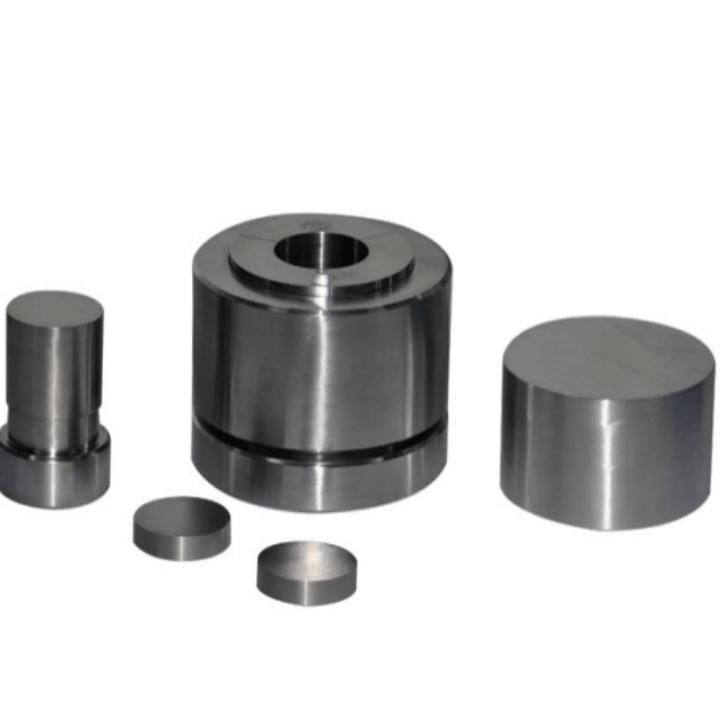

Φ21-40mm Round Open-flap Hydraulic Press Mold


Round Open-flap Mold


Parameter

Model

LITH-PMK-YC



Compressed sample shape



Mold material

Alloy tool steel Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Φ30、Φ40mm(M)

Cavity depth

50mm(N)

Dimensions

Φ73*133、Φ95*133mm(L*H)

Mold weight

3.8kg、6.3kg






Dimension diagram

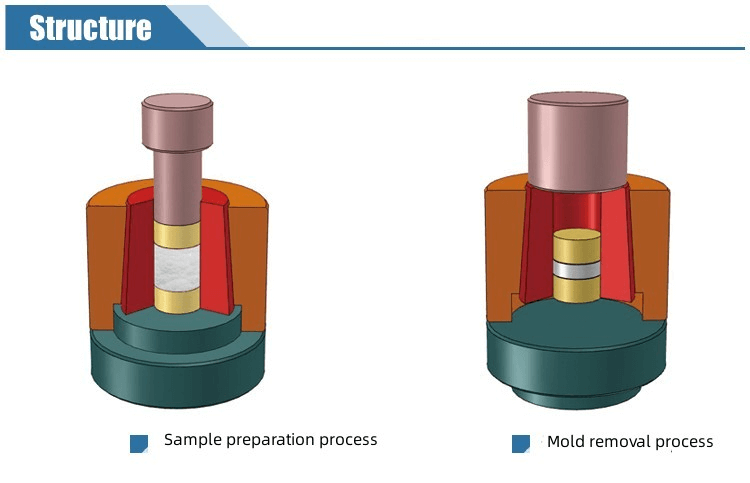

Schematic Diagram of Mold Operation

Round Open-flap Mold

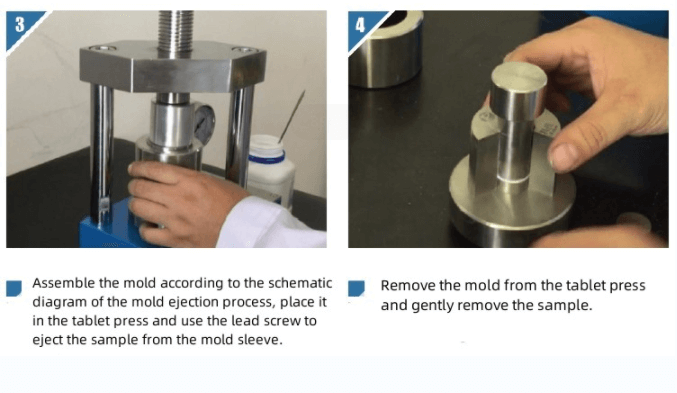

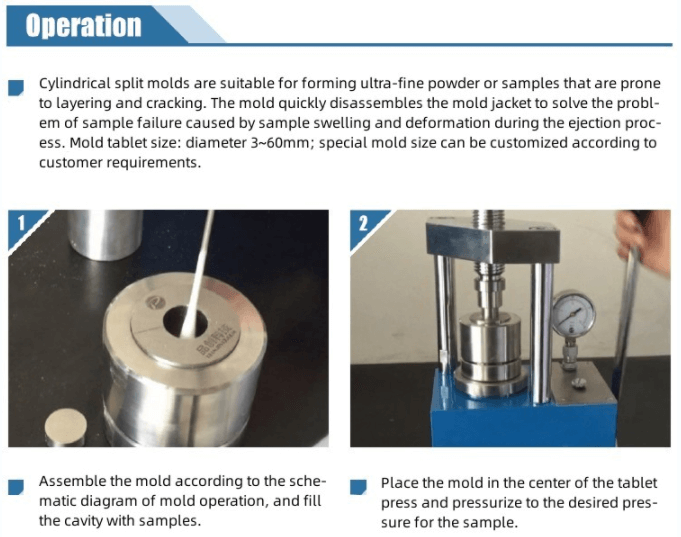

Mold sample preparation operation steps

Φ21-40mm Round Mold

Φ21-40mm Round Mold





Mold use and maintenance
