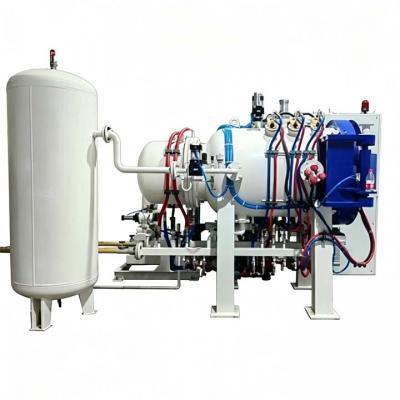

Single Chamber 1320C Vacuum Annealing Furnace Aimed at Post Processing of 3D Printed Parts
Product Overview
Mainly used for bright annealing of high alloys, magnetic materials, stainless steel, titanium alloys, non-ferrous metals and other materials.
Also applied for vacuum annealing of structural steel, tool steel, high-speed steel, stainless steel, titanium alloys, 3D printing materials, high-temperature refractory metals, soft magnetic materials and other non-ferrous metals, realizing vacuum bright annealing, stress relief annealing, etc.
Product Features
-
Heating elements: high-temperature nickel-chromium alloy, high-purity graphite or molybdenum
-
Insulation material: composite metal shield insulation structure (heat-resistant steel + stainless steel), rigid graphite felt, composite metal shield insulation structure (molybdenum + stainless steel)
-
Cooling medium: high-purity nitrogen or high-purity argon
-
Compact structure, high degree of automation, environmentally friendly and energy-saving
-
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, as well as corresponding interlock protection functions
-
Optional configurations: high vacuum system and customized effective zone dimensions as specified by customers
Specification
|
Model |
Effective Zone (mm) |
Loading Capacity (kg) |
Temperature Uniformity (°C) |
Pressure Rise Rate (Pa/h) |
Max. Temperature (°C) |
Heating Power (kW) |
Ultimate Vacuum Degree (Pa) |
Gas Quenching Pressure (bar) |
|
ZTH-40 |
450×300×300 |
100 |
±5 |
0.5 |
1320 |
40 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZTH-80 |
600×400×400 |
200 |
±5 |
0.5 |
1320 |
80 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZTH-120 |
750×500×500 |
300 |
±5 |
0.5 |
1320 |
120 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZTH-150 |
900×600×600 |
500 |
±5 |
0.5 |
1320 |
150 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZTH-200 |
1200×600×600 |
800 |
±5 |
0.5 |
1320 |
200 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZTH-300 |
1500×800×800 |
1500 |
±5 |
0.5 |
1320 |
300 |
5×10⁻³ or 4×10⁻¹ |
2 |

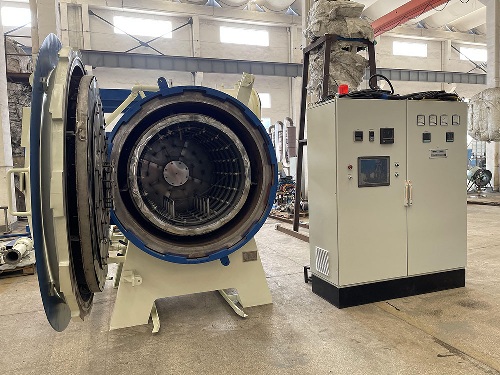

(All-Metal Hot Zone Furnace)

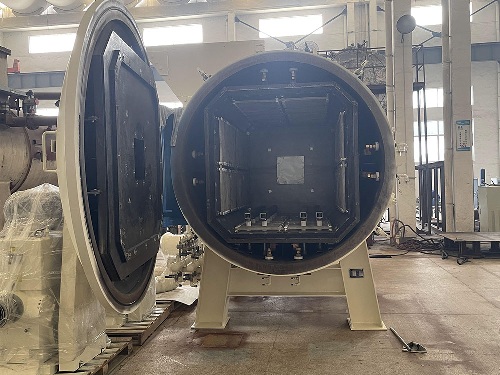

(Graphite Hot Zone Furnace)
