Lab 1200C High Vacuum Slide Chute Furnace with Turbo Molecular Pump

Contact Person:Gilia Ding


Tel:+86 177 5900 4070
Whatsapp: +86 177 5900 4070

  • Item no.:

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

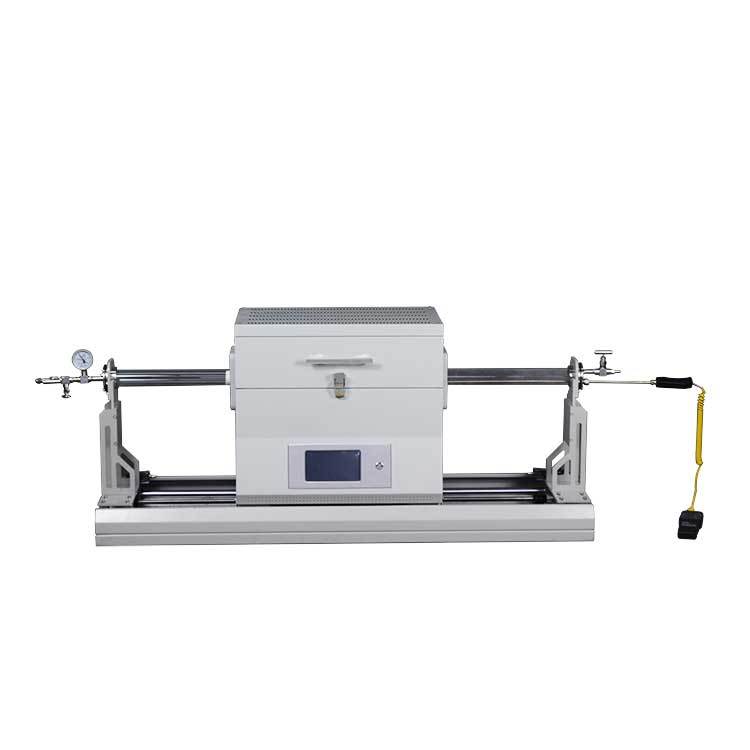

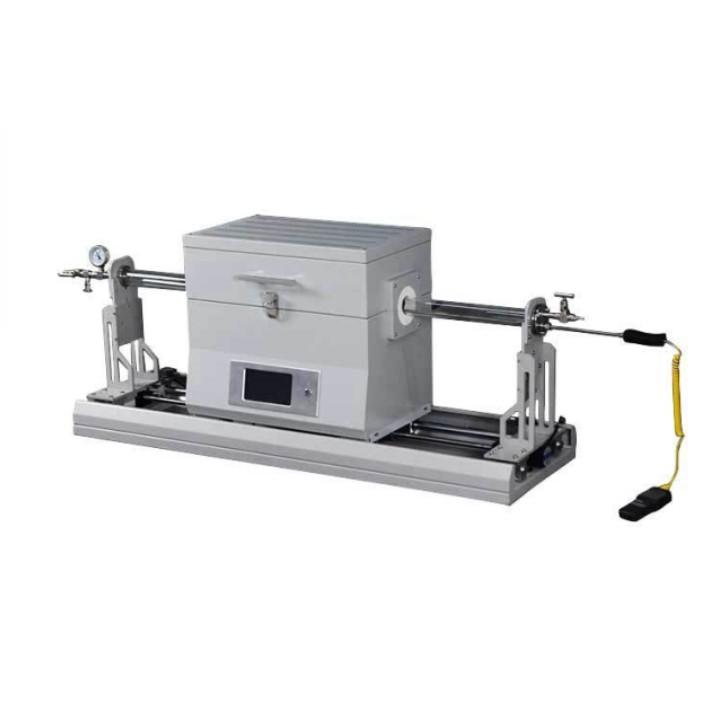

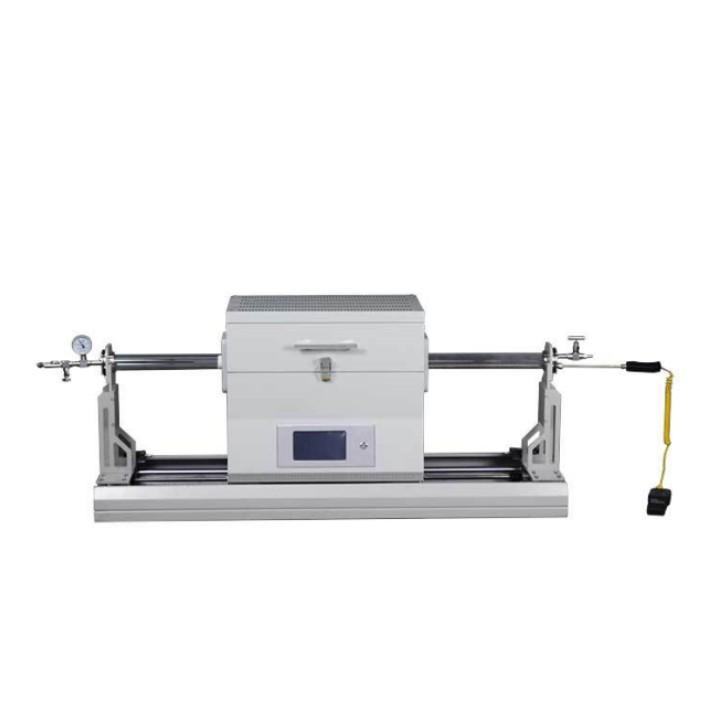

Lab 1200C High Vacuum Slide Chute Furnace with Turbo Molecular Pump

1200C Vacuum Furnace

1200 degrees slide furnace with high vacuum system three-way mass flow meter

The core of this 1200℃ rapid annealing furnace is a set of chute furnace to achieve the function of heating and annealing, the inlet end is equipped with a high-precision three-way mass flow meter to accurately control the atmosphere in the tube; at the same time, the equipment is equipped with a turbo-molecular pump set, which can quickly reach a high vacuum environment and maximize the elimination of air atmosphere interference with the experiment.

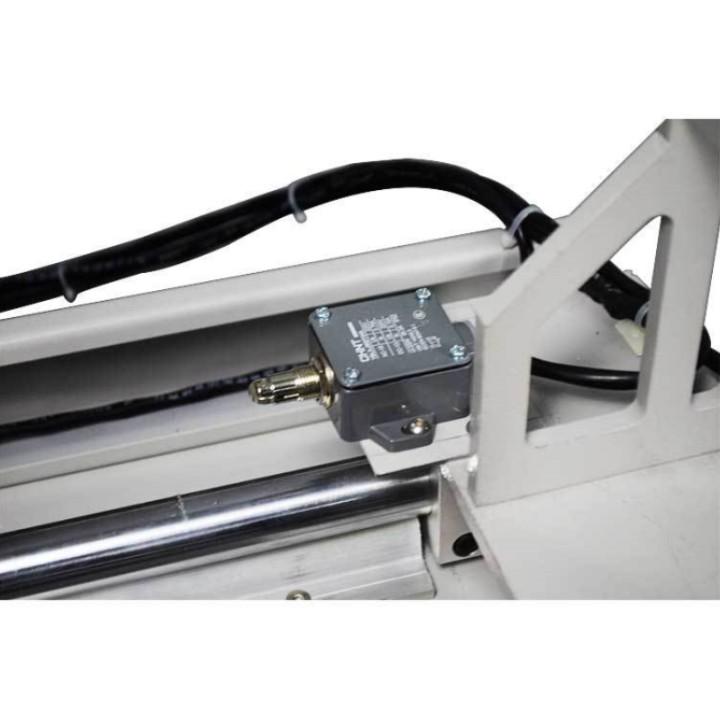

The chute furnace is composed of 1200℃ standard single temperature zone tube furnace and high precision slide rail. The tube furnace adopts resistance wire heating with polycrystalline fiber chamber, which has excellent heating and heat preservation performance. The slide rail slide table fits closely and slides smoothly, which is easy to operate. At the same time, the tube furnace is operated by a full-color LCD touch screen, which is simple, intuitive and easy to use, and can simplify the experimental operation and save test time.


Technical parameters:



Supply voltage

AC220V, 50Hz

Maximum power


Heating temperature zone

Single temperature zone 440mm

Operating temperature


Temperature control precision


Temperature control mode

AI-PID 30-segment process curve, can store more than one

Furnace tube material

High purity quartz

Tube size

φ80mm I.D x 1000mm L

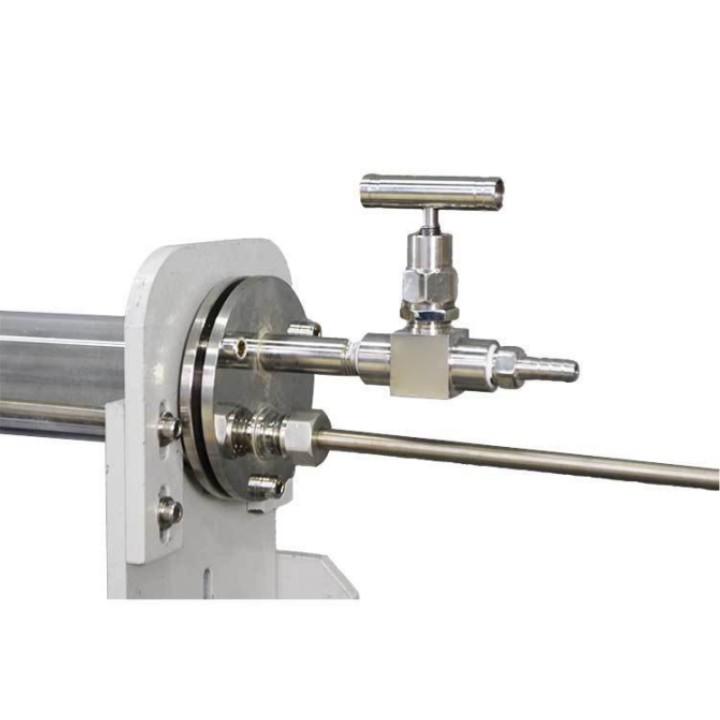

Sealing method

Stainless steel vacuum flange

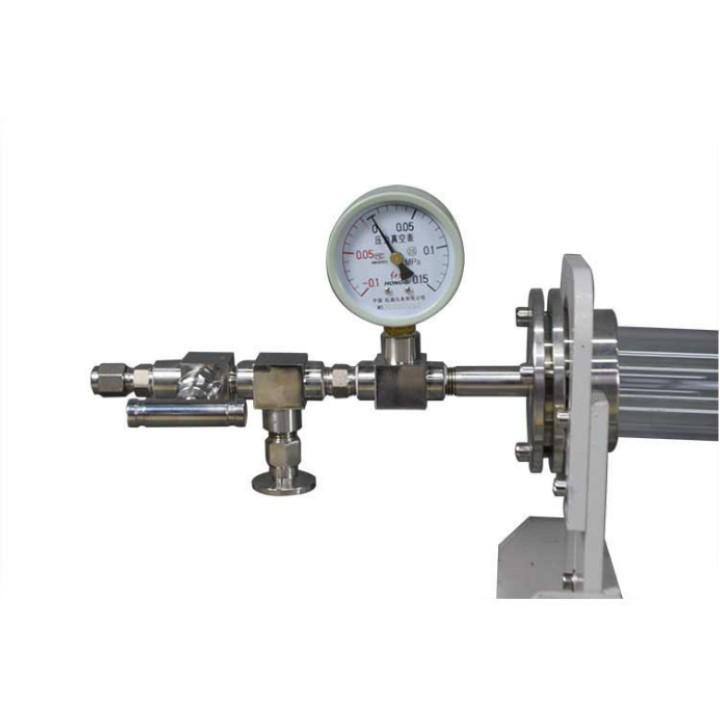

Vacuum measurement

Mechanical pressure gauge

Working gas

Hydrogen, nitrogen, argon, oxygen and other non-corrosive gases
