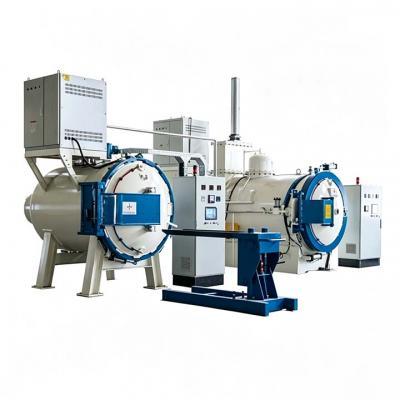

Non Ferrous Metal Fabrication Focused Vacuum Aging Furnace with Tempering Capability
Product Overview
It is mainly suitable for bright tempering of various materials after vacuum quenching, and can also be used for recrystallization annealing and aging treatment of non-ferrous metals.
Product Features
-
Heating elements: High-temperature nickel-chromium alloy, high-purity graphite or molybdenum
-
Insulation materials: Composite metal shield structure (heat-resistant steel + stainless steel), rigid graphite felt, composite metal shield structure (molybdenum + stainless steel)
-
Cooling medium: High-purity nitrogen or high-purity argon
-
Compact structure with high degree of automation, meeting environmental protection and energy-saving requirements
-
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, and corresponding interlock protection functions
-
Optional configurations: High-vacuum system or customized effective zone dimensions as specified by customers
Specification
|
Model |
Effective Zone (mm) |
Loading Capacity (kg) |
Temperature Uniformity (°C) |
Pressure Rise Rate (Pa/h) |
Max. Temperature (°C) |
Heating Power (kW) |
Ultimate Vacuum Degree (Pa) |
Gas Quenching Pressure (bar) |
|
ZHH-40 |
450×300×300 |
100 |
±5 |
0.5 |
1320 |
40 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZHH-80 |
600×400×400 |
200 |
±5 |
0.5 |
1320 |
80 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZHH-120 |
700×500×500 |
300 |
±5 |
0.5 |
1320 |
120 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZHH-150 |
900×600×600 |
500 |
±5 |
0.5 |
1320 |
150 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZHH-200 |
1200×600×600 |
800 |
±5 |
0.5 |
1320 |
200 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZHH-300 |
1500×800×800 |
1500 |
±5 |
0.5 |
1320 |
300 |
5×10⁻³ or 4×10⁻¹ |
2 |
