Laboratory Automatic Benchtop Vacuum Spin Coating Machine with Oil Free Vacuum Pump

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    Lith-4L-I
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

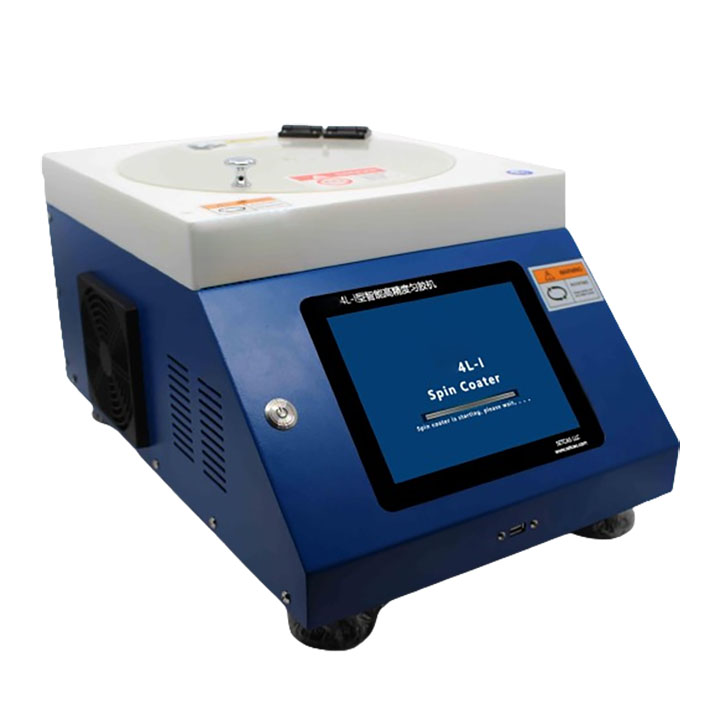

Laboratory Automatic Benchtop Vacuum Spin Coating Machine with Oil Free Vacuum Pump


Spin Coater



Key Features:

a. Bring glue protection and alarm

b. Insufficient adsorption alarm and interlock

c. The motor can rotate forward and reversely

d. With communication interface RS485, free remote communication software is provided, and can be connected to mouse and keyboard

e. Formula with power-offprotection function

f. The overall material of the chamber is polytetrafluoroethylene PTFE

g. Actual ultra-wide speed range,10- 12000 rpm, with RS485 communication, standard MODBUS-RTU protocol

h. The machine supports 24/7 uninterrupted work

i. Integrated automatic glue dispensing (only supported by KW-4L-I)

j. Integrated foot pedal function (only supported by KW-4L-I)


Spin Coater Specifications

Substrate size

5-200mm (standard)/5-600mm (optional)

Speed range

10- 12000RPM (standard)/10-20000RPM (optional)

Acceleration range

10-30000RPM/S, Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Automatic glue dispensing

Yes

Human machine interface

8-inch touch screen

Communication interface

USB (standard), with RS485 communication(standard)MODBUS-RTU protocol, can be connected to wireless mouse and keyboard

Foot pedal function

Yes

Turn around

Can rotate forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Third-party options

Logitech wireless mouse/wireless keyboard/Kingston 2G disk

Vacuum Pump

SC-550V

Set data

Unlimited group data, each group of 15 speeds (standard)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

650W

Pump power

350W

Dimensions(Spin Coater)

340mm(W)X500mm(D)X250mm(H)

Weight(Spin Coater)

18KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year




Spin Coater


PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
