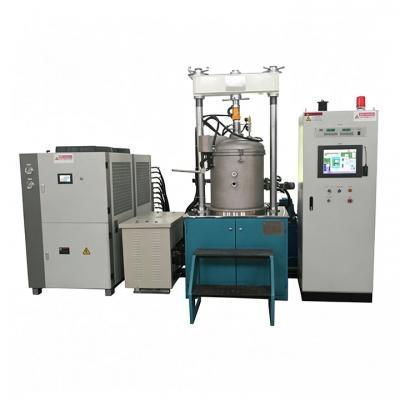

Laboratory 2300℃ High Efficiency Pressure Controlled Vacuum Hot Press Furnace For Hard Alloy Sintering

Introduction

QSH-VHP series vacuum hot press furnace is mainly used for teaching, scientific research and production. It is specifically designed for hot-press sintering and experiments of non-metallic materials, carbon composites, ceramic materials, cemented carbides, synthetic diamond tools and metal powder materials under vacuum or protective atmosphere. It can also be used for diffusion bonding of various materials such as ceramics, alloys and diamonds. Sintering and recrystallization under high temperature and high pressure in the furnace can greatly improve material density.

Technical Parameters

Working chamber size: customizable

Cold ultimate vacuum: 6×10⁻³ Pa (cold state)

Pressure rise rate: ≤1 Pa/h

Temperature control zones: 1 zone

Maximum temperature: 2300℃ (normal operating temperature ≤1200℃)

Maximum pressure: customizable

Vacuum configuration: selected according to actual requirements

Electrical control: equipped with complete electrical components, featuring over-temperature, over-pressure, low water pressure alarms and gas over-pressure interlock

Purge gas: inert gases such as argon and nitrogen for process protection

Charging pressure: ≤0.05 MPa (slight positive pressure; automatic venting if exceeded)

Plunger diameter: customizable

Maximum stroke: customizable

Heating power: as per design

Temperature control: programmable automatic control

Temperature measurement: thermocouple + infrared pyrometer

Furnace structure: sideopening; inner layer SUS304 stainless steel, outer layer carbon steel

Temperature uniformity: ±5℃ (at 1800℃)
