High Efficiency 2300C Vacuum Hot Press Furnace with Pressure Regulation for Laboratory Hard Alloy Fabrication

Introduction

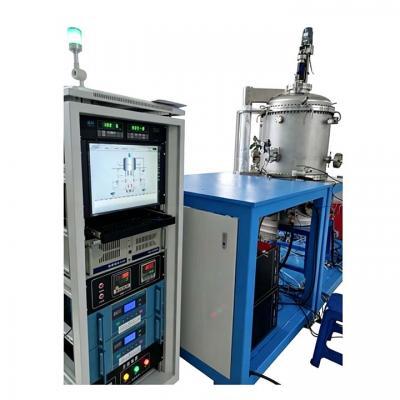

This ultra-high vacuum vertical resistance furnace adopts tungsten as the heating element. It is used for sintering metal compounds, ceramic inorganic compounds and other products under ultra-high vacuum or protective atmosphere, and also for heat treatment of metallic materials.

Main Technical Parameters

Power supply: 380 V, three-phase, 50 Hz

Limiting temperature: 2300℃

Operating temperature: 2200℃

Working zone size: Customizable according to customer requirements

Ultimate vacuum degree: 8×10⁻⁸ Pa (metal sealing)

Leakage rate: ≤0.003 Pa/h

Electrical control: PLC + touch screen control, with over-temperature, over-pressure, and water under-pressure alarm functions

Fillable gases: Inert gases such as argon and nitrogen for process protection
