Lab 1800C Vacuum Tube Furnace with Heating Section 205mm

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-SK2-5-17TPB2
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

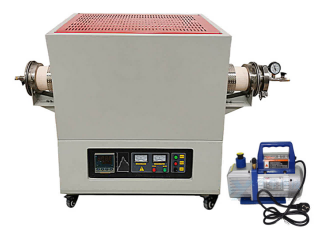

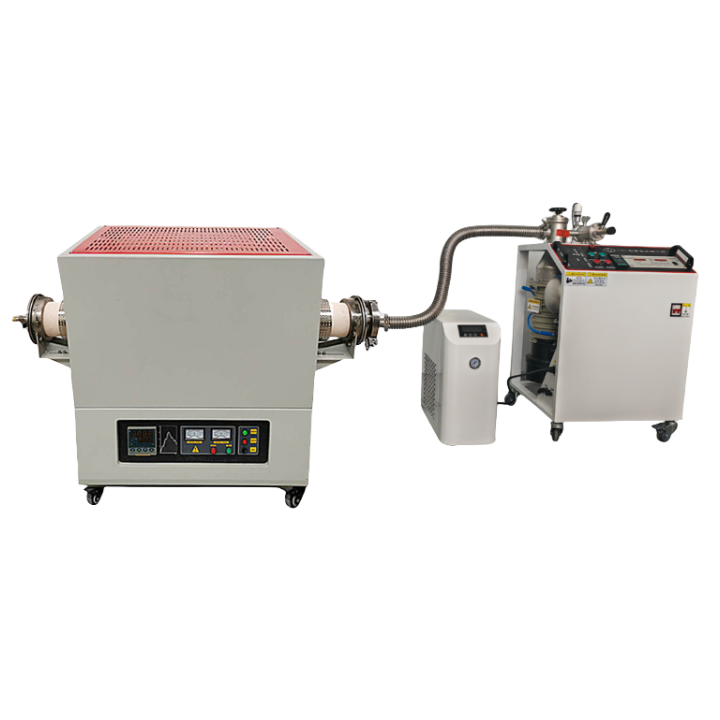

Lab 1800C Vacuum Tube Furnace with Heating Section 205mm


1800C Tube Furnace

Main parameter

PN: SK2-5-17TPB2

Max.Temp: 1800C

Short working temperature:1700C

Continue working temperature:1650C

Tube diameter:60mm

Tube heating zone length:205mm

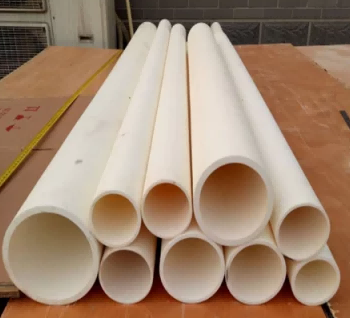

Tube material:Alumina tube

Heating rate:0~10 Degree/Min

Max.vacuum:10-4mbar

Heating element:Mosi2 heating element

Thermocouple:B type

Temperature accuracy: ±1℃

External Size:590*630*845mm

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. It also add a Float flowmeter to to adjust the flow rate,Equipped with a vacuum pump.

Appearance design

The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

Furnace Chamber material

Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

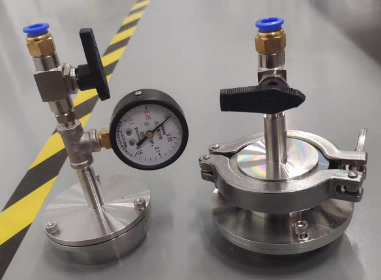

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

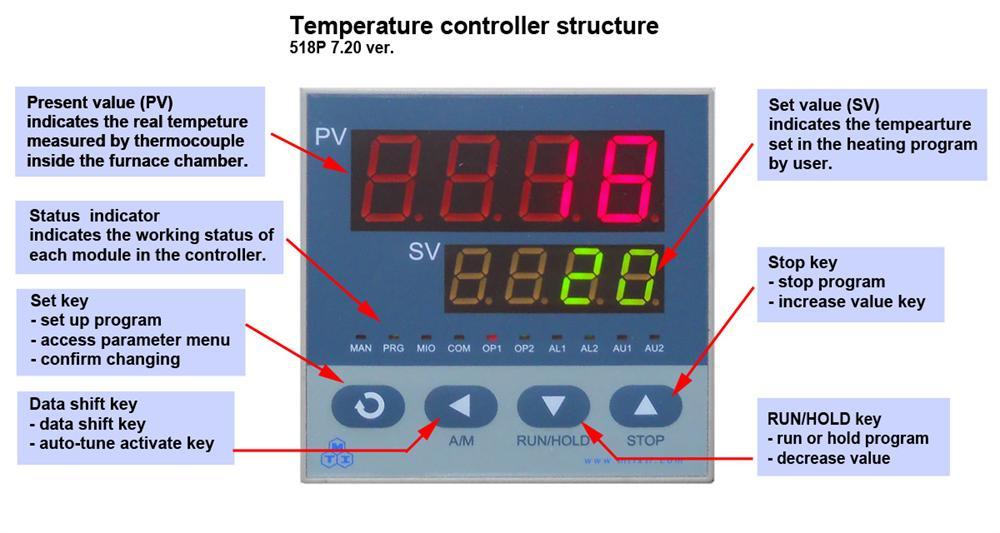

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature accuracy: ±1℃

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

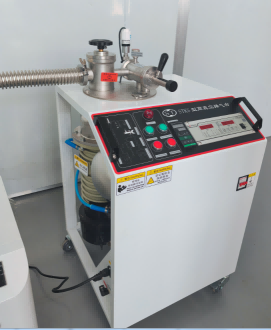

Vacuum system

High vacuum molecular pump set: Diffusion pump unit

Vacuum degree : 10-4Mbar

KF25 quick connect, stainless steel bellows, manual flapper valve and flange, vacuum pump

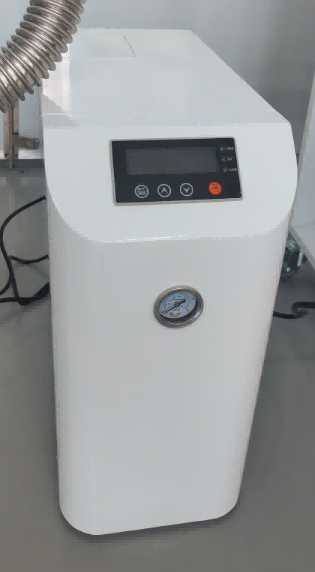

Water Chiller

Model:JA-5

Refrigeration capacity:500W

Water temperature control range:5~35℃ adjustable

Water tank volume:4L

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Certificates: CE,SGS,ISO&UL






Standard Package Accessories:

Electric Furnace

1 set



High temperature gloves

1 pair





Crucible hook

1 pc





Quartz tube

1 pcs





Stainless steel flange

1 set





Spare heating element

2pcs





A Float flowmeter

(assembly on furnace)

1pcs

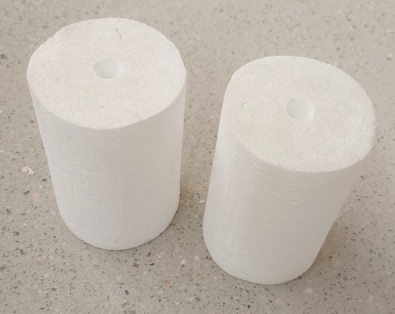

Tube stopper

2pcs





10mm Air pipe







User manual

1 book





Vacuum unit

1 set



Water Chiller

1set


The parameter of vacuum system




No.

Item

Unit

Specification

1

MODEL NO.



STKS-280

2

INLET PORT

mm

KF40+KF25

3

ULTIMATE PRESSURE

Pa

≤5×10E-4

4

MAIN PUMPING SPEED

L/S

≥280

5

PUMP SPEED OF BACKING PUMP

L/S

3

6

DURATION OF GAS CONTAINER

H

1

7

TOTAL POWER

KW

1.8

8

POWER SUPPLY



1-PH, 220V,50HZ

9

POWER OF DIFFUSION PUMP HEAT

KW

1

10

DIFFUSION PUMP OIL



#275

11

DIFFUSION PUMP OIL CONSUMPTION

L

0.5

12

COOLING WARTER INLET&OUTLET PORT

MM

10

13

COOLING WATER VOLUME

L/H

200

14

DIMENSIONW*D*H

MM

550×560×1010

15

WEIGHT

KG

110



The parameter of water Chiller




Model

JA-5

Refrigeration capacity

500W

Water temperature control range

5~35℃ adjustable

Temperature control mode

constant temperature/adjustable start and stop

Temperature control accuracy

±0.1℃/±3.0℃ adjustable

Water tank volume

4L

Water flow m³

0.5

Inlet and outlet size

DN15

Refrigerant

R134a

Power supply

220V 50Hz

Total power

460W

Overall dimensions

490mm long x 300mm wide x 250mm high

Total machine weight

about 33KG


Please let me know your address in details,then we can send freight cost to you.
