Main parameter

PN:

Max.Temp: 1200℃  （200-1100℃ Continuous working temp）

Suggested heating rate:10℃/min

Power supply: AC 220V

Max.power: 2kw

Heating zone: 205mm(mm)  Quartz tube

1700℃ tube furnace is not split type.

Furnace structure

1. The furnace material is made of high purity alumina fiber, which can minimize energy loss.

Heating element:

Resistance wire

Thermocouple

K type(overheating and couple breaking protection)

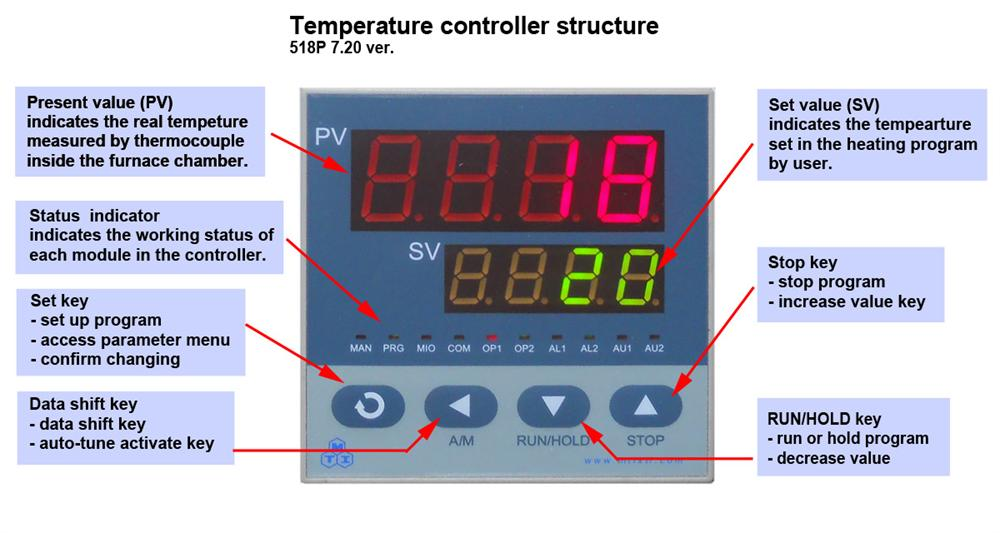

Temperature controlling

PID automatic control via SCR(silicon controlled rectifier)power control with phase angle fired,current limiting resistor.

30 segments “time-temperature curve”can be set arbitrarily.

Pre-stored 8 temperature curve(can increase more curve)

Temperature accuracy: ±1℃

It has the function of indicating over temperature and breaking the couple.

Warm Tips

1.The air pressure in furnace tube should not be higher than 0.02mpa

2.Because of the high air pressure inside the cylinder, the pressure relief valve must be installed on the cylinder when the gas is pumped into the furnace tube. The pressure relief valve range is 0.01mpa-0.1mpa. it will be more accurate and safe in use.

3.The flow of gas into the furnace tube should be less than 200 sccm to avoid the shock of the large cold air flow on the heated alumina tube.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard accessories in Package below:

Electric Furnace

1 set

High temperature gloves

1 pair

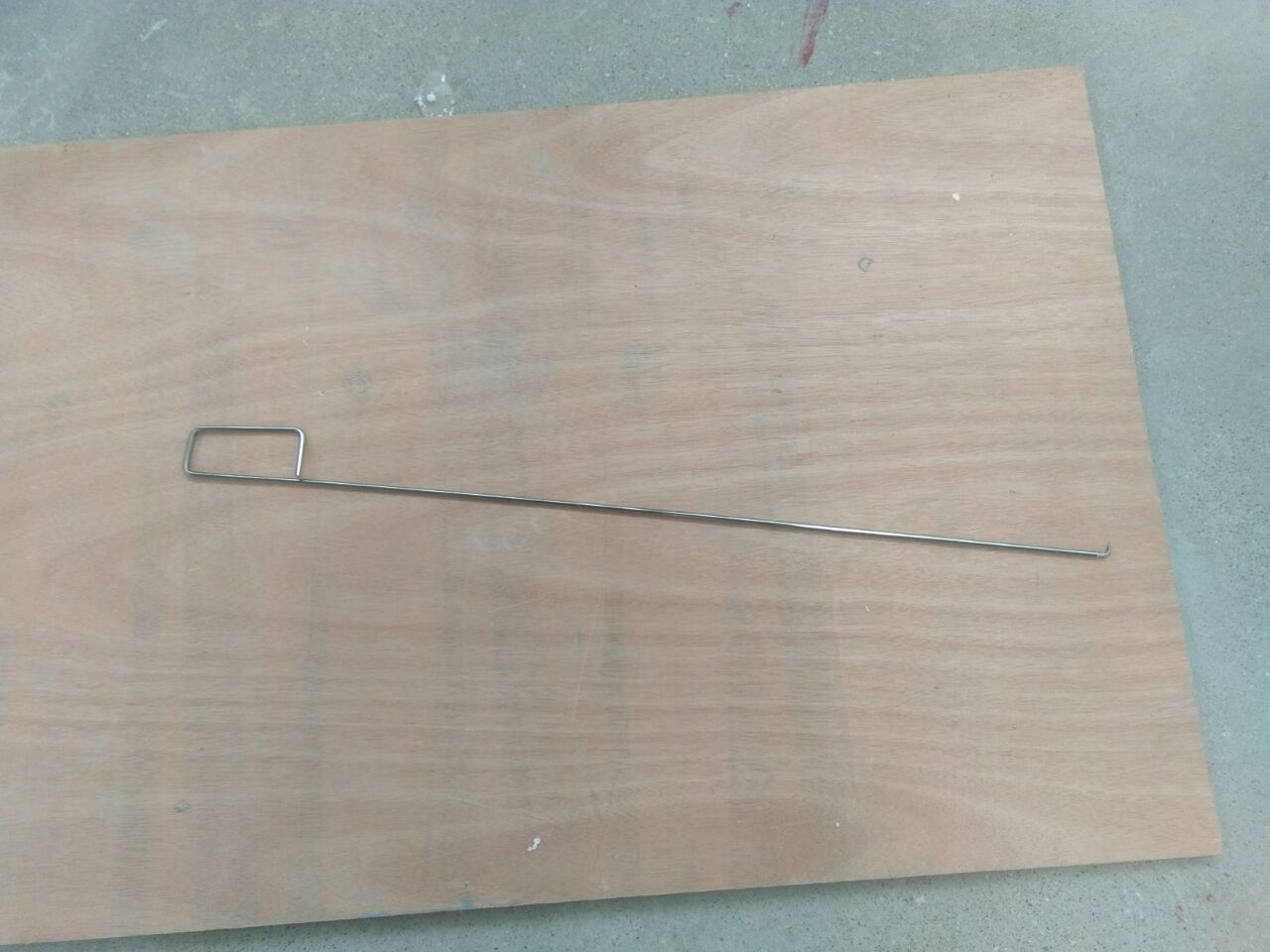

Furnace hook

1 pc

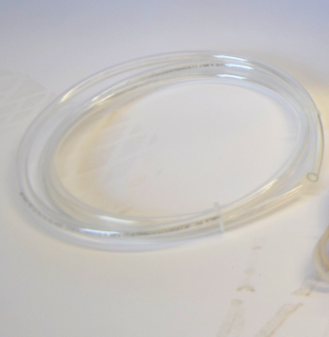

Vent pipe

1 pc

Tube Plugs

2 pc

User manual

1 book
