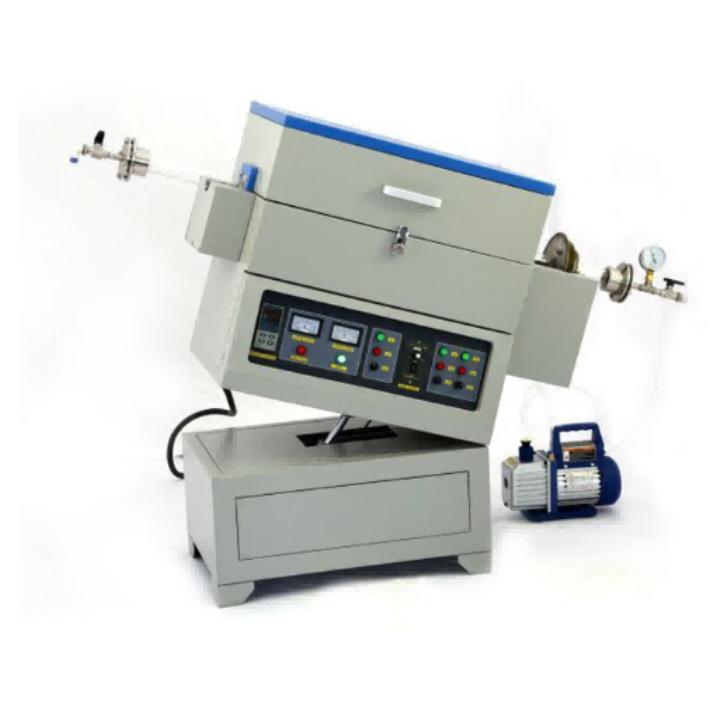

1200C Rotary Tilting Vacuum Tube Furnace with Quartz Tube

Contact Person:Gilia Ding


Tel:+86 177 5900 4070
Whatsapp: +86 177 5900 4070

  • Item no.:

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

1200C Rotary Tilting Vacuum Tube Furnace with Quartz Tube

1200C Tube Furnace

Main parameter

PN: SK2-2-12TPRTB2

Max.Temp: 1200C

Working temperature:0-1100C

The tube diameter:60mm

The heating zone length:205mm

Tube material:Quartz tube

Heating rate:0~20 Degree/Min


Voltage:220V,single phase 50/60HZ

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

Rotary system

Tube rotate speed:0-20 RPM

The tube can rotate 360 degrees,electric gear drive

Push button control switch

Tilting system

Maximum inclination: 0-30° (adjustable)


Push button control switch

Appearance design

The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

Furnace Chamber material

Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.


One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and quartz tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Certificates: CE,ISO&UL




Standard Package Accessories:

Electric Furnace

1 set


High temperature gloves

1 pair


Crucible hook

1 pc


Quartz tube

1 pcs


Stainless steel flange

1 set


Tube stopper



Vacuum pump



User manual

1 book

Please let me know your address in details,then we can send freight cost to you.
