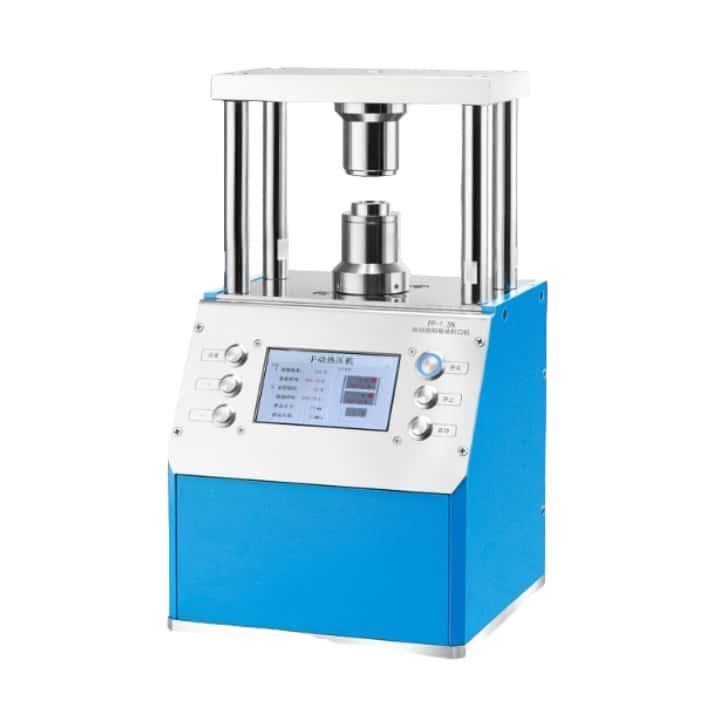

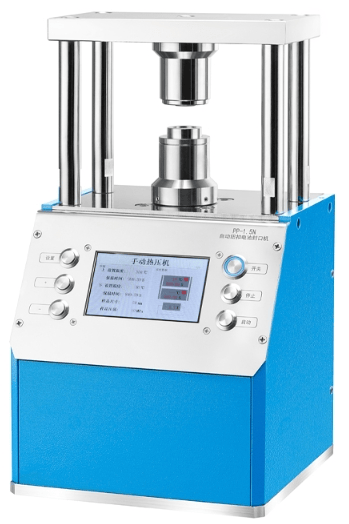

Integrated 1500KG Electric Button Battery Sealing Machine Equipped with CR20 Series Package Mold

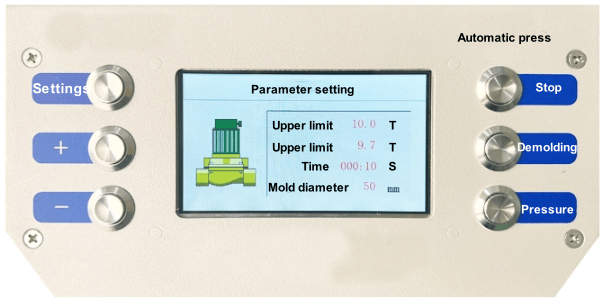

Setting interface

Settings

Under the operation interface, press the setting button to enter the setting interface. Press the setting button again to move the setting content. After moving to the mold diameter, press the setting button again to return to the operation interface. Note: When the time is set to "0", it indicates that the set time is infinite.

+

In the operation interface, press the "+" key to increase the set number.

-

In the operation interface, press the "-" key to reduce the set number.

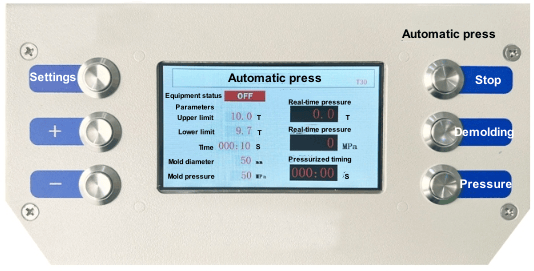

Operation interface

Stop

When the equipment is in operation, pressing the "Stop" button will halt the motor operation of the equipment and open the pressure relief valve to release the pressure.

Demolding

Press the "demolding" button and the equipment will start. When the pressure exceeds the specified pressure or the limit switch is touched, the equipment will automatically stop and release the pressure. The operation can also be manually stopped.

Sample preparation

Press the "Sample preparation " button, and the equipment will start. When the pressure reaches the set pressure, it will stop pressurizing and start timing to maintain the pressure. When the pressure drops below the lower limit, it will automatically replenish the pressure. After the timer ends, it will automatically release the pressure.

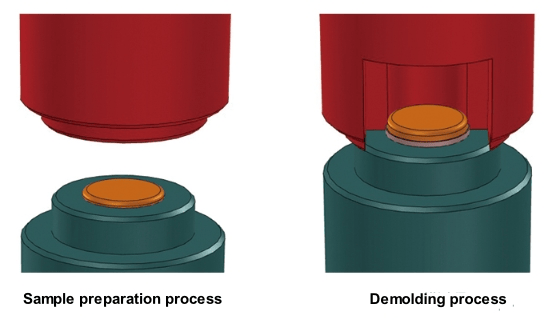

Schematic diagram of mold operation

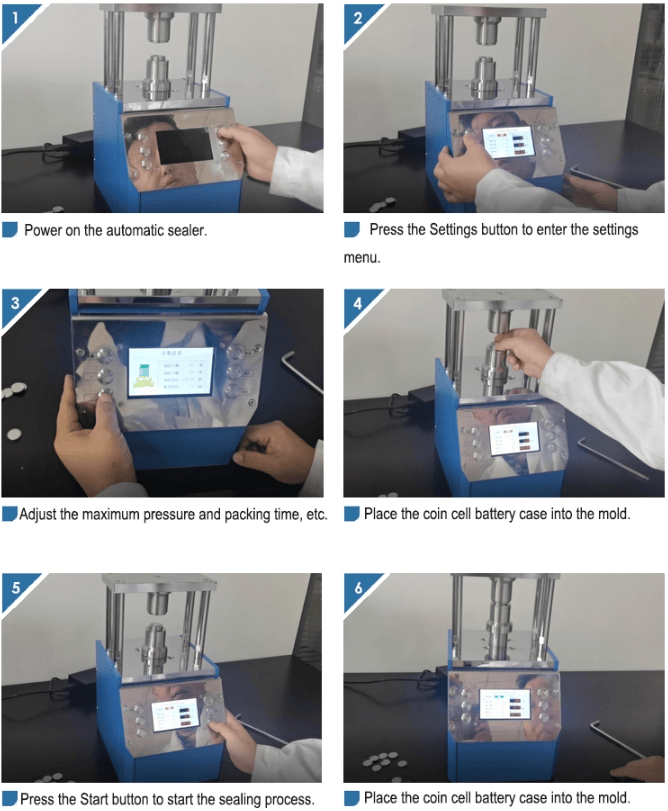

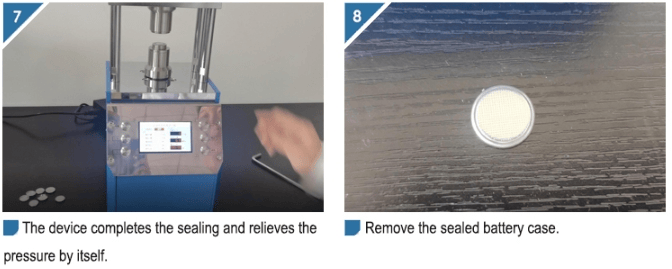

Operation procedure

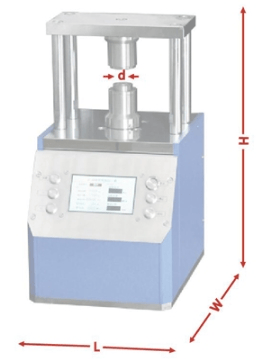

Technical parameter
