Model

LITH-SYP-2T

Pressure range

0-2T(25Mpa)

Piston diameter

32mm(d)

Main body structure

Utility model patents

2013 2 0040218.0

Pressure gauge

Pressure and pressure double-scale display

The biggest piston itinerary

30mm(T)

Stability of pressure

≤1MPa/10min

Diameter of working table

Φ50mm(D)

Column number

2 columns

Column spacing

85*120(M*N)

Overall dimensions

210*150*350(L*W*H)

Weight

12Kg

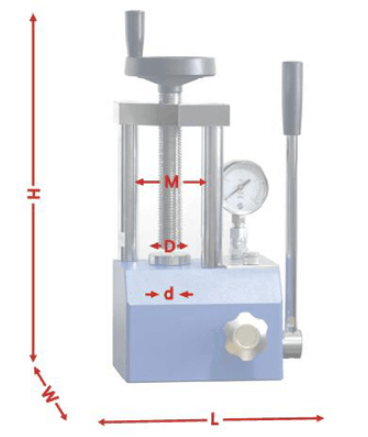

Dimension diagram of tablet press
