Model

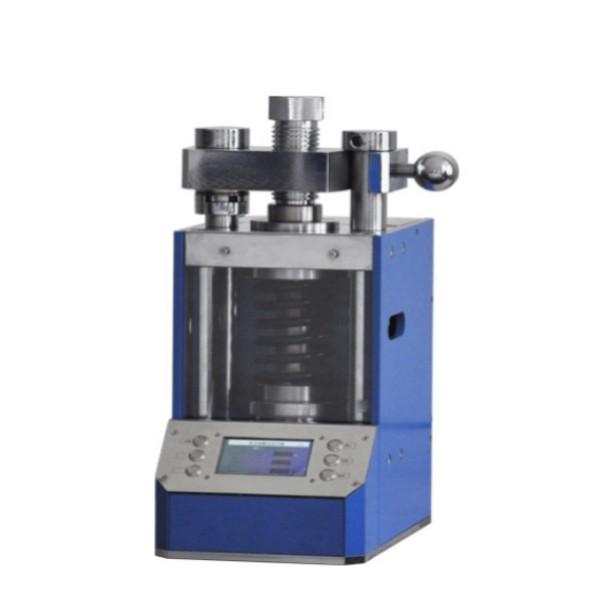

LITH-PP-30X

Pressure range

1-30t

Pressurization process

Program pressurization - program pressure maintaining - timed pressure relief - automatic sample withdrawal

Compress time

0-999 s

Pressure conversion

The program automatically converts the pressure of the mold

LCD

4.3 inch LCD screen

Built-in mold

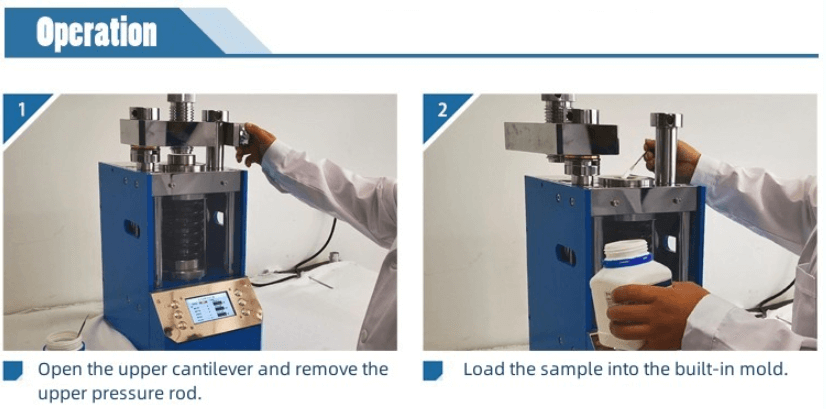

Including a set of built-in boric acid mold

Sample size

Standard Φ40mm

Mold material

High chromium die steel with alloy indenter

Demoulding method

Automatic demolding

Dimensions

250*390*460mm（L*W*H）

Device power

220V（50Hz/60Hz）

Equipment weight

120kg

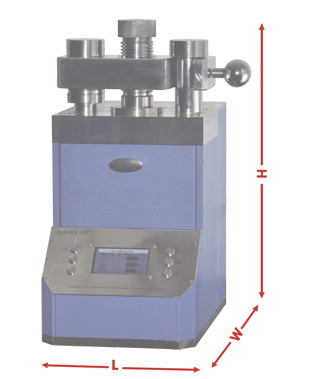

Tablet press size diagram
