Model

LITH-DYP-40TS

Pressure range

0-40T

Piston diameter

Cylinder diameter 130mm(d)

Pressurization process

Program pressurization - program pressure maintenance - timed pressure relief

Compress time

0-999.59 minutes

Pressure conversion

The program automatically converts the pressure on the sample

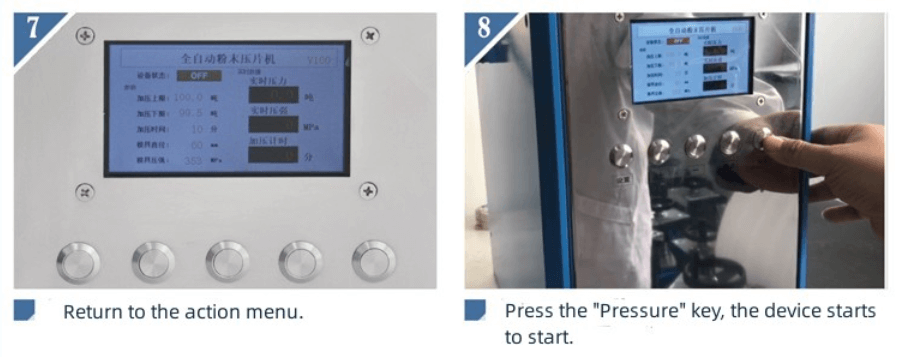

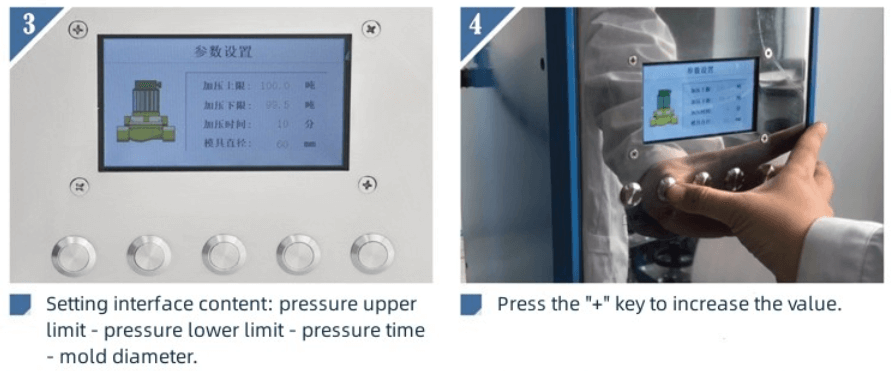

LCD

4.3 inch LCD screen

Equipment protection

Steel protection with plexiglass door

Cylinder stroke

50mm (T)

Space size

160*300mm(M*N)

Dimensions

500*700*800mm(L*W*H)

Device power

220V(50Hz/60Hz)

Equipment weight

200kg

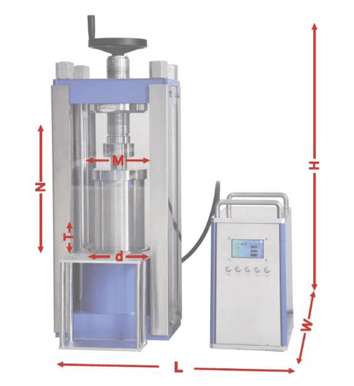

Tablet press size diagram
