High Efficiency 2300C Vacuum Hot Press Furnace with Pressure Regulation for Laboratory Hard Alloy Fabrication
Introduction

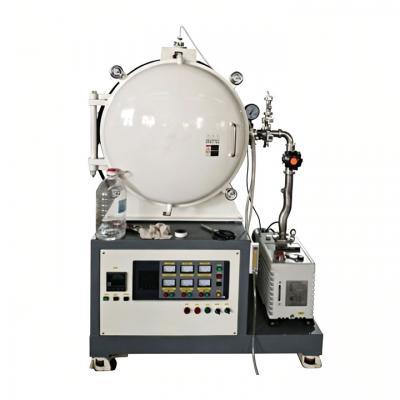

The VF series vacuum furnace is widely used for heat treatment of metal materials under vacuum, reducing and protective atmospheres. It is also suitable for high-temperature sintering and vacuum heat treatment of special materials, such as sintering of silicon carbide products. The furnace chamber is lined with alumina ceramic fiber blanket, which provides excellent energy-saving and thermal insulation performance. It features a fully enclosed vacuum tank with a water-cooling system, boasting an innovative overall structure and easy operation.
Specification
|
Model & Maximum Temperature |
Main Furnace Chamber Dimensions (Width × Height × Depth) |
|
VF-1200 Series Max. Temperature: 1200℃Operating Temperature: ≤1100℃ |
100×100×100, 120×120×130, 150×150×150, 150×150×200, 200×200×200, 200×200×300, 250×250×300, 300×300×400, 300×300×450, 400×400×600, 450×450×600, 500×500×700, 600×600×900, 800×800×1200, 900×900×1600 |
|
VF-1400 Series Max. Temperature: 1400℃Operating Temperature: ≤1300℃ |
|
|
VF-1700M Series Max. Temperature: 1700℃Operating Temperature: ≤1600℃ |
Note: Custom specifications are available. Please contact our sales team for details.
