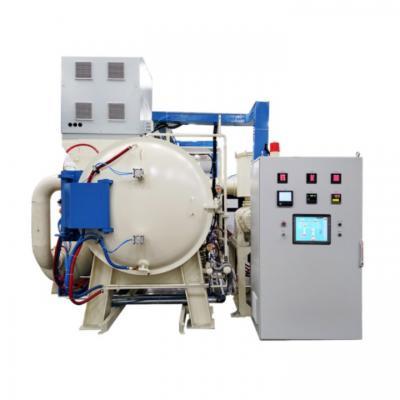

For MIM Applications 1600℃ 40L Vacuum Furnace with Ceramic Hot Zone
Product Overview
Mainly suitable for vacuum sintering of cemented carbide, ceramic materials, powder injection molding products, magnetic materials, porous materials, etc.Vertical bottom-loading structure is available as an option.Also widely used for vacuum sintering of cemented carbide, ceramic materials, powder injection molding, magnetic materials, porous materials and general powder metallurgy products.
Product Features
-
Heating elements: high-purity graphite or molybdenum
-
Insulation material: rigid graphite felt, or composite metal shield insulation structure of molybdenum + stainless steel
-
Cooling medium: high-purity nitrogen or high-purity argon
-
Compact structure, high degree of automation, environmentally friendly and energy-saving
-
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, as well as corresponding interlock protection functions
-
Optional configurations: dewaxing system available, or customized effective zone dimensions as specified by customers
Specification
|
Model |
Effective Zone (mm) |
Loading Capacity (kg) |
Temperature Uniformity (°C) |
Pressure Rise Rate (Pa/h) |
Max. Temperature (°C) |
Heating Power (kW) |
Ultimate Vacuum Degree (Pa) |
Gas Quenching Pressure (bar) |
|
ZSJ-80 |
450×300×300 |
100 |
±5 |
0.5 |
1600 |
80 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZSJ-120 |
600×400×400 |
200 |
±5 |
0.5 |
1600 |
120 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZSJ-150 |
700×500×500 |
300 |
±5 |
0.5 |
1600 |
150 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZSJ-220 |
900×600×600 |
500 |
±5 |
0.5 |
1600 |
220 |
5×10⁻³ or 4×10⁻¹ |
2 |
|
ZSJ-300 |
1200×600×600 |
800 |
±5 |
0.5 |
1320 |
200 |
5×10⁻³ or 4×10⁻¹ |
2 |
