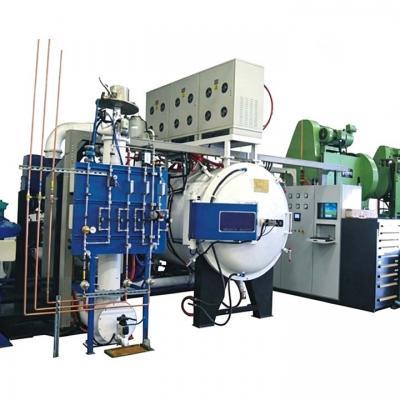

Automatic 1200℃ 50L Vacuum oCmbined Debinding and Sintering Furnace Aimed at Cemented Carbide Powder Metallurgy Production

Product Description

Vacuum Debinding Sintering Furnace is mainly used for debinding and sintering of metal-based powder metallurgy products. It is suitable for debinding treatments of binders such as PEG, paraffin wax and rubber.

Application Scope

Iron-based, stainless steel, cemented carbide and other products.

Technical Features

• Adopts special furnace chamber structure and heater arrangement to ensure excellent temperature uniformity.

• Equipped with a specially structured debinding box featuring excellent sealing performance, realizing complete debinding without causing contamination to furnace internal components.

• Equipped with multiple functions including flexible vacuum pumping, vacuum sintering, pressure sintering, micro positive pressure sintering, partial pressure sintering, negative pressure debinding, TOWAC debinding and micro positive pressure debinding.

• Adopts advanced thermal insulation structure and materials, which endow the furnace chamber with superior thermal insulation performance and low heat storage, achieving energy saving of over 20% compared with traditional designs.

• Compatible with process atmospheres: N₂/Ar/H₂/CH₄/NH₃.

Specification

Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.

Configuration Options

Door locking mode: manual / automatic

Furnace shell material: full carbon steel / inner stainless steel layer / full stainless steel

Thermal insulation material: carbon felt / graphite felt / carbon fiber rigid felt / metal

Heating element and muffle material: graphite / CFC / metal

Thermocouple: Type C (tungsten sleeve / molybdenum sleeve / ceramic sleeve)
