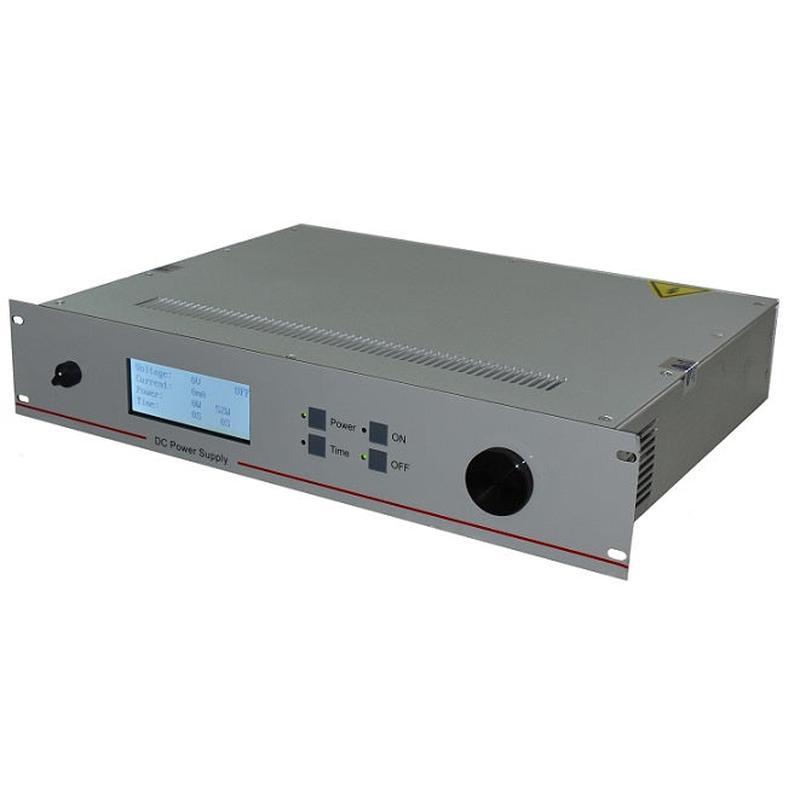

500W DC Plasma Sputtering Power Source with Optional Magnetron Sputtering Head Attachment

The DC-500-LD power supply is intended primarily for DC magnetron sputtering source. It is compact and over 90% efficient, and have low stored energy at the outlet. Special integrated circuitry enables arc suppression for arc-sensitive applications and arc control for sustained arc applications. Front panel controls switch regulation between constant power, current, or voltage while permitting the power to be ramped to the set point.

SPECIFICATIONS

Input	AC220V +/-10%
Output	Max. Output Power: 500W Max. Output Voltage: DC600V Voltage Resolution: DC 1.0V Max. Output current: DC 0.8A Current resolution: 1mA Control Accuracy: +1% Output connector: SL16 (UHF female)
Dimension	Case: W440mm X H85mm X D403mm Front Face: W440mm X H85mm
Optional Accessories Click here to order	You may order 2" High Vacuum Magnetron Sputter Source For DIY RF & DC Sputtering Coater  together with DC power supply for immediate use High Vacuum Quick Disconnect is included when you order 500W DC Sputtering power supply together with the 2" sputtering source. High Vacuum Quick Disconnect with 0.75" ID (compatible with HVMSS-SPC-2). Use this component to install the HVMSS-SPC-2 sputtering tool onto the baseplate (up to 1” thick) of a vacuum chamber with 1” diameter through-hole
