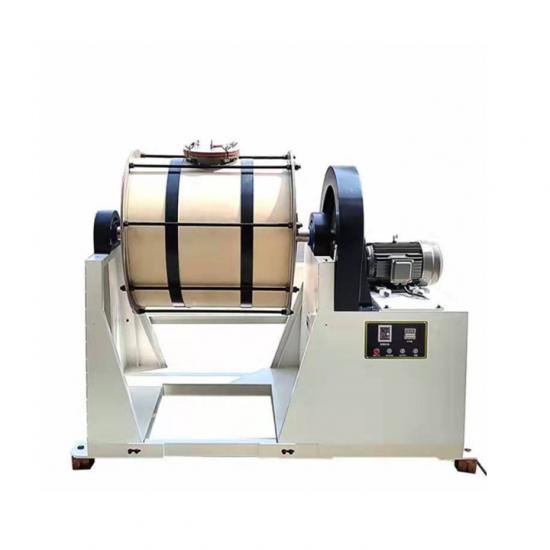

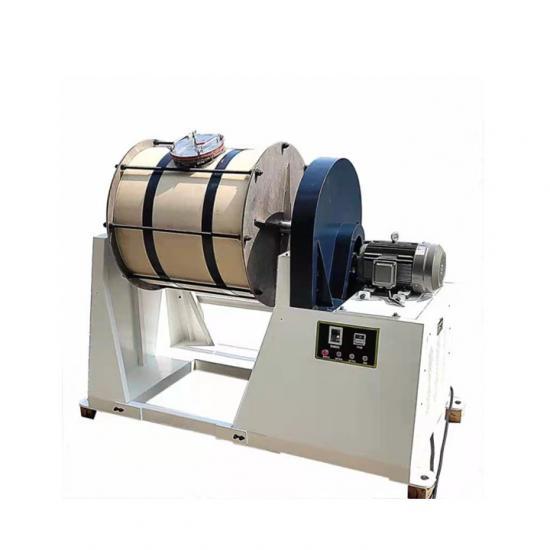

30L Light Grinding Roller Ball Mill Laboratory

1. Model：RBM-30

2. Ball mill tank volume：30L(ML)

3. Ball milling tank material: stainless steel lined with 20mm thick zirconia brick

4. The maximum material loading: material and grinding medium in each tank should not exceed two-thirds of the volume

5. Feeding size: crispy materials less than 10mm, others less than 3mm

6. Discharge size: 50-1000 mesh (according to material characteristics)

7. Rotating Speed: 60r/min(±2)

8. Speed regulation mode: frequency conversion speed regulation (with timing accumulator)

9. The distance from the discharge port to the ground: 370(MM)

10. Feeding port size: the feed port size is 180*140mm (specifically subject to the confirmed design drawing)

11. Discharge method: manual positioning loading and unloading

12. Working voltage: single-phase 220V, 50HZ

13. Host motor power 1.5KW (motor brand is Dedong)

14. Equipment reference size: 1075 (length) * 530 (width) * 1100 (height) (MM)

Equipment reference weight: about 150(KG)
