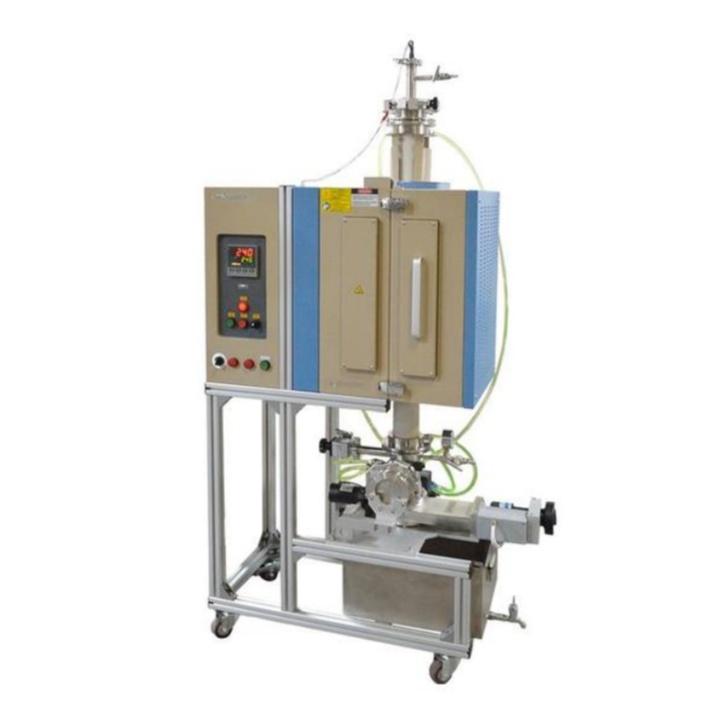

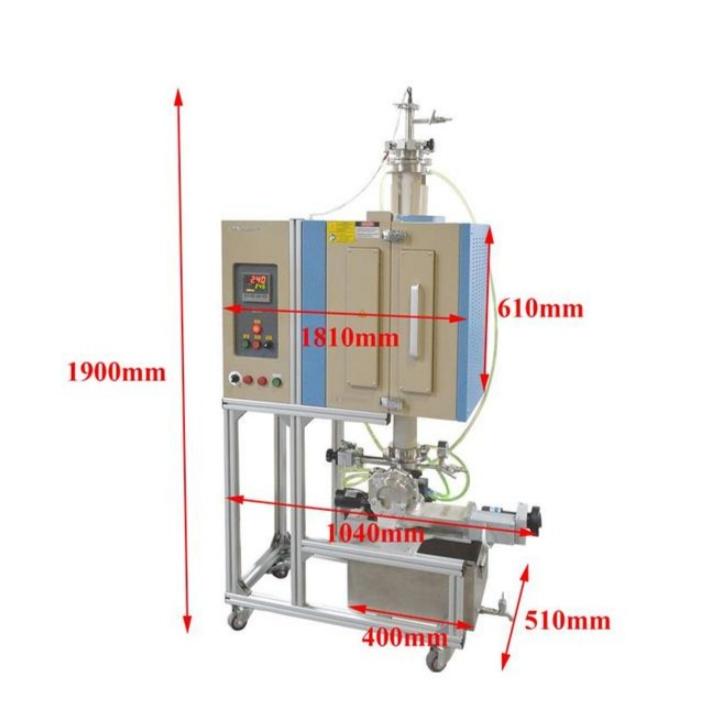

• Dual-layer steel furnace case with air cooling to keep case surface temperature < 65°C.

• Vertical and splittable for easy installation of tubes and flanges.

• Atmosphere-controlled heating treatment with an 80 mm OD alumina tube.

• Easy quenching control. Simply open the gate valve and let the sample drop directly into the quenching tank by releasing the electromagnetic sample hanger.

Power

• 208-240VAC, Single Phase, 50/60 Hz

• 6 KW (40A power outlet is required)

Heating Temperature

• 1500oC < 30 minutes

• 1400oC < continuous

Max. Heating Rate

• ≤ 10oC /min

Heating Element

• 1500°C grade SiC---12 pcs

Processing Tube

• Materials:    Alumina tube made in the USA

• Size:           OD:80 mm x ID 74:mm x Length: 1000 mm (included)

Heating Zone

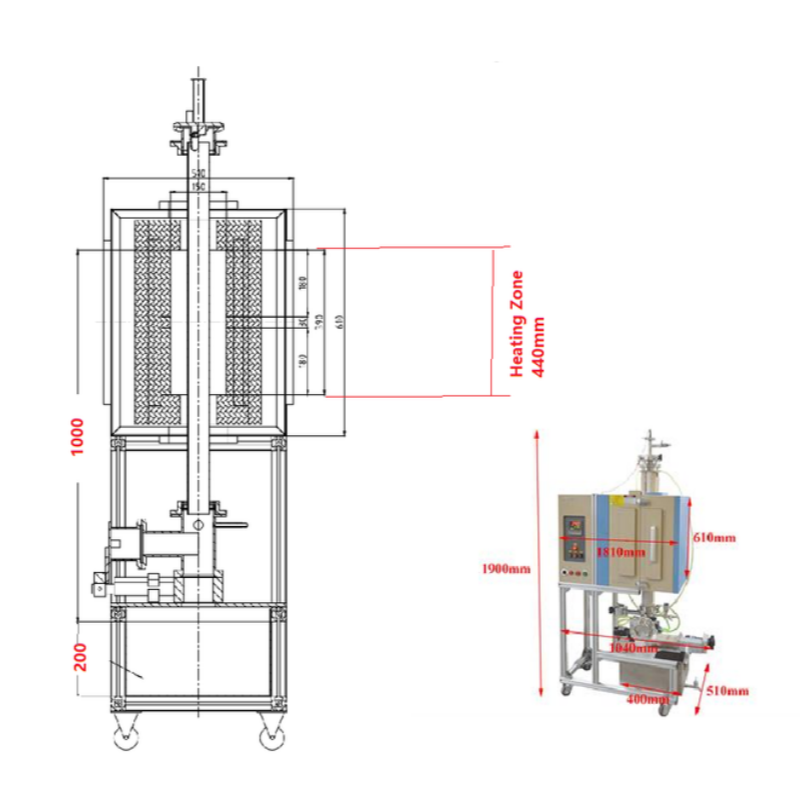

• Heating Zone length:            440 mm

• Constant Temperature       150 mm within+/- 1oC)

• 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

• Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.

• Over-temperature protection and alarm allow for operation without attendant(s).

• +/- 1 ºC temperature accuracy.

• One S-type thermocouples.

• RS-485 Communications Port.

• PC-controlled software and interface module are optional. (Standard Modbus protocol, written by Labview).

• MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.



Eurotherm

Temp. controller (optional)

• Upgrade the temperature controller to the Eurotherm 3000 series Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3000 series programmer, a communication cable (RS485 - USB), and a software CD.

Water-Cooled Flanges

• Both top and bottom flanges have water-cooling jacket (See left picture), which cools and preserves the O-ring sealings on the flange during high-temperature operation

• Please click the picture below to order a water chiller at an extra cost

•

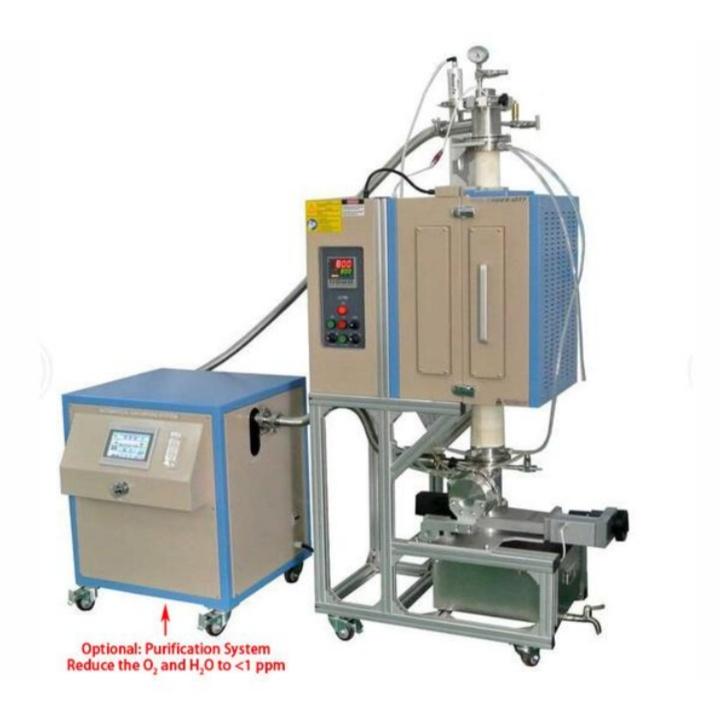

Hermetic Quenching Tank (Optional)

• Hermetic quenching tank is optional for air-sensitive materials, which enables the entire quenching process under atmosphere control

• Please contact MTI for further inquiries.

•




Vacuum

• <0.05  torr (by a mechanical vacuum pump)

• The vacuum pump is not included. Please click the picture below to order a vacuum pump separately

Power Cable & Plug

• 10 feet long 10-3 AWG heavy duty UL approved power cable is included. The extra length of the power cable can be ordered.

• The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.



Laptop, software & WiFi Control (Optional)

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
• Labview Based Temperature Control System (MTS01) enables a user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.
• The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
• Note: The software is only compatible with MTI’s Yudian Temperature Controller
•

Compliance

• CE Certified

• NRTL certification (UL61010)  or CSA certification is available upon request at extra cost.

Application Notes


Click here to learn more about the installation of a gas regulator.

• In order to obtain accurate temperature inside the tube furnace, you shall calibrate temperature before use, pls click here to learn how.

• How to set up the ceramic tube and vacuum flange for MTI Tube Furnace.

• The tube furnaces with alumina tubes are designed for use under vacuum or positive pressure < 0.02 Mpa / 0.2 Bar/ 3 PSI (relative pressure)

• Never use graphite crucible in the alumina tube.

• Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.

• Never heat the furnace while the gas release valve is closed and a positive pressure condition (>3 psi) exists within the furnace chamber.

• The flow rate of working gas should be limited to < 200 SCCM ( or < 200ml/min )
