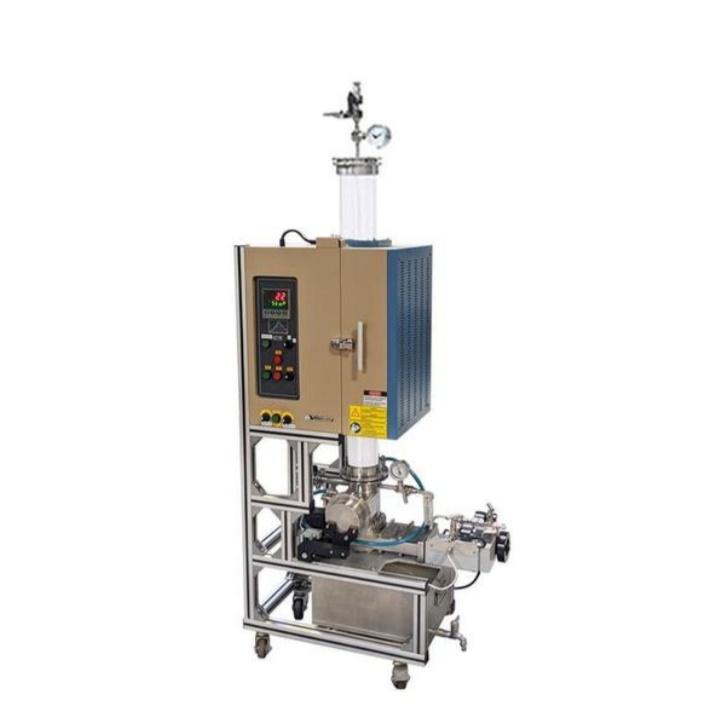

Lab 1200C High Temperature 4 Tube Atmosphere Controlled Vertical Quenching Furnace

OTF-1200X-VTQ-4 is a split Vertical Quenching Tube Furnace with a vacuum-sealed 100mm (4") diameter quartz tube and liquid quenching tank, which is designed for quenching samples from high temperature ( Max. 1200oC) to ice water or oil to study material phase transition and microstructure.
(Auto electromagnetic sample release flange is added since 07/21/2016)

SPECIFICATIONS

Furnace Structure

Double-layer steel structure with air cooling to keep case temperature < 65^oC
Vertical and splittable for easy installation.
Liquid quenching tank is connected to a 4" quartz tube via a gate valve and allows the sample to drop to liquid container
Click the picture left for detail

Power

3 KW

Voltage

AC 208-240V Single Phase, 50/60 Hz

Max. Temperature

1200^oC < 1 hrs

Continuous Temperature

1100^oC < continuous

Max. Heating Rate

<= 20^oC /min, recommended heat: <= 10^oC /min

Tube Size and Materials

One 101 OD x 92 ID x 1000L mm (4" x 40") Quartz Tube included

Heating Zone

Heating Zone length: 440mm
Constant Temperature 150 mm within+/- 1^oC)

Temperature Controllers

30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.
Over-temperature protection and alarm allow for operation without attendant(s).
+/- 1 ºC temperature accuracy.
One K-type thermocouple.
RS485 Communications Port.

Electromagnet Sample Release Flange & Quenching

Full automatic electromagnet sample release flange
Hinged plate hooks the cable, which pulls the sample.
Hinged plate drops when the electromagnet powers off. The sample and the cable fall into the quenching tank.
Rings are available for hanging the tube block with cables.
Bottom flange is connected with a 4" gate valve (manual operated) via CF-100 adaptor
The gate valve is connected with a quenching media container in size 400 x400 x 200 H ( mm )
Caution: You must use ice water or cooled oil as a quenching agent if quenching under a vacuum.

1. Flange Structure 2. Flange Operation 3. Gate Valve 4. Quenching Tank 5. Quenching 6. Pulling Cable

Compared to electromagnet cable drop quenching, the traditional approach (Cable Cut Quenching) consumes cables.

Trad. Quenching in Air Trad. Quenching in Vacuum

Gas Purification and Circulation
(Optional)

RMP-1 is an automatic recirculating moisture and oxygen purification system, which can provide an environment with moisture and oxygen concentrations lower than 1 ppm for MTI's furnaces and gloveboxes.
Two columns of Molecular sieves are built in the system. One is for removing oxygen and another is for removing moisture up to < 1 PPM
The automatic pressure control system is built in to keep the pressure at a constant level
6" color PLC touch panel is included which can set and display the humidity and pressure level
Oxygen sensors and moisture sensors are included.

Hermetic Quenching Tank
(Optional)

Hermetic quenching tank is optional for air-sensitive materials, which enables the entire quenching process under atmosphere control
Please contact MTI for further inquiries.

Vacuum Level

0.05 torr (Depends on the vacuum pump)
Click the Picture below to order the vacuum pump separately

Heating Element

Fe-Cr-Al Alloy doped by Mo

Dimension

660L × 400 W × 1450 H (mm)

Net Weight

~85Kg (excluding mobile cart)

Shipping weight

500lbs

Warranty

One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

Laptop,& Control (Optional)

Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use.
Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
A wireless remote control provides up to 300 meters of operating range.
