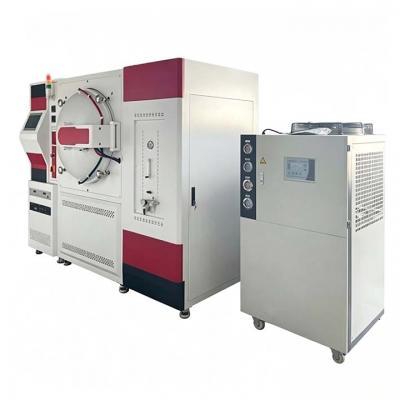

Vacuum Molybdenum Strip Furnace for High Temp Operation up to 1500C Featuring Selectable Chamber Dimensions
Features
Controller: Features an intelligent system with 30-segment programmable heating curves.Heating and temperature control accuracy reaches ±1°C.
High-Temperature Molybdenum Strip: Heated by molybdenum strips inside the chamber, ensuring uniform heating, high cleanliness, and excellent process ability.
Tight Fit: Equipped with sensor failure detection, accompanied by audible and visual alarm prompts.
Easy Operation: High degree of automation with a user-friendly human-machine interface for convenient and efficient operation.
Specification
|
Item |
Specification |
|
Voltage (AC) |
380V |
|
Temperature Control Accuracy |
±1℃ |
|
Chamber Size (L×W×H) |
400×200×200 mm 400×350×300 mm 600×400×400 mm 900×600×600 mm |
|
Working Temperature |
Room Temperature ~ 1500℃ |
|
Max. Temperature |
1500℃ |
|
Heating Element |
High-Temperature Molybdenum Sheets |
|
Max. Heating Rate |
1-20℃/min (adjustable) |
|
Atmosphere |
Nitrogen (N₂), Argon (Ar), Hydrogen (H₂) and other gases available |
|
Heating Power |
42 kW / 67 kW / 105 kW / 185 kW |
|
Insulation Material |
Molybdenum + Stainless Steel Sheets |
|
Vacuum Level |
6.67×10⁻³ Pa (Mechanical Pump + Diffusion Pump) 6.67×10⁻⁴ Pa (Mechanical Pump + Molecular Pump) |
|
Control System |
Fully automatic control system with temperature calibration and compensation functions; 30-segment time-temperature curve programmable |
