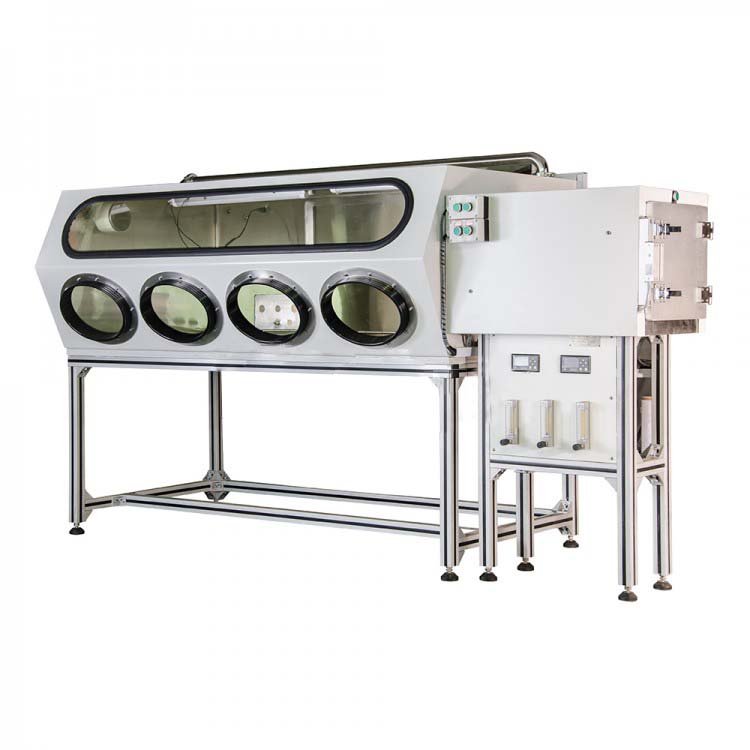

Oval Opening Duplex Stainless Steel Glove Box with Square Transition Chamber
Product Overview：
The TMAX Lab2000 elliptical mouth glovebox duplex super clean glovebox with square transition chamber is designed for research in materials science, chemistry, semiconductor and related industries. It adopts German BASF oxygen removal material and American UOP high-efficiency water absorption material, the water and oxygen content in the glove box can be continuously maintained for a long time with gas purity below 1ppm in a high clean and high purity ultra-low water and oxygen environment, hand/automatic control system air pressure; hand/automatic control system purification status; automatic control of the gas purification system reduction process; automatic prompt, alarm function; system control parameter setting; system parameter recording; system actuator working condition monitoring; transparent front panel makes operation more convenient and easy, widely used in the preparation of nanomaterials and battery electrode materials.
Product features：
Water content <0.1ppm
Oxygen content <0.1ppm
Leakage rate <0.001 vol%/h
Modular design of the solenoid valve
SIMENS microprocessor controller
HEPA high efficiency filter
Variable frequency energy saving control system
Multiple warning function prompts
Oval glove opening
Vacuum heated oven with large transition chamber
Uses of the product：
1、MOCVD technology in the semiconductor industry
2、Special lamps (HID) development and production
3、Microelectronics, laser and plasma welding
4, OLED/PLED development and production
5、Lithium-ion battery development and production
6、Inorganic/Organic Chemistry Research
7、Metal halide/metal powder/ceramic powder research
8、Nanomaterials research
9、Catalyst research
10、YAG laser welding
11、Food microbiological testing
12、Healthcare clinical specimen testing
Technical parameters：
|
Boxes |
||
|
Description |
Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Dimensions: 1800mm(L) x 890mm(W) x 620mm(H) |
|
|
Volume |
1 m³ |
|
|
Front window |
Panel: 8 mm thick safety toughened glass |
|
|
Glove opening |
Hard aluminium or paraformaldehyde (optional) |
|
|
Gloves |
10" glove made of butyl rubber |
|
|
Filters |
Outlet and inlet filters, filtration <0.3μm |
|
|
Lighting |
LED lighting on the top of the box |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to Class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
Stand-alone GP20 gas purification system |
||
|
Description |
Automatic removal of H2O and O2 Single clean-up column system with automatic regeneration (optional GP200 double clean-up column) Sealed gas circulation lines |
|
|
Voltage used |
AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional) |
|
|
Working gases |
Working gases: N2, Ar, He (purity ≥ 99.999%) Regenerative gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%) |
|
|
Vacuum pumps |
Specifications: Rotary vane vacuum pump with oil mist filter, with gas ballast control Flow rate: 12 m³/h (7 cfm), double baseplate, vacuum < 2 x 10-3 mbar or dry pump (optional) |
|
|
Circulation units |
Oil-free high-speed fans Air volume: 0-100 m³/h |
|
|
Valves |
German Bauder solenoid valve |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
Control cabinet dimensions |
600mm (L) x 800mm (D) x 870mm (H) |
|
|
Square transition cabin |
||
|
Large Transitional Cabin |
Description |
Internal foreign trade interlock to avoid the rise of water and oxygen content caused by operation errors Adopted German WIKA vacuum oil gauge |
|
Materials |
Stainless steel type 304 (1.4301), thickness 6 mm |
|
|
Size |
670mm(L) x 350mm(W) x 320mm(H) |
|
|
Vacuum level |
< 1 x 10-2 mbar |
|
|
Cleaning systems |
||
|
Description |
By setting the corresponding time and pressure, the system can automatically displace the gas to the chamber. |
|
|
Analyzers |
||
|
Oxygen analyser |
Size |
205 mm (L) x 80 mm (W) x 60 mm (H) |
|
Measurement range |
0-1000 ppm |
|
|
Other Oxygen Analysers |
GE oxy.IQ™ Oxygen Transmitter |
|
|
Moisture analyser |
Size |
205 mm (L) x 80 mm (W) x 60 mm (H) |
|
Measurement range |
0-500 ppm |
|
|
Other water analysers |
GE VeriDri™ Dew Point Transmitter or GE Series 6 |
|
