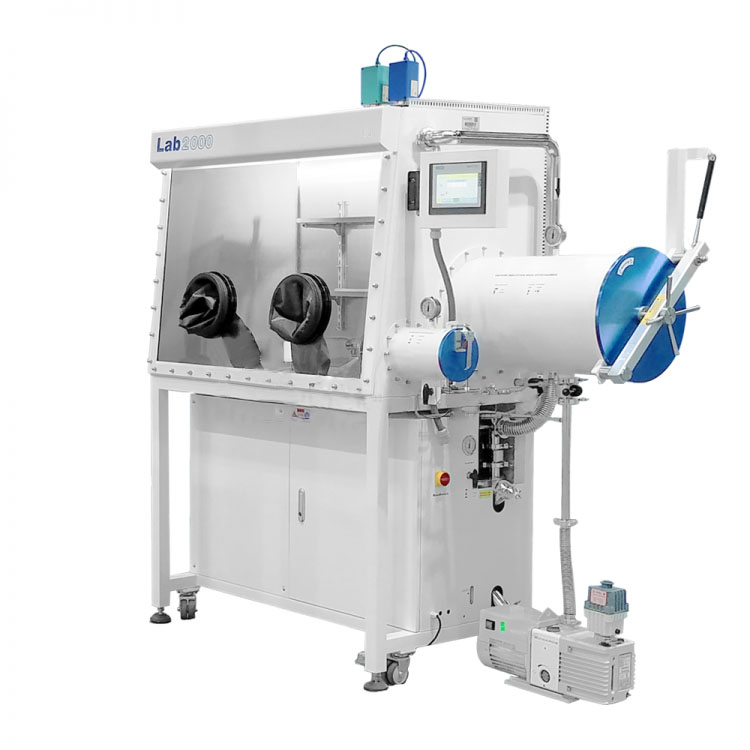

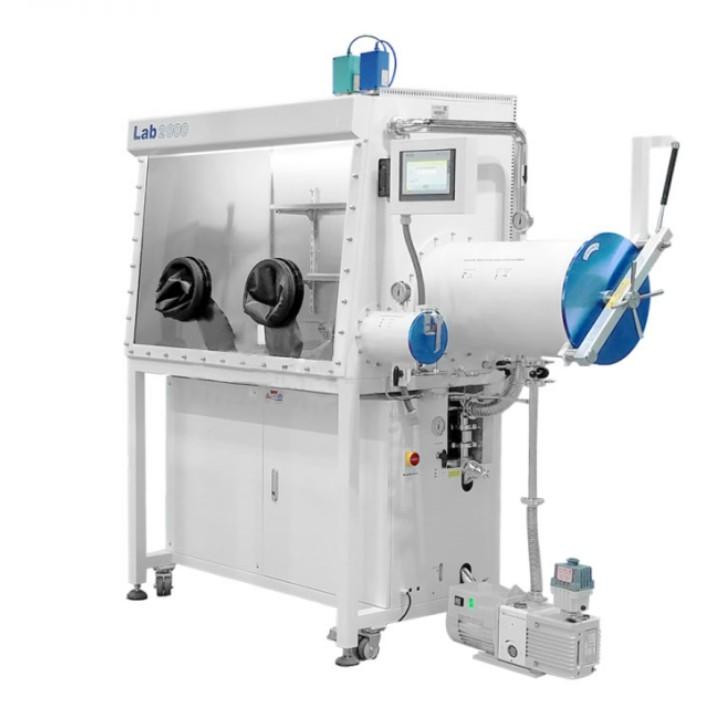

New 2018 Lab2000 Big Single Station Purification Glove Box
Product Overview：
The Lab2000 glovebox is a high performance, high quality, automatic water and oxygen molecule absorption super purification glovebox that provides a closed loop working system for purification work environment requirements that can meet your specific cleaning requirements applications with an inert 1ppm O2 and H2O atmosphere. The system is an economical recirculating purification system designed to meet customer research and development.
The Lab2000 system consists of a closed chamber, a transition chamber, an imported rotary vane vacuum pump and a recirculating purification system with an integrated microcontroller operating panel. The standard Lab2000 system is equipped with an inert gas purification system with a set of purification columns (fully automatic and renewable) to purify and maintain the atmosphere inside the glove box.
Widely used in water-free, oxygen-free and dust-free ultra-pure environments such as: lithium-ion batteries and materials, semiconductors, supercapacitors, special lamps, laser welding, brazing, material synthesis, OLED, MOCVD, etc. It also includes biological applications such as anaerobic bacteria culture, cellular hypoxic culture, etc.
Product features：
Simple: manufactured in strict accordance with German process standards and operated by Siemens 7" touch screen, the operating interface is simple and easy to use.
Safety: modular design, professional leak-free sealing technology, ultra-low leakage rate ≤ 0.001%, (industry standard ≤0.050%), strictly according to the standard "EJ_T1096_1999_sealing chamber sealing classification and its test method" in the first class sealed chamber acceptance.
High efficiency: ultra-low water oxygen ≤ 1ppm, up to 0.1ppm, imported purification materials, high adsorption efficiency, regenerated once a year, reuse.
Energy-saving: ultra-low power of the whole machine, intelligent control of the fan and vacuum pump.
Water content＜0.1ppm
Oxygen content＜0.1ppm
Leakage rate＜0.001vol%/h
Modular design of solenoid valve
SIMENS microprocessor controller
HEPA high efficiency filter
Variable frequency energy saving control system
Multiple warning function prompts
System upgrades for a wider range of uses
Uses of the product：
1. MOCVD technology in the semiconductor industry
2. Special lamps (HID) development and production
3. Microelectronics, laser and plasma welding
4. OLED/PLED development and production
5. Lithium-ion battery development and production
6. Inorganic/Organic Chemistry Research
7. Metal halide/metal powder/ceramic powder research
8. Nanomaterials research
9. Catalyst research
10. YAG laser welding
11. Food microbiological testing
12. Healthcare clinical specimen testing
Technical parameters：
|
Boxes |
||
|
Description |
Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Dimensions: 1200mm(L) x 750mm(W) x 900mm(H) |
|
|
Volume |
0.8 m³ |
|
|
Front window |
Panel: 8 mm thick safety toughened glass or 10 mm thick polycarbonate (optional) Dimensions: 1123mm(L) x 839mm(H) |
|
|
Glove opening |
Hard aluminium or paraformaldehyde (optional) Calibre 220 mm, O-ring seal |
|
|
Gloves |
Material: butyl rubber Thickness: 0.4 mm or 0.8 mm (optional) |
|
|
Filters |
Outlet and inlet filters, filtration <0.3μm |
|
|
Lighting |
LED lighting in the upper part of the front window roof |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to Class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
GP20 gas purification system |
||
|
Description |
Automatic removal of H2O and O2 Single clean-up column system with automatic regeneration (optional GP200 double clean-up column) Sealed gas circulation lines |
|
|
Voltage used |
AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional) |
|
|
Working gases |
Working gases: N2, Ar, He (purity ≥ 99.999%) Regenerative gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%) |
|
|
Vacuum pumps |
Specifications: Rotary vane vacuum pump with oil mist filter, with gas ballast control Flow rate: 12 m³/h (7 cfm), double baseplate, vacuum < 2 x 10-3 mbar or dry pump (optional) |
|
|
Circulation units |
Oil-free high-speed fans Air volume: 80 m³/h |
|
|
Valves |
KF40 High vacuum valve |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
Control cabinet dimensions |
600mm (L) x 800mm (D) x 870mm (H) |
|
|
Transition cabin |
||
|
Large Transitional Cabin |
Materials |
Stainless steel type 304, thickness 3 mm |
|
Size |
φ360mmx600mm(L) or φ390mmx600mm(L) (optional) |
|
|
Vacuum level |
< 1 x 10-2 mbar |
|
|
Small Transitional Cabin |
Materials |
Stainless steel type 304, thickness 2 mm |
|
Size |
φ150mm x 330mm(L) |
|
|
Vacuum level |
< 1 x 10-2 mbar |
|
|
Cleaning systems |
||
|
Description |
By setting the corresponding time and pressure, the system can automatically displace the gas to the chamber. |
|
|
Analyzers |
||
|
Oxygen analyser |
Size |
205 mm (L) x 80 mm (W) x 60 mm (H) |
|
Measurement range |
0-1000 ppm |
|
|
Other Oxygen Analysers |
GE oxy.IQ™ Oxygen Transmitter |
|
|
Moisture analyser |
Size |
205 mm (L) x 80 mm (W) x 60 mm (H) |
|
Measurement range |
0-500 ppm |
|
|
Other water analysers |
GE VeriDri™ Dew Point Transmitter |
|
|
Solvent purification systems |
||
|
Description |
Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Internal dimensions: 220mm(Φ) x 450mm(H) High quality activated carbon |
|
|
Optional equipment |
||
|
Refrigerator |
Independent control system, integrated in the side panel of the chamber, temperature -35°C, volume 18L or 32L available Main body 304 stainless steel sheet, 5 variable compartments R404 environmentally friendly refrigerant, imported |
|
|
Heated cabin |
Large transition configuration heating system at 200°C with ±1°C temperature control |
|
IPv6 network supported
