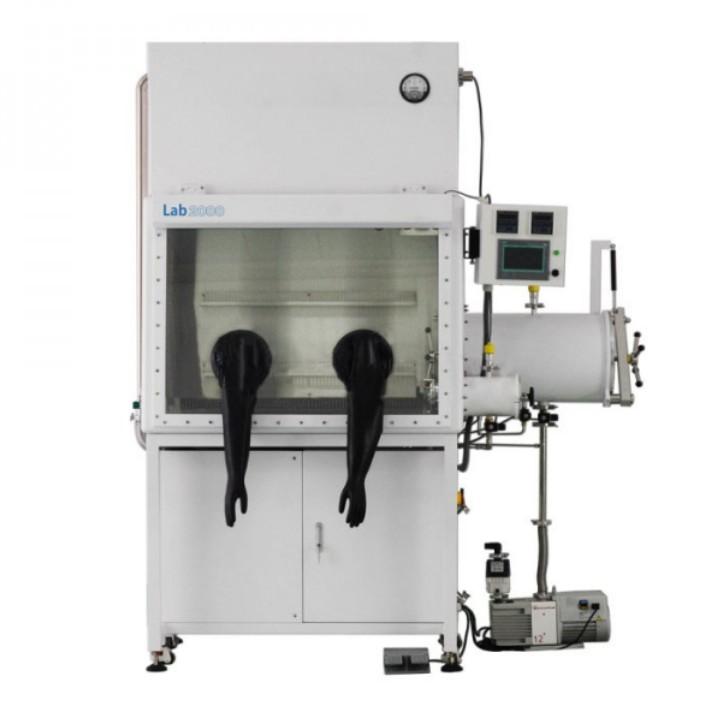

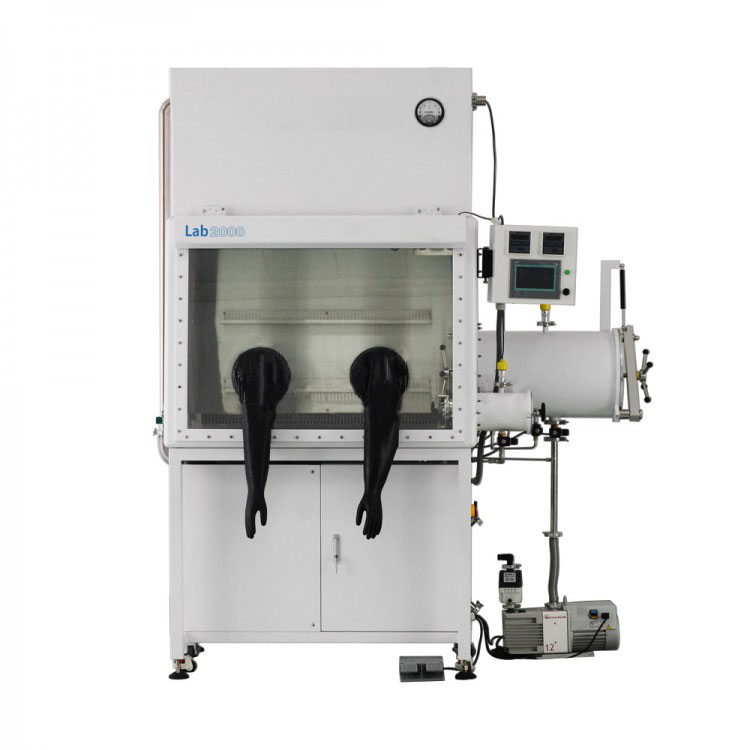

Lab Class100 Laminar Flow Water Oxygen System Glove Box
Description:
Laminar flow 100-stage glove box with high efficiency filter, water oxygen
fan from the FFU item (closed circuit), which draws in the gas and sends the clean gas back to the box after being filtered by primary and high efficiency filters.
R404 environmentally friendly refrigerant, original import
Features:
Excellent uniform gas distribution performance
Air speed can be adjusted
99.999% filtration efficiency
Inside the box
Accessories list：
|
No. |
Accessory Name |
Quantity |
Unit |
Accessory pictures |
|
1 |
KF25 Clamp |
3 |
sets |
|
|
2 |
KF25 Bellow |
1 |
pc |
|
|
3 |
Gloves |
3 |
pcs |
|
|
4 |
Glove seals |
6 |
pcs |
|
|
5 |
Eduard vacuum pump |
1 |
pc |
|
|
6 |
Oil mist filter |
1 |
pc |
|
|
7 |
Water Analyser |
1 |
pc |
|
|
8 |
Oxygen analyser |
1 |
pc |
|
|
9 |
Instruction manual |
1 |
pc |
|
Technical parameters：
|
Boxes |
||
|
Description |
Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Net dimensions: 1200mm(L) x 750mm(W) x 900mm(H) Overall dimensions: 1990mm(L) x 975m(W) x 2500mm(H) |
|
|
Volume |
0.8 m³ (box headroom) |
|
|
Front window |
Panel: 8 mm thick safety toughened glass or 10 mm thick polycarbonate (optional) Dimensions: 1123mm(L) x 839mm(H) |
|
|
Glove opening |
Hard aluminium or paraformaldehyde (optional) Calibre 220 mm, O-ring seal |
|
|
Gloves |
Material: butyl rubber Thickness: 0.4 mm or 0.8 mm (optional) |
|
|
Filters |
Outlet and inlet filters, filtration <0.3μm |
|
|
Lighting |
LED lighting in the upper part of the front window roof |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to Class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
GP20 gas purification system |
||
|
Description |
Automatic removal of H2O and O2 Single clean-up column system with automatic regeneration (optional GP200 double clean-up column) Sealed gas circulation lines |
|
|
Voltage used |
AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional) |
|
|
Working gases |
Working gases: N2, Ar, He (purity ≥ 99.999%) Regenerative gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%) |
|
|
Vacuum pumps |
Specifications: Rotary vane vacuum pump with oil mist filter, with gas ballast control Flow rate: 12 m³/h (7 cfm), double baseplate, vacuum < 2 x 10-3 mbar or dry pump (optional) |
|
|
Circulation units |
Oil-free high-speed fans Air volume: 80 m³/h |
|
|
Valves |
KF40 High vacuum valve |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
Control cabinet dimensions |
600mm (L) x 800mm (D) x 870mm (H) |
|
|
Transition cabin |
||
|
Large Transitional Cabin |
Materials |
Stainless steel type 304(1.4301), thickness 3 mm |
|
Size |
φ360mmx600mm(L) or φ390mmx600mm(L) (optional) |
|
|
Vacuum level |
< 1 x 10-2 mbar |
|
|
Small Transitional Cabin |
Materials |
Stainless steel type 304, thickness 2 mm |
|
Size |
φ150mm x 330mm(L) |
|
|
Vacuum level |
< 1 x 10-2 mbar |
|
|
Cleaning systems |
||
|
Description |
By setting the corresponding time and pressure, the system can automatically displace the gas to the chamber. |
|
|
Analyzers |
||
|
Oxygen analyser |
Size |
205 mm (L) x 80 mm (W) x 60 mm (H) |
|
Measurement range |
0-1000 ppm |
|
|
Other Oxygen Analysers |
GE oxy.IQ™ Oxygen Transmitter |
|
|
Moisture analyser |
Size |
205 mm (L) x 80 mm (W) x 60 mm (H) |
|
Measurement range |
0-500 ppm |
|
|
Other water analysers |
GE VeriDri™ Dew Point Transmitter |
|
|
Solvent purification systems |
||
|
Description |
Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Internal dimensions: 220mm(Φ) x 450mm(H) High quality activated carbon |
|
|
100-stage laminar flow purification system |
||
|
Description |
Fan from the FFU item (closed circuit), the gas is sucked in and sent back to the box after the clean gas is filtered by primary and high efficiency filters. R404 environmentally friendly refrigerant, originally imported |
|
|
Features |
Excellent uniform gas distribution Adjustable air speed 99.999% filtration efficiency Inside the chamber |
|
|
Final technical specification |
||
|
Water content in the chamber under standard conditions (Note: Standard condition is one atmosphere, temperature 20°C) |
≤1ppm |
|
|
Oxygen content in the chamber under standard conditions (Note: standard condition is one atmosphere and temperature 20°C) |
≤1ppm |
|
|
Chamber leakage rate (Note: Standard case is one atmosphere, temperature 20°C) |
≤0.05vol%/h |
|
|
Gas cleanliness in the chamber |
Hundred levels |
|
