Instrument model

PC-600C/CG(500℃)

Pressure range

0-5.0 tons

Piston diameter

Chrome plated cylinder φ50mm (d)

Overall structure of main body

Equipment without sealing connection to reduce oil leakage point

Mold heating temperature

Room temperature -300.0℃/500.0℃

Constant temperature time

1sec~∞sec

Temperature control precision

0.1℃

Insulation method

Imported heat insulation board

Cooling method

Water-cooled rapid cooling [water cooler optional]

Mould size

Double plate heating 120*120mm(M*N)

Working space

140*140*60mm

Size of the whole machine

250*230*390mm (L*W*H)

Power supply

700W(220V/110V can be customized)

Main machine weight

55Kg

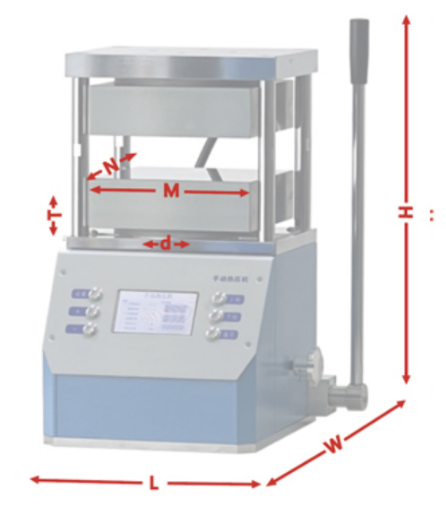

Dimensions of powder tablet press
