Instrument model

PC-600D1

Pressure range

0-10.0tons

Piston diameter

65mm (d) in chrome plated oil cylinder

Main overall structure

Equipment without sealed connections to reduce oil leakage points

Mold heating temperature

Room temperature -300.0℃/500.0℃

Holding time

1 second~0 seconds

Precision

0.1℃

Insulation method

Imported insulation board

Cooling method

Quick cooling with water cooling [optional water cooling machine]

Die size

Double plate heating 180*180mm (M*N)

Workspace

180*180*60mm

Dimensions

290*290*420mm (L*W*H)

Power supply

1000 W(220V/110Vcan be customized)

Weight

90 Kg

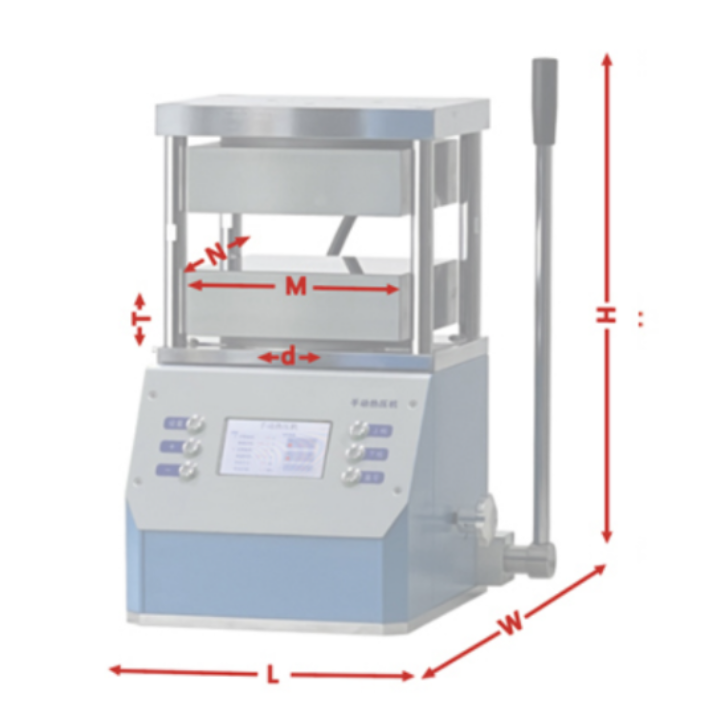

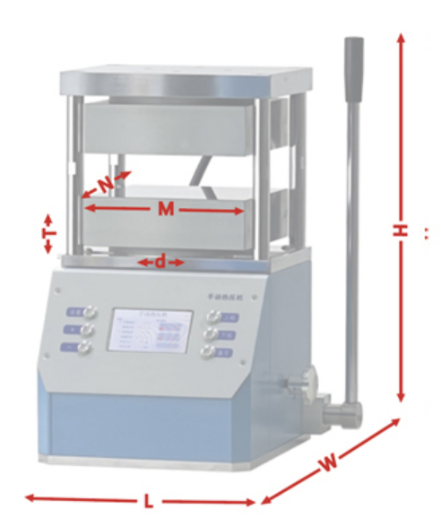

Dimensional diagram of powder tablet press
