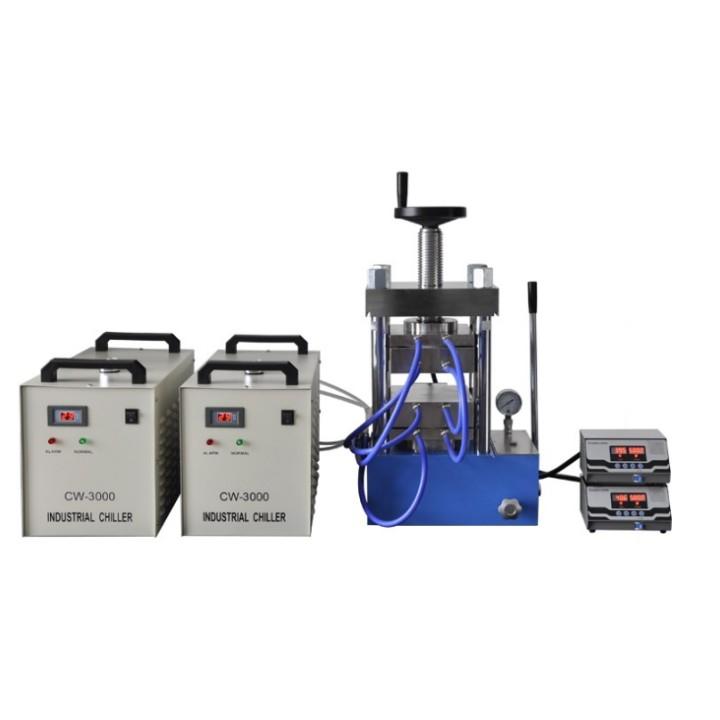

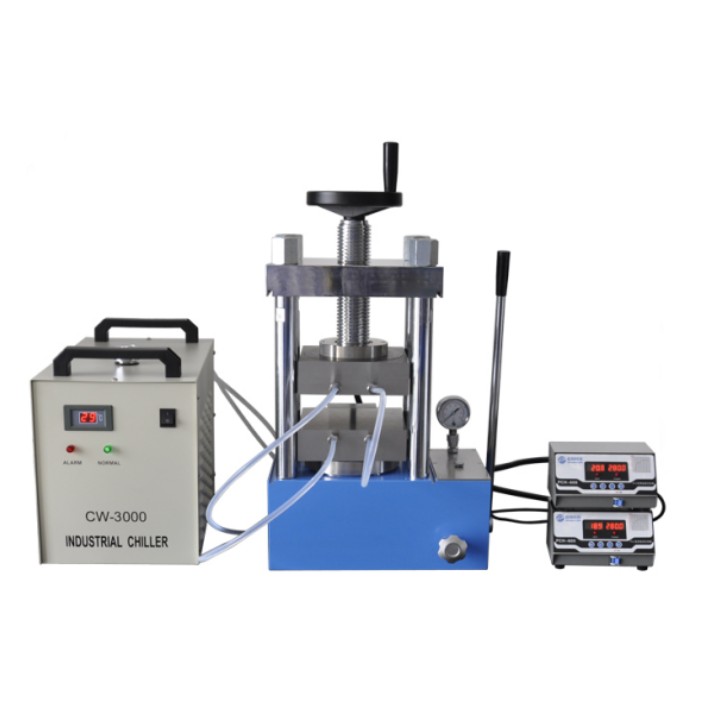

Lab 300°C or 500°C Double Plate Hot Press with Big Heating Die




New RYJ-600D series double plate hot pressing machine compared with RYJ-600C series the biggest difference this machine adopts widened panel design, can meet the hot pressing experiment of larger samples, equipped with two temperature controllers, can separately control the temperature of two plates heating, pressing film thickness up to 50um-500um, suitable for polymer materials, Plastic film and rubber products and other materials of experimental research, can also be used as a small flat vulcanizing instrument, suitable for rubber, plastic, leather, chemical, pigment, electronic appliances, textiles, hardware and other fields.


Main technical parameters

Product name

RYJ-600D1

RYJ-600D2

RYJ-600DG1

RYJ-600DG2

Pressure range

0-30T(0-31.5Mpa)

Pressure conversion

1t- 1.05Mpa/ 1Mpa=0.95t

Pistodiameter

ɸ 110mm chrome plating cylinder

Maximum piston stroke

40mm

Type of pressure gauge

Pointer; pressure, pressure double scale display; the range 0 to 40 mpa; accuracy of 1 Mpa

Pressure mode

Manual pressure

Temperature  controller type

PLC programmed temperature controller (double temperature controller)

Temperature control range

RT-600.0C/0. 1C

Type of hot pressing die

Double die heating up and down (polished surface)

Heating die size

180*180mm

200*200mm

180*180mm

200*200mm

Temperature   of hot pressing die

RT-300C

RT-500C

Heating cooling method die

Cooling by natural or water cooler

Cooling by natural or water cooler

 Equipment insulation mode

 Imported heat shield

Imported   heat   insulation  board   + stainless  steel  water  cooling  cycle heat insulation board

Power

220V/ 1000W

220V/2000W

Overall structure

Split structure

Size of the machine

405*260*525mm(The weight of the water cooler is not included)

Weight

About 80-200kg

Model specification

Water cooling machine (optional)

Digital pressure gauge (optional), accuracy of 0.01Mpa,  more accurate pressure control
