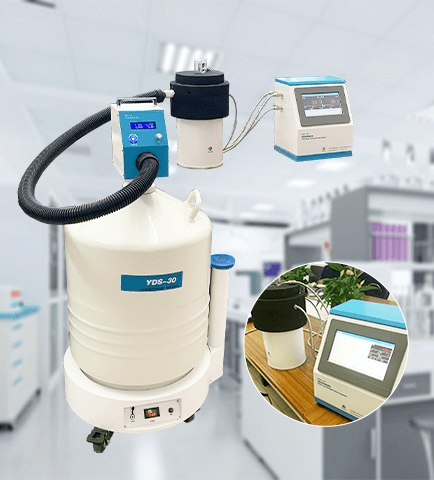

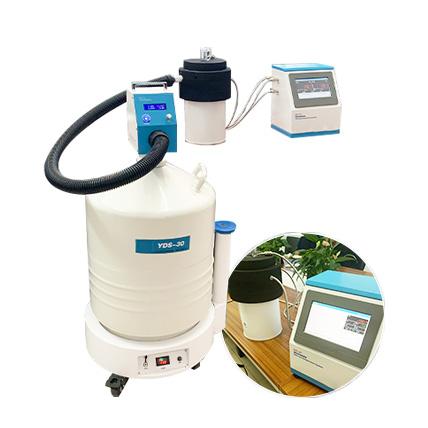

Lab Ultra Low Temperature Constant Temperature System

Product overview

a. Automatic constant temperature, constant temperature range: 80K-room temperature, optional 80K-500K; The constant temperature accuracy is better than 0.1K.

b. Constant temperature chamber volume specification: φ60mm deep 255mm, other volumes can be customized;

c. The constant temperature chamber adopts vacuum adiabatic structure, which greatly reduces heat loss and liquid nitrogen consumption;

d. Liquid nitrogen container volume: standard 30L, optional 50L, 100L;

Product introduction

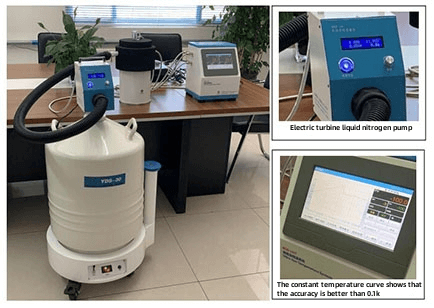

BSD-LNT type ultra-low temperature constant temperature system, is the use of liquid nitrogen and liquid nitrogen steam for low temperature control system, can accurately achieve the ultra-low temperature from 80K above the range of any temperature;

Main parameter

a. Automatic constant temperature, constant temperature range: 80K-room temperature, optional 80K-500K; The constant temperature accuracy is better than 0.1K.

b. Constant temperature chamber volume specification: φ60mm deep 255mm, other volumes can be customized;

c. The constant temperature chamber adopts vacuum adiabatic structure, which greatly reduces heat loss and liquid nitrogen consumption;

d. Liquid nitrogen container volume: standard 30L, optional 50L, 100L;

e. The use of special liquid nitrogen temperature is still soft liquid nitrogen pump pipe and insulation material, to ensure the convenience of operation and long service life;
