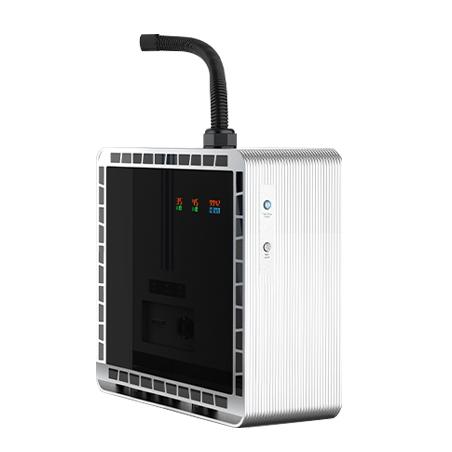

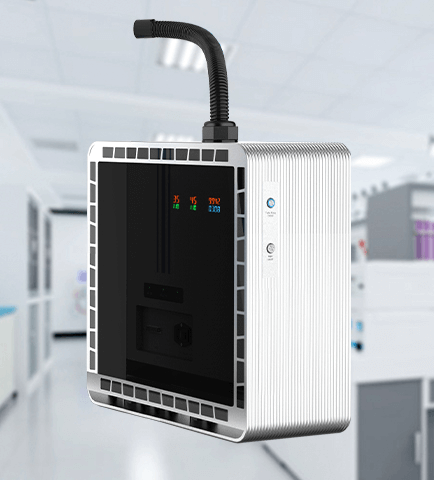

Lab Multicomponent Spectrometer Gas Analyzer

Product Overview:

a. Quadrupole mass spectrometry: INFICON online mass spectrometry (origin: USA, Certificate of origin and original factory calibration test certificate);

b. Mass number: Default 1-100amu; Optional 1-200amu or 1-300amu;

c. Filament: Iridium plated filament, 2 sets, one with one standby, software switch;

d. Resolution: Better than 0.5ppm (40amu);

e. Scanning speed: up to 1.8 ms /amu, scanning step 0.1amu;

Main Parameters:

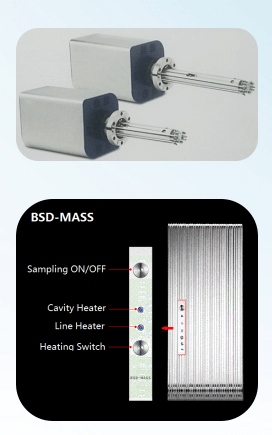

a. Quadrupole mass spectrometry: INFICON online mass spectrometry (origin: USA, Certificate of origin and original calibration test certificate);

b. Mass number: default 1-100amu; Optional 1-200amu or 1-300amu;

c. Filament: Iridium plated filament, 2 sets, one with a spare, software switch;

d. Resolution: better than 0.5ppm (40amu);

e. Scanning speed: up to 1.8 ms /amu, scanning step 0.1amu;

f. Minimum detectable partial pressure: 2E-15Torr (4s residence time)

g. Gas sampling flow: The default can be as low as 2SCCM micro-flow sampling, the minimum can be 0.2SCCM ultra-fine sampling; (Compared with other international brands, it completely avoids the disadvantages of large flow sampling inhalation air)

h. Response speed: It can keep ultra-fast response with response time less than 1 second under the micro-flow sampling volume of < 2SCCM; (No need for large flow sampling to improve response speed)

i. Shunting system: With high precision shunting system is fast and sensitive response speed guarantee.

j. Soft ionization function: the ion source electronic energy software can be adjusted to provide higher resolution.

k. Turbomolecular pump: Edward, pumping speed 85L/s, 100KRPM, limit vacuum 1*10E-12mbar;

l. Dry pump: scroll dry pump, pumping speed 20L/S, limit vacuum 1*10E-1mbar;

m. Mass spectrometry cavity: integral cavity, non-welding type, including heating and baking, baking temperature 150℃;

n. Sampling interface: 1.2m inside clean passivated stainless steel capillary sampling device, anti-condensation and anti-clogging protection structure; The default sampling pressure is 100±10kpa, negative pressure or high pressure sampling can be customized;

o. Software analysis system: Germany INFICON, English; Communication interface TCP/IP.

p. Specifications: H510mm*L520mm*W225mm, Weight30kg, high integration.

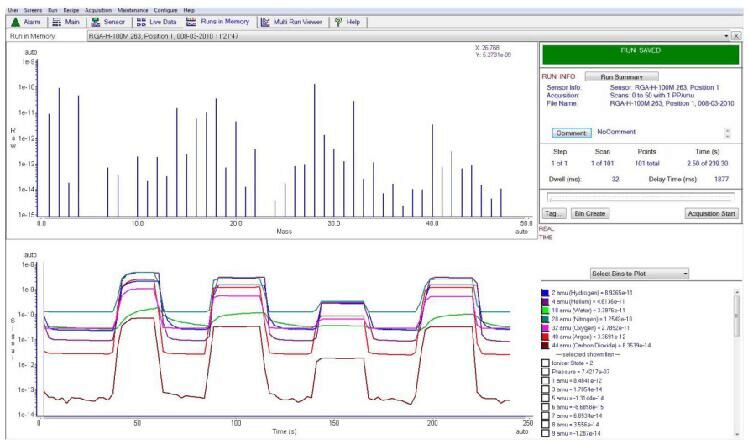

Test report
