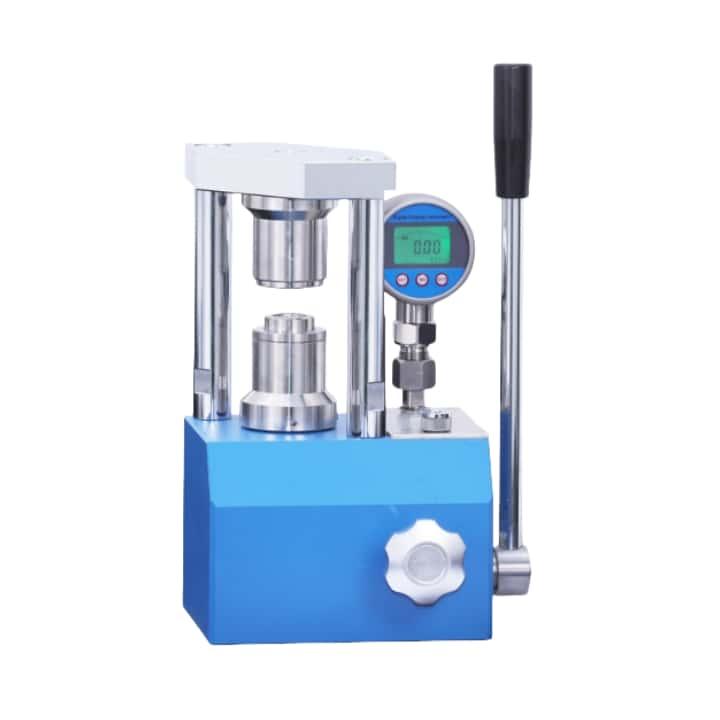

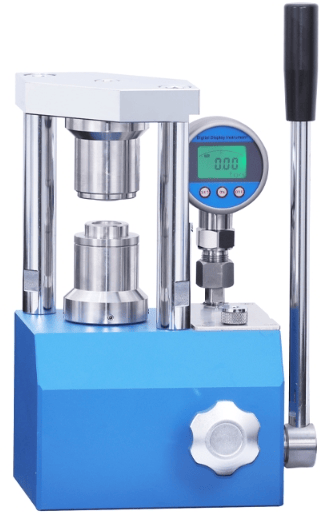

Lab Small Tonnage Manual Coin Cell Sealing Machine Equipped with Digital Display Gauge

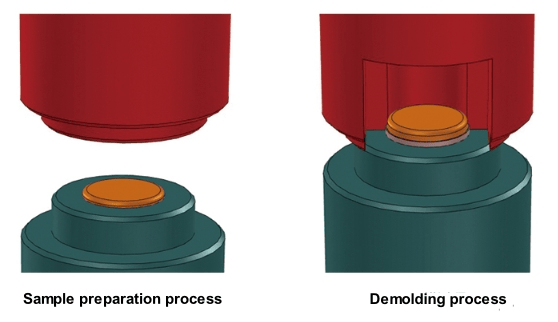

Schematic diagram of mold operation
Operation procedure
Technical parameter
|
Instrument model |
PC-2NS |
|
Pressure range |
0-2T(0-25MPa) |
|
Piston diameter |
Chrome plated cylinder Ф32mm(d) |
|
Overall structure of subject |
Utility model patent 201320040218.0 |
|
Pressure gauge |
The digital display shows 0.00-40.00MPa |
|
Standard mold |
Standard CR20 series package mold |
|
Sealing mold |
Optional CR16, CR20, CR24, CR30, etc |
|
Sealing pressure |
Generally between 0.8-1.2 tons |
|
Remover mold |
Optional CR16, CR20, CR24, CR30, etc |
|
Stripping pressure |
Generally within 0.4 tons |
|
Overall dimension |
210x165x290mm(LxWXH) |
|
Equipment weight |
12kg |
|
Size diagram |
|
