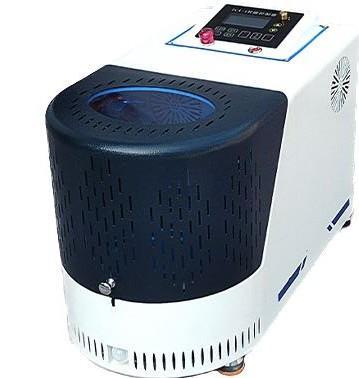

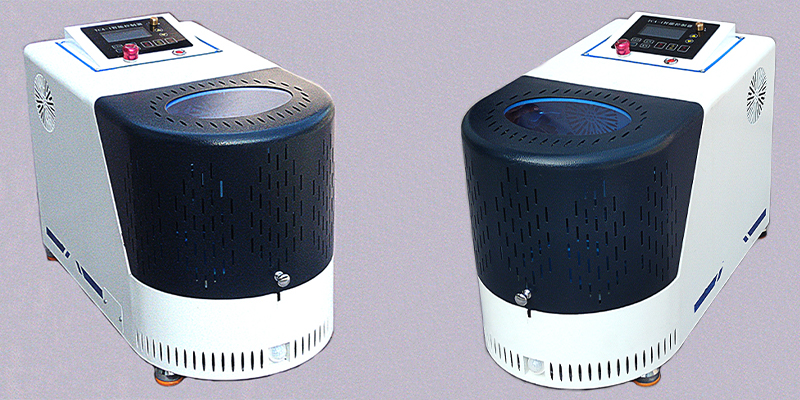

Lab Nano High Speed Planetary Ball Mill with 50ML Vacuum Ball Milling Tank

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PBM-H-0.4A
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Nano High Speed Planetary Ball Mill with 50ML Vacuum


Ball Milling Tank

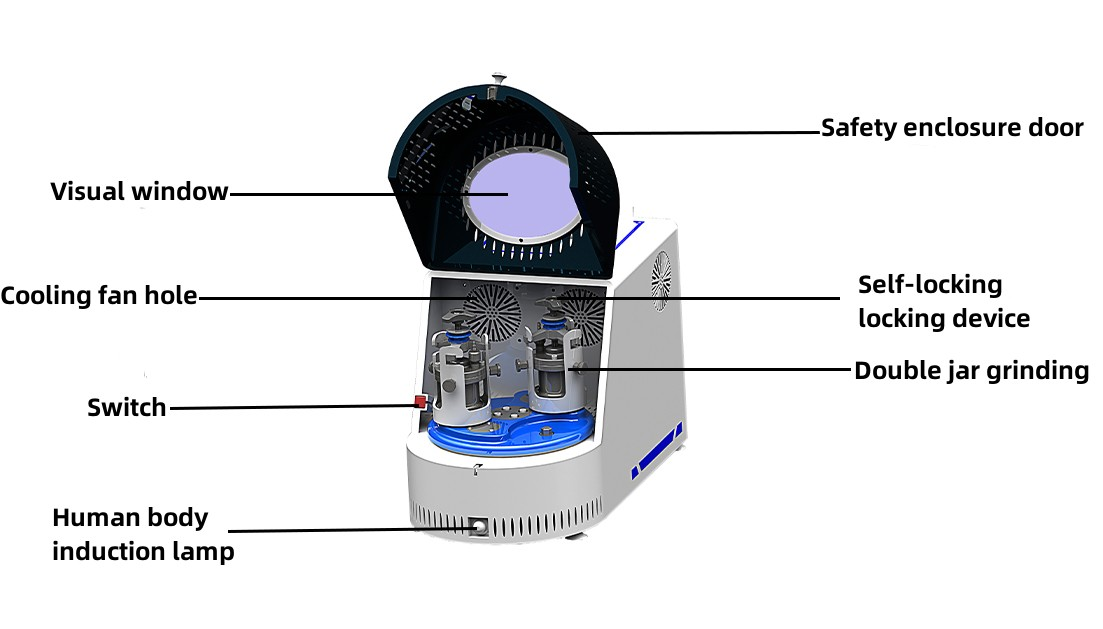

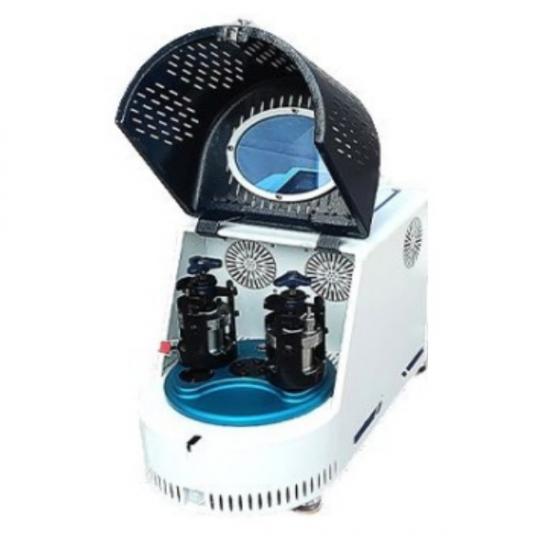

Nano Planetary Ball Mill




Characteristics of high-energy planetary mill


The high-energy ball mill mainly adopts the principle of planetary mill. It drives the medium in the tank to collide, shear and disperse with the material through the high speed centrifugal force. The inner wall of the tank and the ball speed are different, the friction force and impact force between the material and the medium are different, and the high energy generated is different. The self rotating speed of 1630 turns generates high energy (equivalent to 60 times the gravity acceleration), and reliable and reproducible nano grinding results can be obtained in a very short time, This equipment is an ideal equipment for sample mixing and homogenization or mechanical activation and alloying with high efficiency, and is suitable for sample preparation for geology and minerals, pharmacy, mechanical alloying, chemistry, nanotechnology, metallurgy, material research, ceramics, biology, and analysis

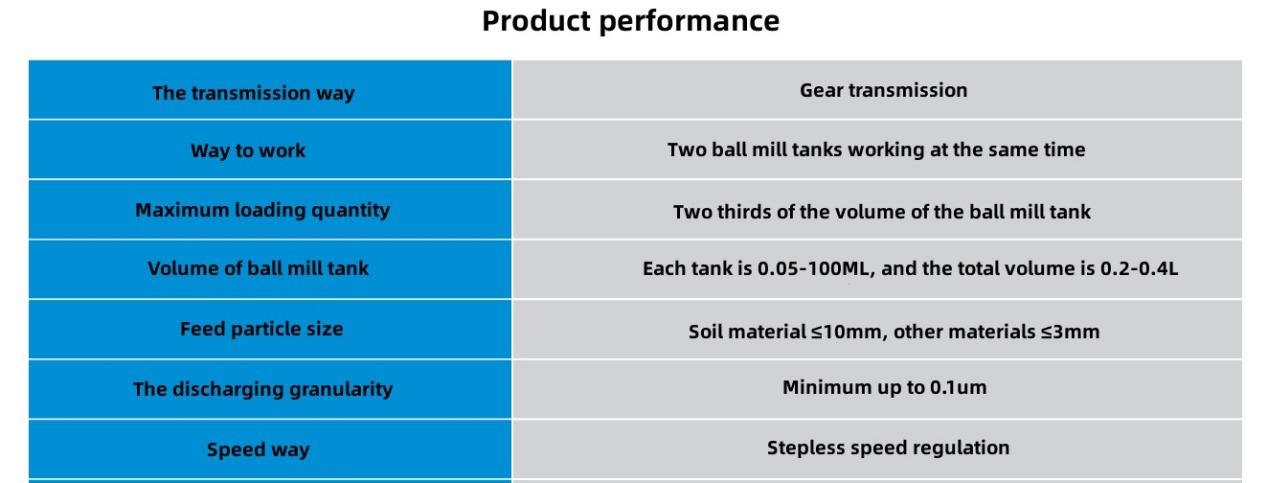

Parameter

Model

PBM-H-0.4A

VolumeL

0.4

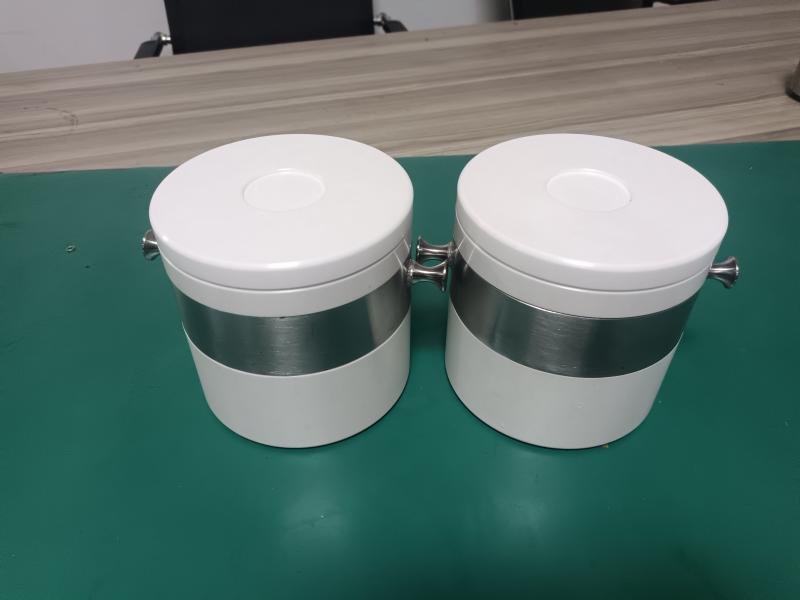

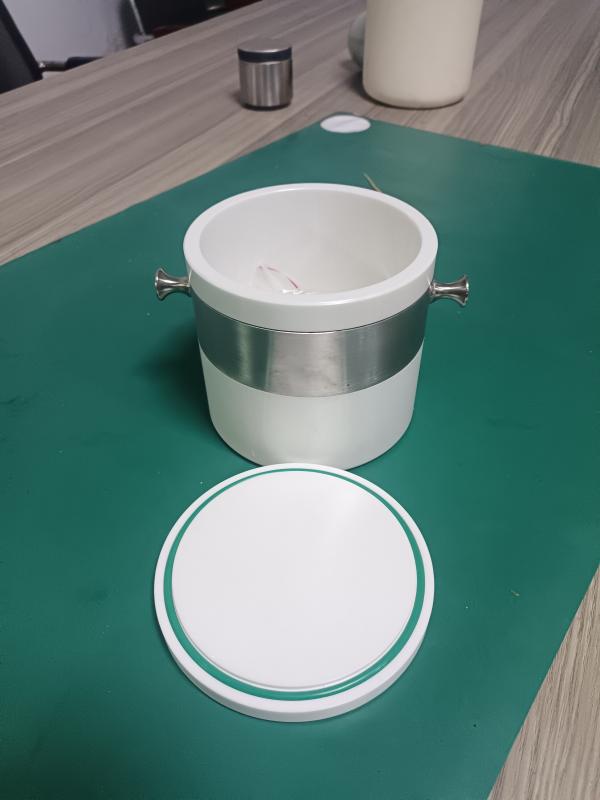

Configurable ball mill tank specifications

50-100ML

NO.

2

Matching vacuum ball milling tank

50ml vacuum ball mill

Standard ball mill tank locking device

Self-locking







Power(Single phase)

Single phase 200V-50HZ

Motor power(KW)

0.37

Total operation setting timemin

1-9999

Alternate running timemin

1-999

Adjustable speed revolution(rpm)

47-815

Adjustable speed rotation(rpm)

94-1630

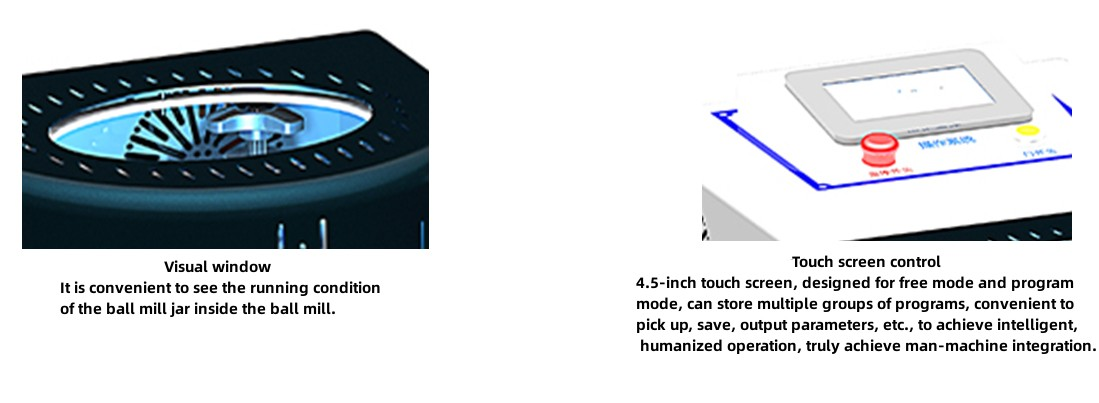

Standard panel (intelligent and touch screen optional)

Ordinary

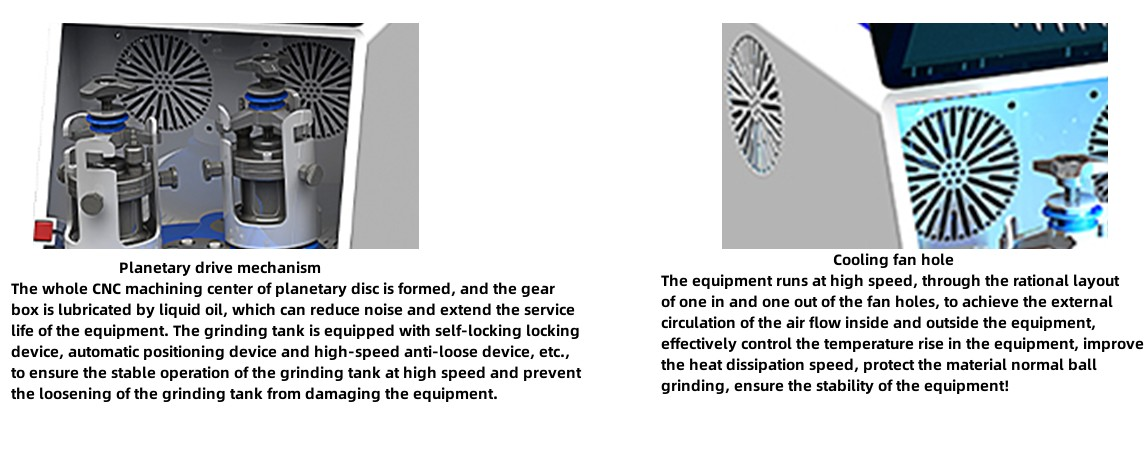

Lubrication method

Lubricating oil

Speed regulation mode

Frequency control

Weightkg

35

Overall dimension(mm)

570*300*450

Noise≤db

55±5
