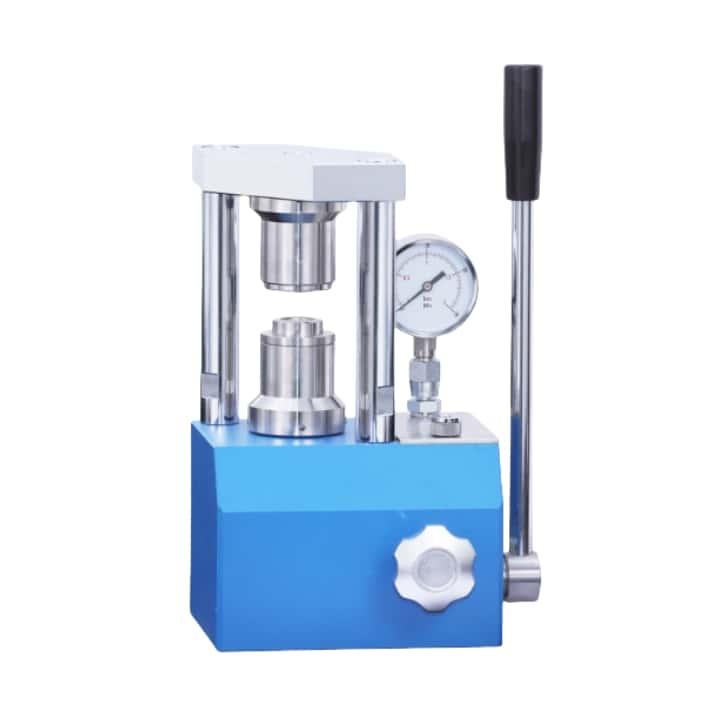

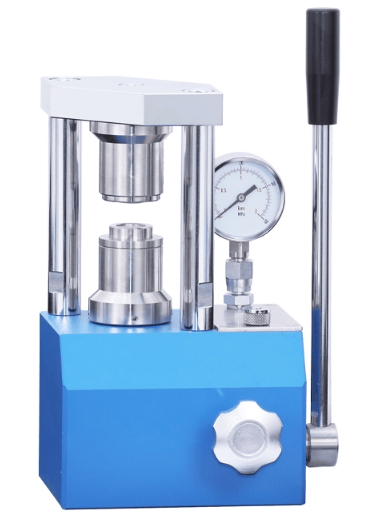

Instrument model

PC-2N

Pressure range

0-2T(0-25MPa)

Piston diameter

Chrome plated cylinder Ф32mm(d)

Overall structure of subject

Utility model patent 201320040218.0

Manometer

Pressure and intensity of pressure double scale display

Standard mold

Standard CR20 series package mold

Sealing mold

Optional CR16, CR20, CR24, CR30, etc

Sealing pressure

Generally between 0.8-1.2 tons

Remover mold

Optional CR16, CR20, CR24, CR30, etc

Stripping pressure

Generally within 0.4 tons

Overall dimension

210x165x290mm(LxWXH)

Equipment weight

12kg

Size diagram
