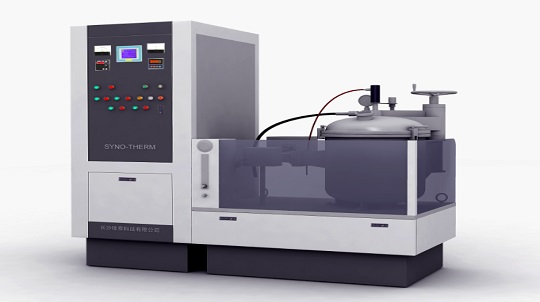

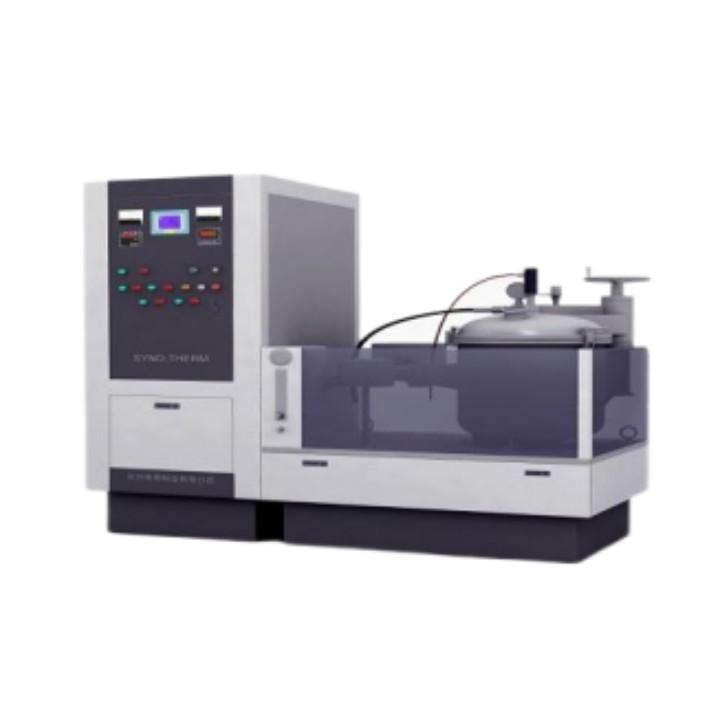

Lab High Temperature Low Vacuum Microwave Sintering Furnace

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-V3000
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab High Temperature Low Vacuum Microwave Sintering Furnace


Microwave Sintering Furnace


Brief Introduction


HAMiLab-V is the 3rd generation of SYNOTHERM high temperature microwave laboratory system.  It's eloquent sophisticated design accents this system's advanced state-of-the-art technology.  It is composed of 4 sub-systems that are integrated to create a truly hands-off experience of processing materials metals, chemical biological samples. The only standard in manufactured high-temperature, high-power research furnaces, HAMiLab-V is composed of a double-layer, water-cooled, vacuum sealed, stainless steel heating chamber that is attached to vacuum gas-infiltration systems that provides a highly controlled environment for processing samples.  Energy is delivered to the sample loads by direct energy transfer from a high precision micro head, capable of delivering up to 6 kW of microwave power to heat samples to temperatures only limited by the state-of-the-art in insulation materials.  This amount of energy delivered at the high efficiency inherent in microwave processing easily heats samples to temperatures above 1600℃ in minutes, not hours. Our energy delivery systems are made, assembled individually tested with care, have unrivalled durability.  They are rated for 5,000 hours of operation.

HAMiLab's control system is equally as sophisticated, giving users complete control over all operational parameters.  Samples are heated cooled on a precise heating schedule that is programmed stored into the system with a touch of button on the liquid crystal touch display.  Each system comes standard with a high-precision optical pyrometer for accurate temperature measurement over a broad range of temperatures up to 2250℃.  Metals, technical ceramics, glasses, PM parts, virtually any system that is studied in a laboratory can be processed in the HAMiLab-V to yield end-products of the finest quality.



Technical specification


Specification

Model

HAMiLab-V3000

Output Power

0.5 – 2.85 kW variable

Microwave Frequency

2450 ± 25MHz

Overall Dimensions (mm)

800 × 2200 × 1800 (W×L×H)

Cavity Dimensions (mm)

Φ500 × 560 (Dia. × H)

Effective Heating Zone (mm)

Φ120 × 160 (Dia. × H),110X110X100 (W×L×H)

Maximum Temperature

1600

Temperature Measurement

Raytek IR pyrometer, 450 - 2250

Control System

PLC (15 sections of temperature control), embedded system connected to laptop via USB, with data storage printing functions.

Control Panel Display

8” touch-pad LCD or laptop optional

Temperature Control Precision

0.3% ± 1

Power Control Precision

< ± 2%

Vacuum Limit

< 100 Pa

Atmosphere Control

2 channels (optional)

Process Atmosphere

Air, oxygen, nitrogen, argon weak reductive atmosphere, etc.

Protection Safety

Anode over voltage, anode over current, anode power surpass, electromagnet watchdog, magnetron temperature, external interlock.

Microwave Leakage

< 2mW/cm2 (Safety standard < 5mW/cm2)

Cooling

Water, 0.8 - 2m3/h at pressure > 0.15MPa
