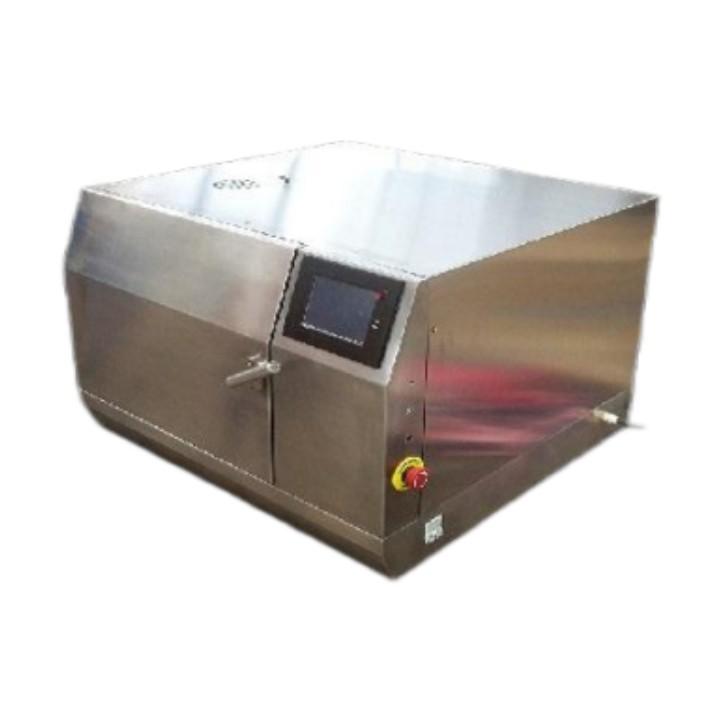

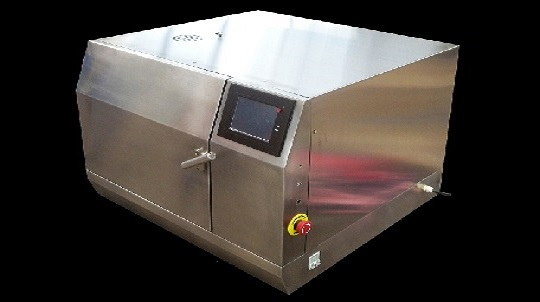

Lab 1600C High Temperature Microwave Sintering Furnace with Air Atmosphere System

1. Microwave heating.
2. Temperature up to 1600 degree.
3. Heating speed up to 50 degree per minute.
4. No pollution to material.

Description

HAMiLab-M1500 is our 3rd generation high temperature microwave laboratory system. HAMiLab-M1500 is a sophisticated upgrade to traditional muffle furnaces, with the high level of accuracy, control, speed that are customary in Synotherm systems. Drying, binder burn-out, synthesis sintering of powder solid materials, metals, glass can be completed in this system in a 3-4 hour period.  HAMiLab-M1500 was designed to increase the productivity of solid state laboratories from one set of samples to 3-4 sets of samples per day, without having to continuously run the system during periods of inactivity.

Application field:

- Claiming / synthesis of powder or particle materials:

- Electronic ceramic powders: barium titanate, barium-strontium titanate, strontium titanate, barium zirconate titanate;

- Lithium ion battery anode materials: lithium cobaltoxide, lithium manganate;

- Various colorants, glaze material, inorganic pastel;

- Alumina, magnesium oxide, zinc oxide, manganese dioxide, manganous-manganicoxide, zirconia, ammonium metavanadate, vanadium pentoxide, titanium dioxide, zinc carbonate, manganese carbonate, aluminum hydroxide, magnesium hydroxide, lithium cobaltoxide, zinc ferrite, Tri-chromatic rare earth fluorescent powder (Red), cement.

Synthesis / sintering of devices:

- Electronic ceramics: Piezoresistive element, thermistor, piezoceramics, microwave medium ceramics;

- Magnetic materials: hard magnetic, Ni-Zn, gyromagnet ferrites;

- Honeycomb ceramics, daily-use ceramics glass ware;

- Oxide ceramics refractory materials: alumina, zirconia, magnesium oxide other oxide composites;

- Incineration, cremation, scaling loss experiments

Technical specification:
